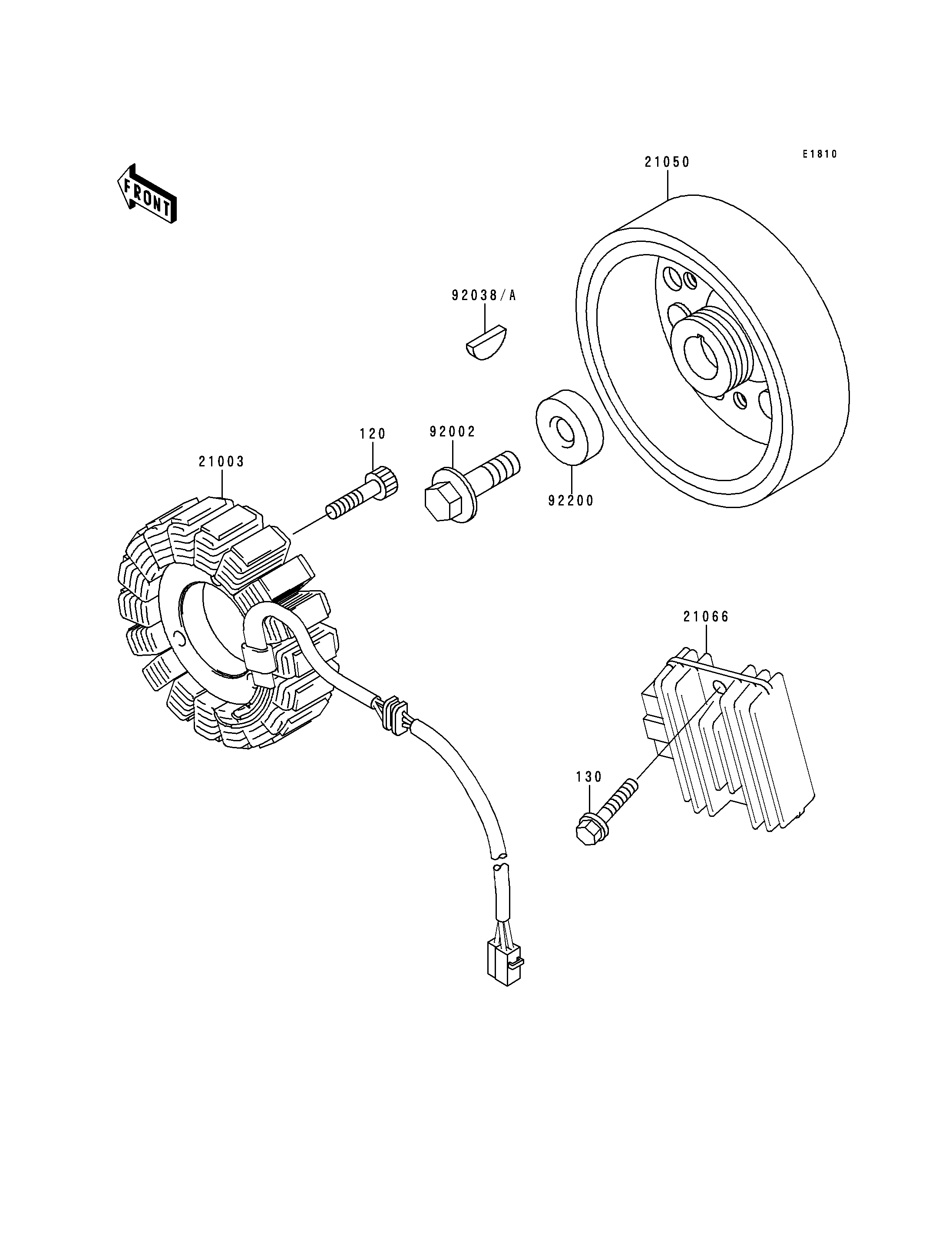

120
130
21003
21050
21066
92002
92038
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X25 120 120P0625 3
BOLT-FLANGED,6X25 130 130H0625 2
STATOR 21003 21003-1214 1
FLYWHEEL 21050 21050-1146 1
REGULATOR-VOLTAGE 21066 21066-1089 1
BOLT,FLANGED,10X40 92002 92002-1296 1
KEY,WOODRUFF 92038 92038-001 1
WASHER 92200 92200-1241 1
