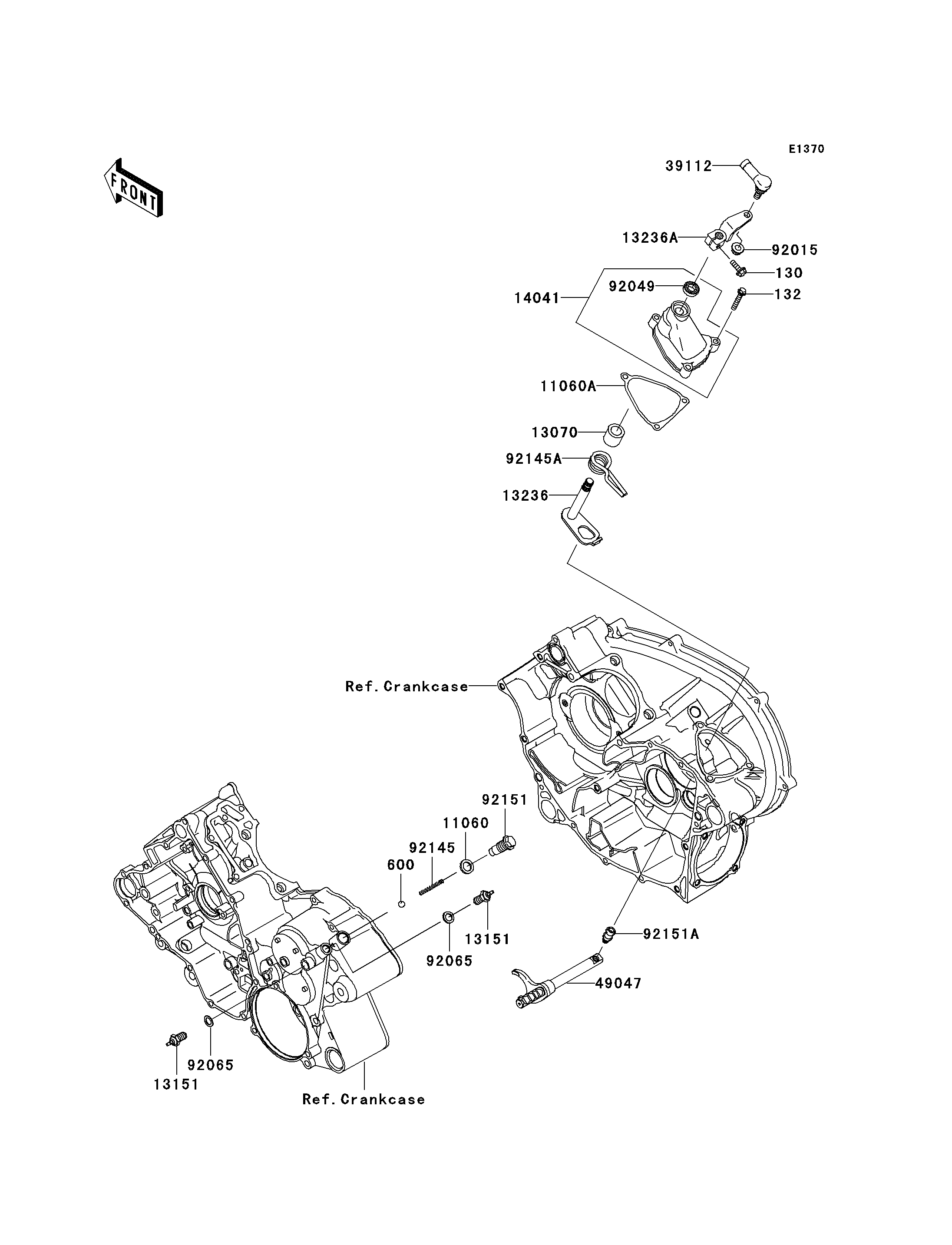

2006 Brute Force 650 4x4i - Gear Change Mechanism
130
132
600
11060
11060A
13070
13151
13151
13236
13236A
14041
39112
49047
92015
92049
92065
92065
92145
92145A
92151
92151A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X20 | 130 | 130CD0620 | 1 | ||
| BOLT-FLANGED-SMALL,6X30 | 132 | 132BD0630 | 3 | ||
| BALL-STEEL,5/16" | 600 | 600A1000 | 1 | ||
| GASKET,14X20X2 | 11060 | 11060-1287 | 1 | ||
| GASKET,CHANGE LEVER COVER | 11060A | 11060-1956 | 1 | ||
| GUIDE | 13070 | 13070-1352 | 1 | ||
| SWITCH-COMP,NEUTRAL | 13151 | 13151-1080 | 2 | ||
| LEVER-COMP,CHANGE | 13236 | 13236-0051 | 1 | ||
| LEVER-COMP,CHANGE LEVER | 13236A | 13236-1343 | 1 | ||
| COVER-COMP,CHANGE LEVER | 14041 | 14041-1136 | 1 | ||
| RODEND-TIE,CHANGE LEVER | 39112 | 39112-1080 | 1 | ||
| ROD-SHIFT | 49047 | 49047-1104 | 1 | ||
| NUT,8MM | 92015 | 92015-1432 | 1 | ||
| SEAL-OIL,TB12205.5 | 92049 | 92049-1271 | 1 | ||
| GASKET,10.5X16X1 | 92065 | 92065-058 | 2 | ||
| SPRING,CHANGE POSITION | 92145 | 92145-1297 | 1 | ||
| SPRING,CHANGE LEVER | 92145A | 92145-1299 | 1 | ||
| BOLT,CHANGE POSITION | 92151 | 92151-1687 | 1 | ||
| BOLT,SHIFT ROD | 92151A | 92151-1699 | 1 |
