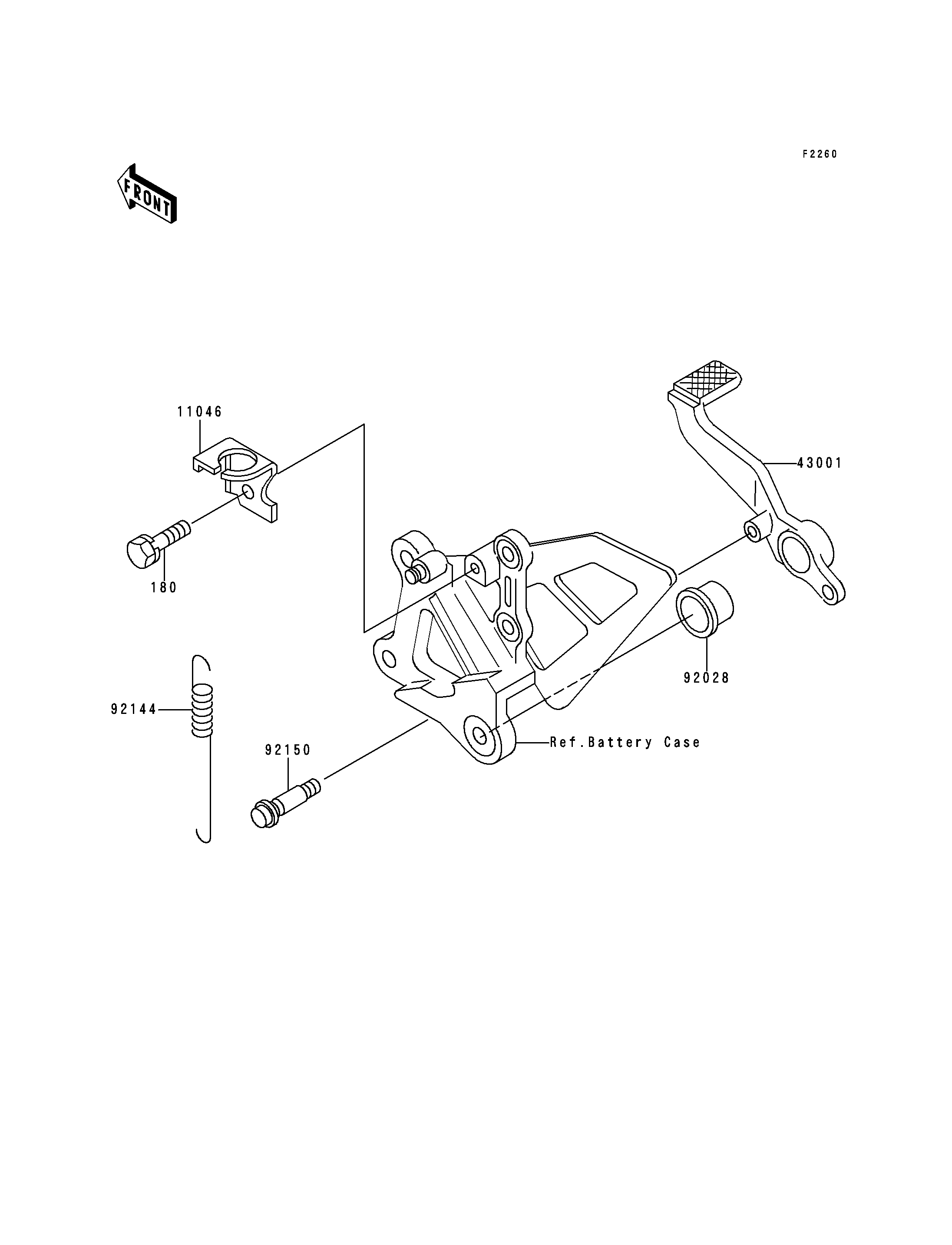

1995 Ninja® ZX-6R - Brake Pedal/Torque Link

180
11046
43001
92028
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180H0614 1
BRACKET,REAR BRAKE SWITCH 11046 11046-1252 1
LEVER-BRAKE,PEDAL 43001 43001-1274 1
BUSHING 92028 92028-1576 1
SPRING,BRAKE PEDAL RETURN 92144 92144-1421 1
BOLT 92150 92150-1439 1
