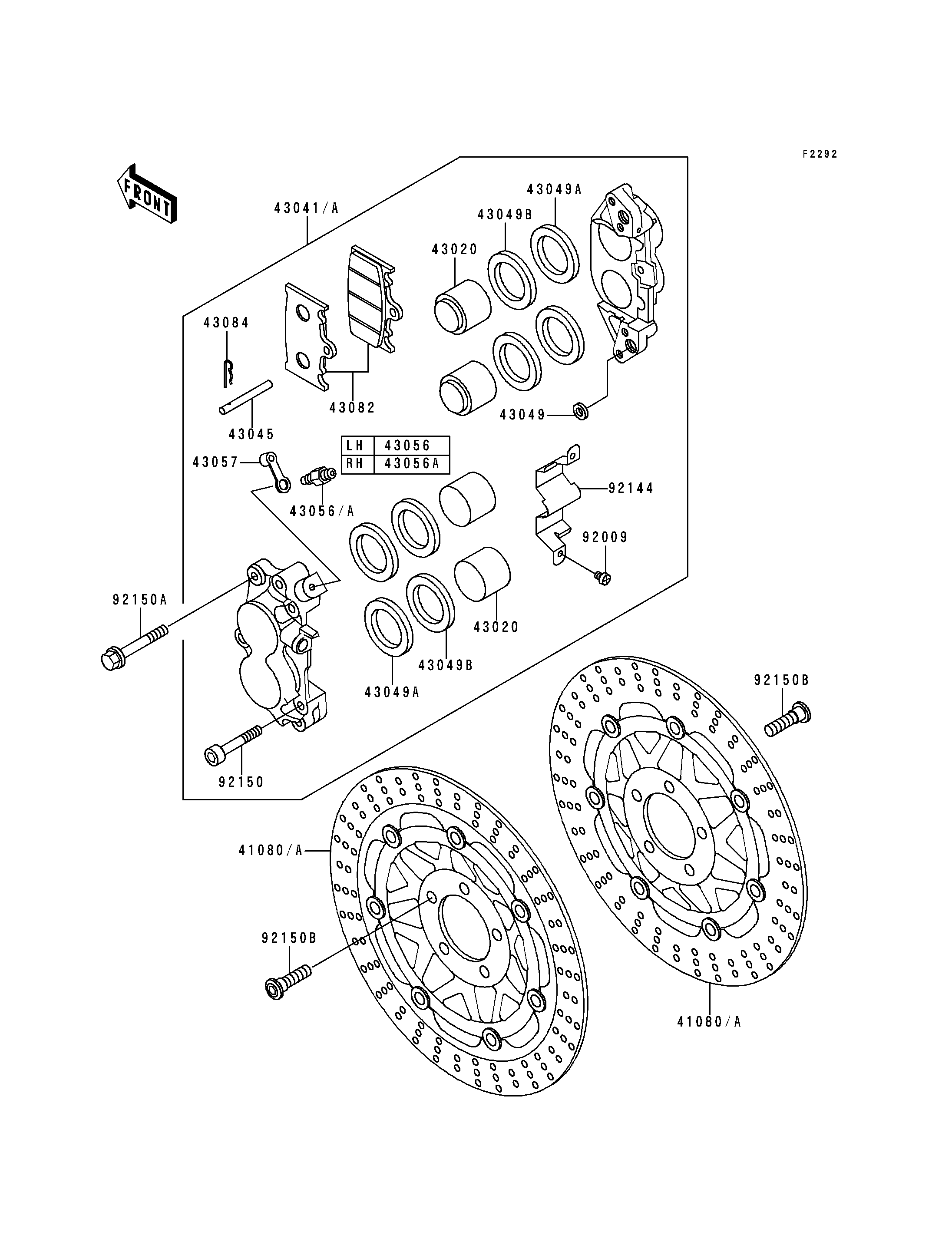

Parts Diagrams |
41080
41080
43020
43020
43041
43041A
43045
43049
43049A
43049A
43049B
43049B
43056
43056A
43057
43082
43084
92009
92144
92150
92150A
92150B
92150B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,FR,GRAY/SILVER | 41080 | 41080-1398-5C | 2 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1089 | 8 | ||
CALIPER-ASSY,FR,LH,M.F.GRAY | 43041 | 43041-1497-FE | 1 | ||
CALIPER-ASSY,FR,RH,M.F.GRAY | 43041A | 43041-1498-FE | 1 | ||
SHAFT-CALIPER | 43045 | 43045-007 | 2 | ||
PACKING,SEAL,6.5X11.5X2.2 | 43049 | 43049-1004 | 4 | ||
PACKING | 43049A | 43049-1067 | 8 | ||
PACKING | 43049B | 43049-1068 | 8 | ||
BREATHER | 43056 | 43056-003 | 1 | ||
BREATHER-BRAKE | 43056A | 43056-1054 | 1 | ||
CAP-BREATHER | 43057 | 43057-003 | 2 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1142 | 2 | ||
CLAMP,PAD | 43084 | 43084-003 | 2 | ||
SCREW,4X6 | 92009 | 92009-1569 | 4 | ||
SPRING | 92144 | 92144-1399 | 2 | ||
BOLT,SOCKET,8X40 | 92150 | 92150-1272 | 8 | ||
BOLT,FLANGED,10X38 | 92150A | 92150-1297 | 4 | ||
BOLT,DISC PLATE,8X30 | 92150B | 92150-1728 | 10 |
DISC,FR,GRAY/SILVER | |
REF # | 41080 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CALIPER-ASSY,FR,LH,M.F.GRAY | |
REF # | 43041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CALIPER-ASSY,FR,RH,M.F.GRAY | |
REF # | 43041A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,SEAL,6.5X11.5X2.2 | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PACKING | |
REF # | 43049A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PACKING | |
REF # | 43049B |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BREATHER | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE | |
REF # | 43082 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,PAD | |
REF # | 43084 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,4X6 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X40 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X38 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,DISC PLATE,8X30 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
