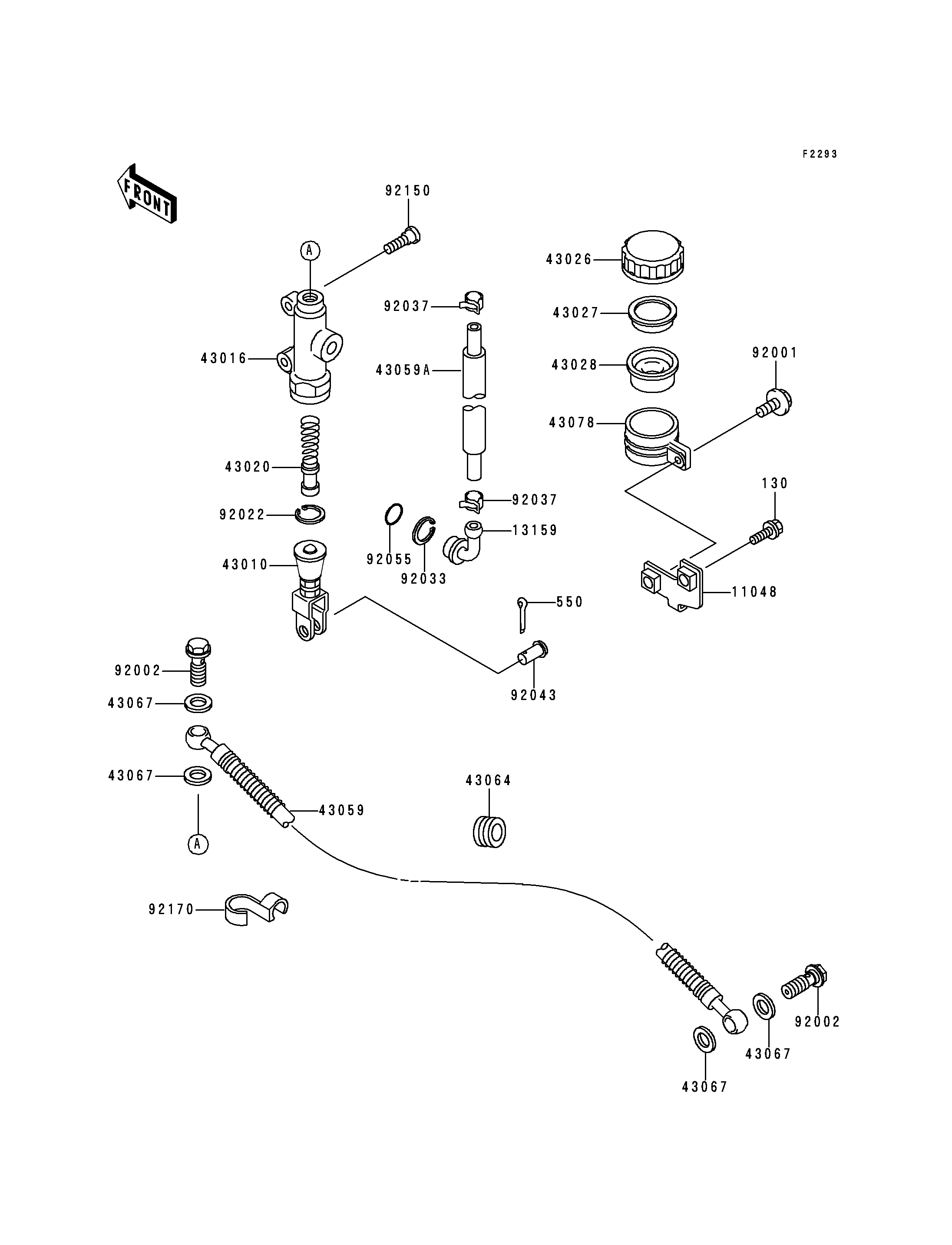

1997 Ninja® ZX™-6R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
550
11048
13159
43010
43016
43020
43026
43027
43028
43059
43059A
43064
43067
43067
43067
43067
43078
92001
92002
92002
92022
92033
92037
92037
92043
92055
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 1
PIN-COTTER,2.0X15 550 550D2015 1
BRACKET,RESERVOIR TANK,RR 11048 11048-1863 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
ROD-ASSY-BRAKE 43010 43010-1074 1
CYLINDER-MASTER 43016 43016-1154 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOSE-BRAKE,RR 43059 43059-1907 1
HOSE-BRAKE,RR MASTER CYLINDER 43059A 43059-1911 1
GROMMET,HOSE CLAMP 43064 43064-006 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
BOLT,W/P,6X16 92001 92001-1860 1
BOLT,OIL,L=23 92002 92002-1888 2
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,8X25 92150 92150-1837 2
CLAMP,HOSE 92170 92170-1097 1
