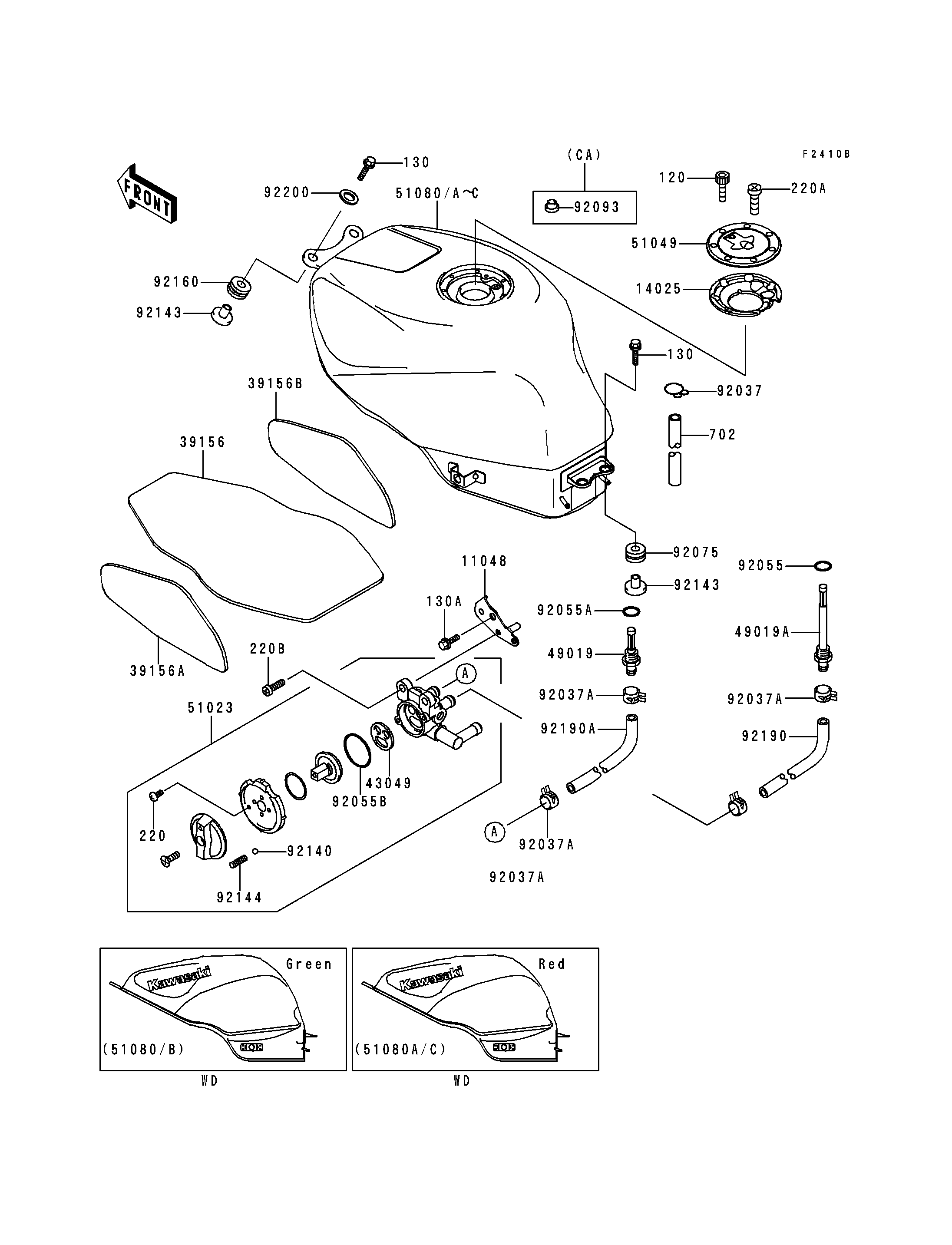

1997 Ninja® ZX™-6R - Fuel Tank(ZX600-F3)

DOWNLOAD PDF
SELECT A NEW PART
11048
11048
14025
14025
39156
39156
39156A
39156A
39156B
39156B
43049
43049
49019
49019
49019A
49019A
51023
51023
51049
51049
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
120
120
130
130
130
130
130A
130A
220
220
220A
220A
220B
220B
702
702
92055
92055
92055A
92055A
92055B
92055B
92075
92075
92140
92140
92143
92143
92143
92143
92144
92144
92160
92160
92190
92190
92190A
92190A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TAP 11048 11048-1940 1
COVER,TANK CAP 14025 14025-1913 1
PAD,FUEL TANK,CNT 39156 39156-1448 1
PAD,FUEL TANK,LH 39156A 39156-1479 1
PAD,FUEL TANK,RH 39156B 39156-1480 1
PACKING,TAP VALVE 43049 43049-1066 1
FILTER-FUEL 49019 49019-1070 1
FILTER-FUEL,"ON" 49019A 49019-1079 1
TAP-ASSY,FUEL 51023 51023-1217 1
CAP-TANK,FUEL 51049 51049-1091 1
CLAMP,TUBE 92037 92037-010 1
CLAMP 92037A 92037-1181 4
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X30,BLACK 130 130J0630 4
BOLT-FLANGED 130A 130J0812 1
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-PAN-CROS,6X8 220B 220C0608 2
TUBE-RUBBER,6X520 702 702A06520 1
RING-O,ID=9.5 92055 92055-1386 1
RING-O,11.5X1.5 92055A 92055-1387 1
RING-O,TAP LEVER 92055B 92055-1419 1
DAMPER 92075 92075-209 2
BALL,STAINLESS,5/32" 92140 92140-1051 1
COLLAR 92143 92143-1515 4
SPRING,FUEL TAP KNOB 92144 92144-1212 1
DAMPER 92160 92160-1162 2
TUBE,FUEL,"ON" 92190 92190-1586 1
TUBE,FUEL,"RES" 92190A 92190-1587 1
WASHER,6.5X22X1.6 92200 92200-1087 2
TANK-COMP-FUEL,L.GREEN 51080 51080-5373-7F 1
TANK-COMP-FUEL,C.P.RED 51080A 51080-5374-A5 1
TANK-COMP-FUEL,L.GREEN 51080B 51080-5379-7F 1
TANK-COMP-FUEL,C.P.RED 51080C 51080-5380-A5 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
