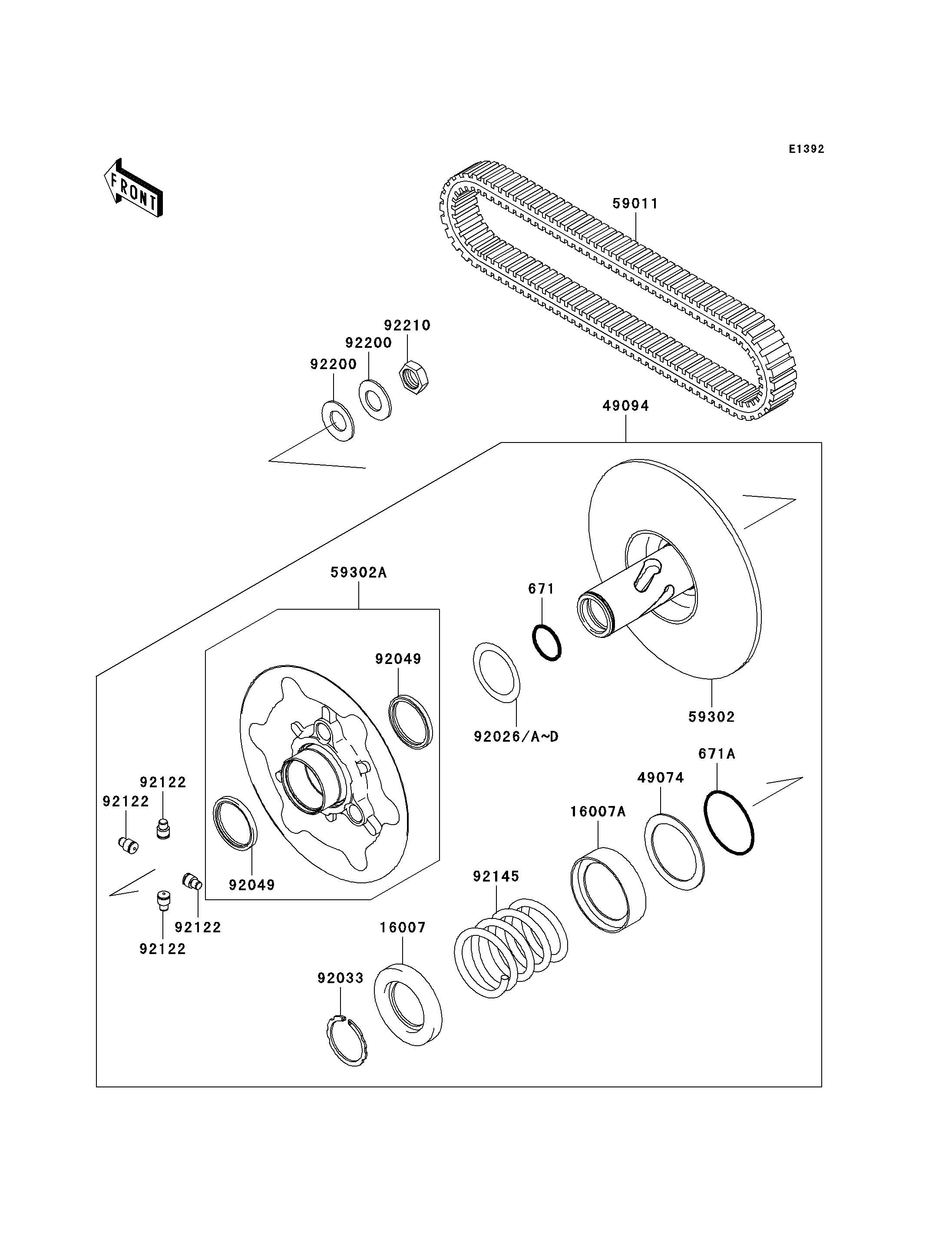

2006 Brute Force 650 4x4i - Driven Converter/Drive Belt

DOWNLOAD PDF
SELECT A NEW PART
671
671A
16007
16007A
49074
49094
59011
59302
59302A
92026
92026A
92026B
92026C
92026D
92033
92049
92049
92122
92122
92122
92122
92145
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 671 671D2530 1
O RING 671A 671D2550 1
SEAT-SPRING 16007 16007-1203 1
SEAT-SPRING,SHEAVE MOVABLE 16007A 16007-1221 1
PLATE-THRUST 49074 49074-1055 1
CONVERTER-ASSY-DRIVEN 49094 49094-0019 1
BELT 59011 59011-0003 1
SHEAVE-COMP,FIXED 59302 59302-0001 1
SHEAVE-COMP,MOVABLE 59302A 59302-0002 1
SPACER,T=0.30 92026 92026-0034 AR
SPACER,T=1.00 92026A 92026-1565 AR
SPACER,T=0.60 92026B 92026-1569 AR
SPACER,T=1.40 92026C 92026-1570 AR
SPACER,T=0.80 92026D 92026-1617 AR
RING-SNAP 92033 92033-1317 1
SEAL-OIL 92049 92049-1528 2
ROLLER 92122 92122-1209 4
SPRING,PURPLE 92145 92145-1499 1
WASHER 92200 92200-1505 2
NUT,18MM 92210 92210-1367 1
