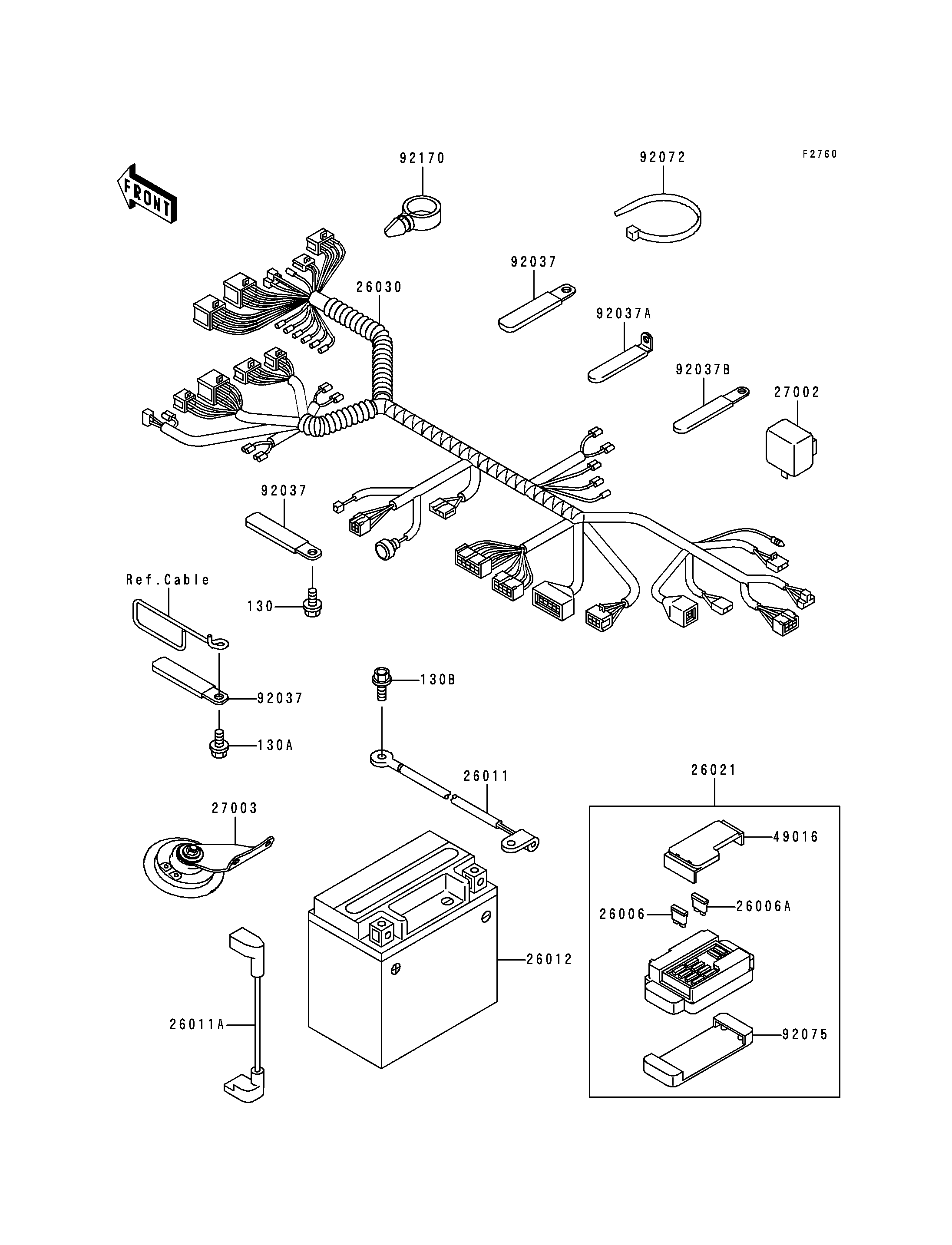

1995 Ninja® ZX™-6R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
26006
26006A
26011
26011A
26012
26021
26030
27002
27003
49016
92037
92037
92037
92037A
92037B
92072
92075
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130J0608 2
BOLT-FLANGED 130A 130J0612 1
BOLT-FLANGED,6X10 130B 130V0610 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
WIRE-LEAD,BATTERY(-) 26011 26011-1429 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1625 1
BATTERY,YTX12-BS,12V 10AH 26012 26012-1281 1
JUNCTION BOX 26021 26021-1089 1
HARNESS,MAIN 26030 26030-1311 1
RELAY-ASSY,SIGNAL LAMP 27002 27002-1092 1
HORN 27003 27003-1381 1
COVER-SEAL,FUSE 49016 49016-1177 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 4
CLAMP 92037A 92037-1679 1
CLAMP 92037B 92037-1993 1
BAND,L=185 92072 92072-1195 12
DAMPER,JUNCTION BOX 92075 92075-1688 1
CLAMP 92170 92170-1067 2
