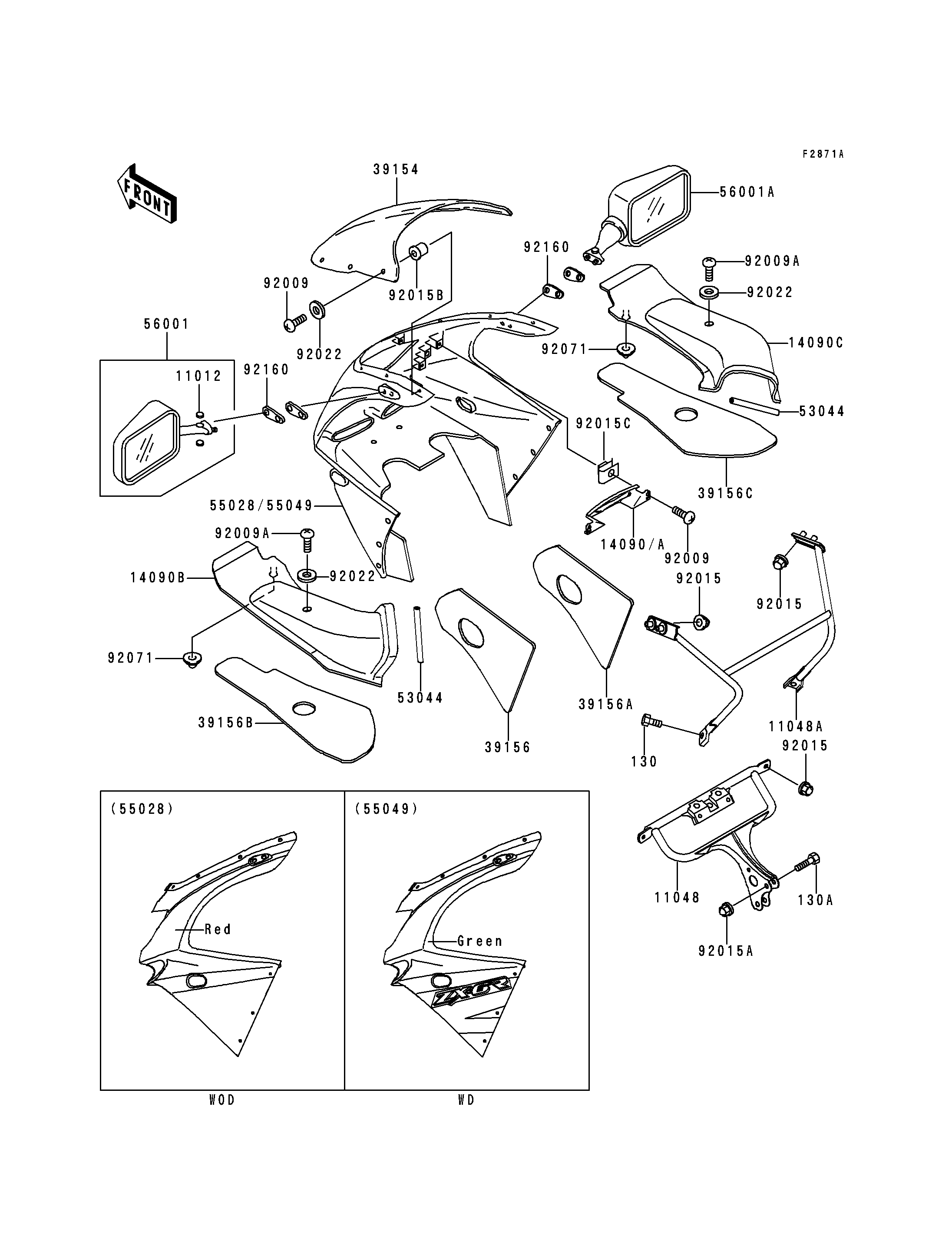

1996 Ninja® ZX™-6R - Cowling(ZX600-F2)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11012
11048
11048A
14090
14090A
14090B
14090C
39154
39156
39156A
39156B
39156C
53044
53044
55028
55049
56001
56001A
92009
92009
92009A
92009A
92015
92015
92015
92015A
92015B
92015C
92022
92022
92022
92071
92071
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 2
BOLT-FLANGED,8X30 130A 130J0830 2
CAP,MIRROR 11012 11012-1818 4
BRACKET,UPP COWLING 11048 11048-1866 1
BRACKET,MIRROR 11048A 11048-1867 1
COVER,POSITION LAMP,F.RED 14090 14090-1404-B1 1
COVER,POSITION LAMP,L.GREEN 14090A 14090-1404-7F 1
COVER,AIR DUCT,LH 14090B 14090-1542 1
COVER,AIR DUCT,RH 14090C 14090-1543 1
WINDSHIELD 39154 39154-5007 1
PAD,UPP COWLING,LH 39156 39156-1435 1
PAD,UPP COWLING,RH 39156A 39156-1436 1
PAD,AIR DUCT COVER,LH 39156B 39156-1449 1
PAD,AIR DUCT COVER,RH 39156C 39156-1450 1
TRIM,AIR DUCT COVER 53044 53044-1265 2
COWLING,UPP,F.RED 55028 55028-1330-B1 1
COWLING.,UPP,L.GREEN 55049 55049-5464-7F 1
MIRROR-ASSY,LH,EBONY 56001 56001-1376-6C 1
MIRROR-ASSY,RH,EBONY 56001A 56001-1377-6C 1
SCREW,5X16 92009 92009-1654 10
SCREW,5X25 92009A 92009-1657 2
NUT,CAP,6MM,BLACK 92015 92015-1170 6
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,WELL,5MM 92015B 92015-1757 10
NUT,5MM 92015C 92015-1798 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 10
GROMMET 92071 92071-1222 2
DAMPER,MIRROR 92160 92160-1089 4
