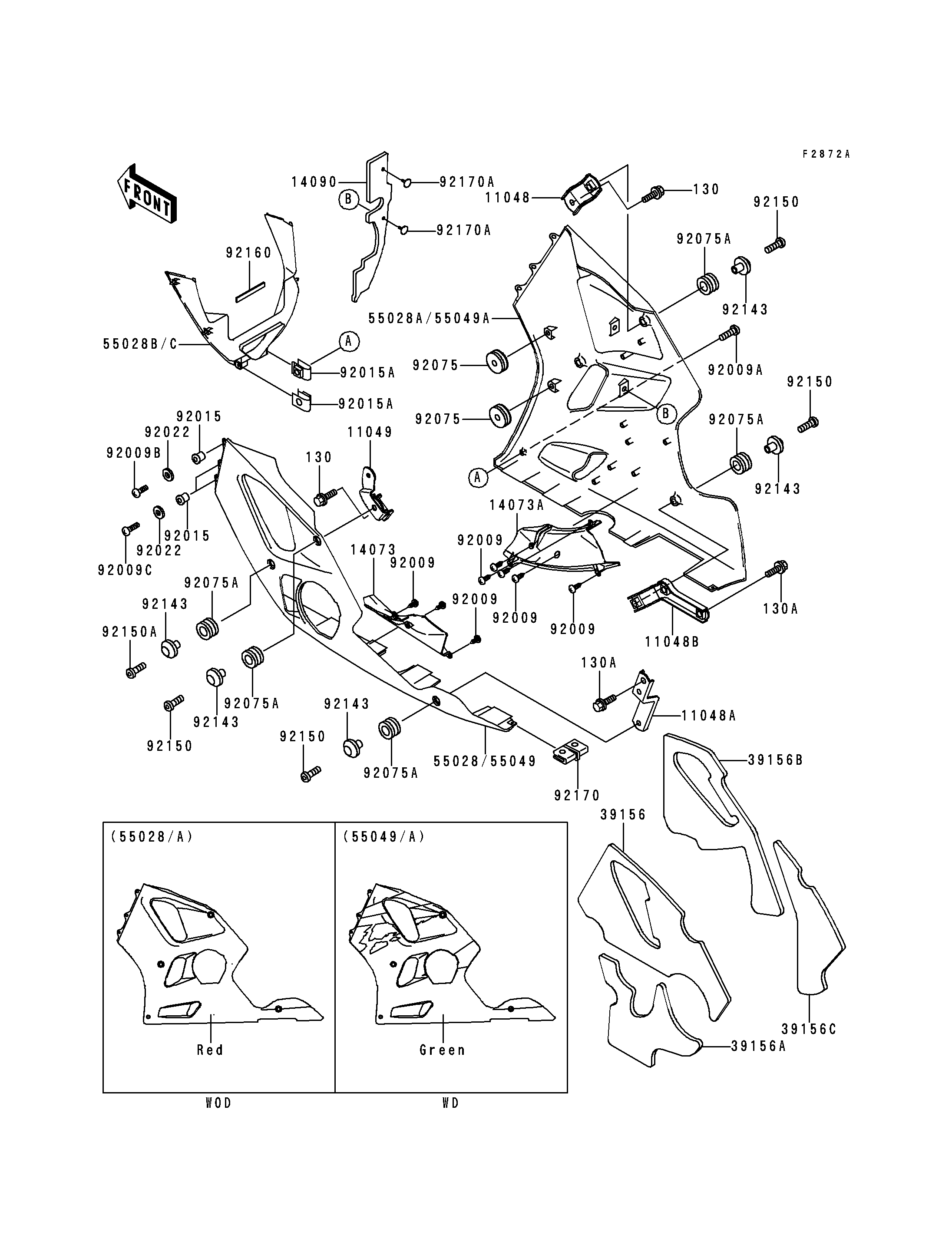

1996 Ninja® ZX™-6R - Cowling Lowers(ZX600-F2)
11048
11048
11048A
11048A
11048B
11048B
11049
11049
14073
14073
14073A
14073A
14090
14090
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55049
55049
55049A
55049A
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92009C
92009C
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
130
130
130
130
130A
130A
130A
130A
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92150A
92150A
92160
92160
92170
92170
92170A
92170A
92170A
92170A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWLING,UPP | 11048 | 11048-1868 | 1 | ||
| BRACKET,LWR COWLING,LH,LWR | 11048A | 11048-1869 | 1 | ||
| BRACKET,LWR COWLING,RH,LWR | 11048B | 11048-1870 | 1 | ||
| BRACKET,RESERVOIR TANK | 11049 | 11049-1274 | 1 | ||
| DUCT,AIR,LH | 14073 | 14073-1631 | 1 | ||
| DUCT,AIR,RH | 14073A | 14073-1632 | 1 | ||
| COVER,LWR COWLING,RH | 14090 | 14090-1602 | 1 | ||
| PAD,LWR COWLING,LH,UPP | 39156 | 39156-1437 | 1 | ||
| PAD,LWR COWLING,LH,LWR | 39156A | 39156-1438 | 1 | ||
| PAD,LWR COWLING,RH,FR | 39156B | 39156-1439 | 1 | ||
| PAD,LWR COWLING,RH,RR | 39156C | 39156-1440 | 1 | ||
| COWLING,LWR,LH,F.RED | 55028 | 55028-1331-B1 | 1 | ||
| COWLING,LWR,RH,F.RED | 55028A | 55028-1332-B1 | 1 | ||
| COWLING,LWR,FR,F.RED | 55028B | 55028-1333-B1 | 1 | ||
| COWLING,LWR,FR,L.GREEN | 55028C | 55028-1333-7F | 1 | ||
| COWLING.,LWR,LH,L.GREEN | 55049 | 55049-5465-7F | 1 | ||
| COWLING.,LWR,RH,L.GREEN | 55049A | 55049-5466-7F | 1 | ||
| SCREW,TAPPING,5X10 | 92009 | 92009-1332 | 10 | ||
| SCREW,5X16 | 92009A | 92009-1654 | 2 | ||
| SCREW,5X20 | 92009B | 92009-1656 | 2 | ||
| SCREW,5X25 | 92009C | 92009-1657 | 4 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 6 | ||
| NUT,5MM | 92015A | 92015-1798 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 6 | ||
| BOLT-FLANGED,6X10 | 130 | 130V0610 | 2 | ||
| BOLT-FLANGED,6X14 | 130A | 130V0614 | 4 | ||
| DAMPER | 92075 | 92075-1067 | 4 | ||
| DAMPER | 92075A | 92075-1634 | 6 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 4 | ||
| BOLT,SOCKET,6X30 | 92150A | 92150-1554 | 2 | ||
| DAMPER | 92160 | 92160-1632 | 1 | ||
| CLAMP | 92170 | 92170-1230 | 1 | ||
| CLAMP | 92170A | 92170-1442 | 2 |
