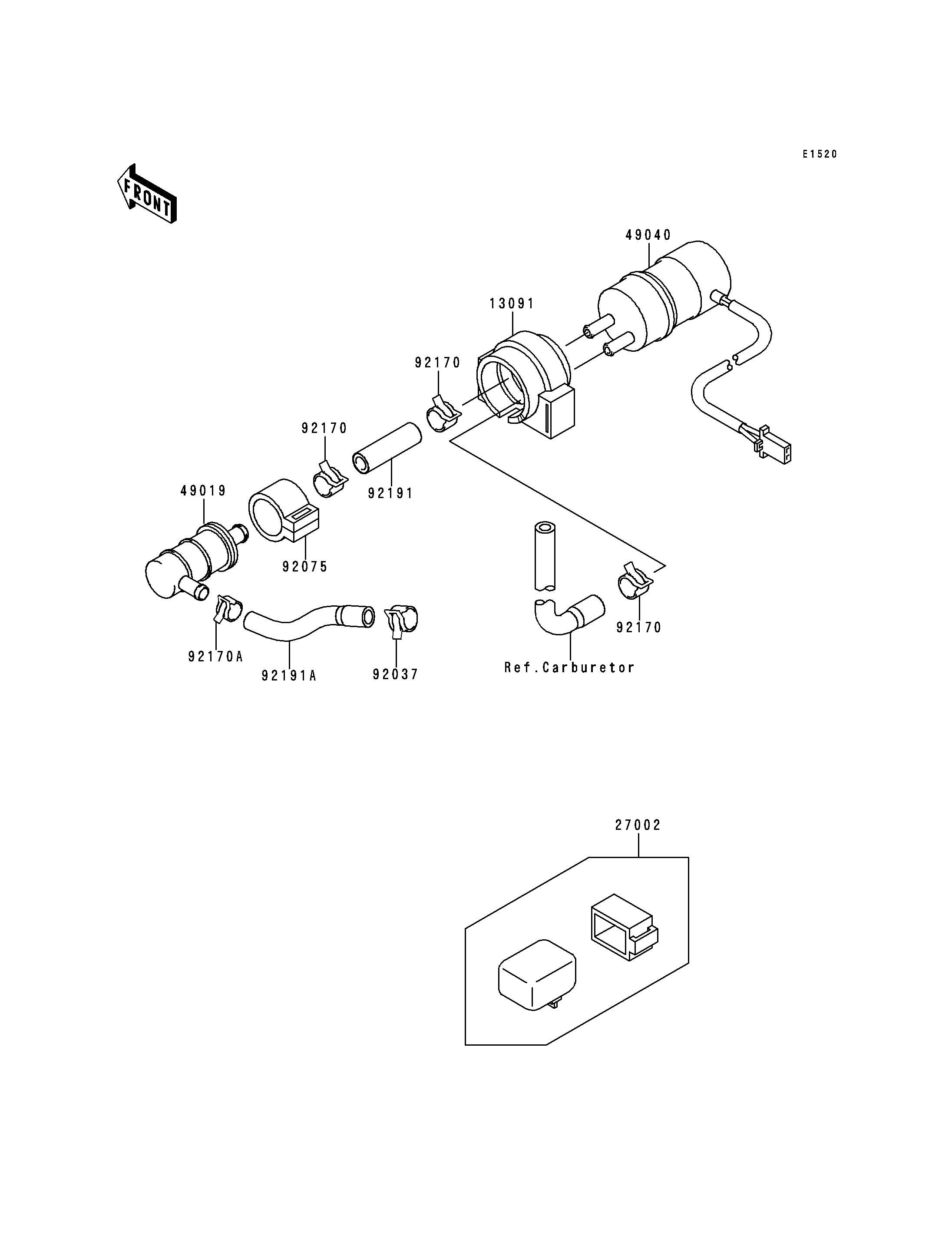

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1512 1
RELAY-ASSY 27002 27002-1065 1
FILTER-FUEL 49019 49019-1081 1
PUMP-FUEL 49040 49040-1061 1
CLAMP 92037 92037-2082 1
DAMPER,FUEL FILTER 92075 92075-1853 1
CLAMP 92170 92170-1118 3
CLAMP 92170A 92170-1492 1
TUBE,PUMP-FILTER 92191 92191-1174 1
TUBE,TAP-FILTER 92191A 92191-1229 1
