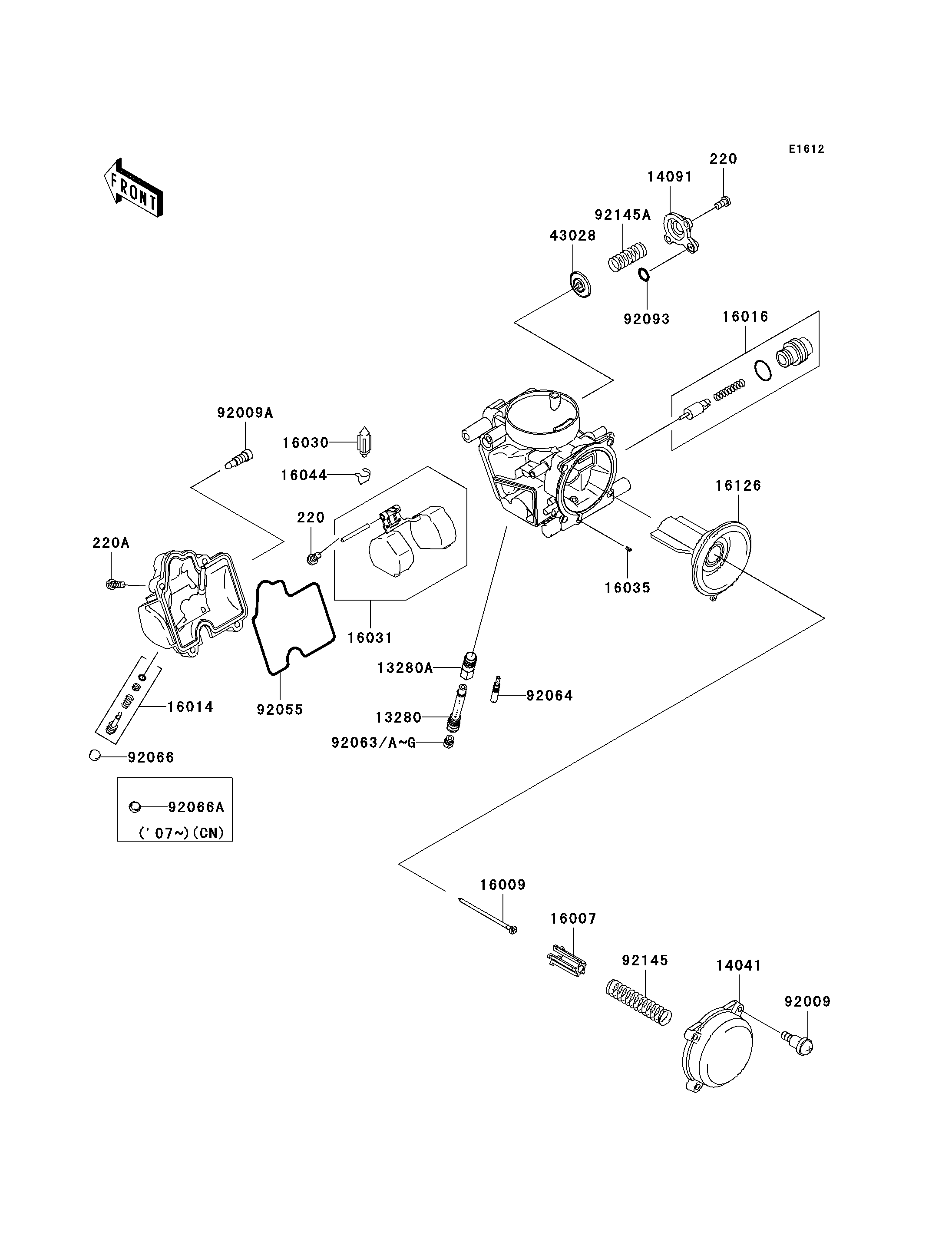

2006 Brute Force 650 4x4i - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
220
220
220
13280
13280
13280A
13280A
14041
14041
14091
14091
16007
16007
16009
16009
16014
16014
16016
16016
16030
16030
16031
16031
16035
16035
16044
16044
16126
16126
43028
43028
92009
92009
92009A
92009A
92055
92055
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
92063F
92063F
92063G
92063G
92064
92064
92093
92093
92145
92145
92145A
92145A
220A
220A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X8 220 220AA0408 6
HOLDER 13280 13280-0185 2
HOLDER,JET 13280A 13280-1096 2
CAP-CHAMBER,MIXING 14041 14041-1091 2
COVER,AIR CUT VALVE 14091 14091-1246 2
SEAT-SPRING,VALVE 16007 16007-1117 2
NEEDLE-JET,N60N 16009 16009-1544 2
SCREW-PILOT AIR 16014 16014-1101 2
PLUNGER 16016 16016-1117 2
VALVE-FLOAT 16030 16030-1007 2
FLOAT 16031 16031-1097 2
JET-AIR,LEAK 16035 16035-1055 2
CLAMP,FLOAT VALVE 16044 16044-007 2
VALVE 16126 16126-0015 2
DIAPHRAGM,AIR CUT VALVE 43028 43028-1085 2
SCREW,4X4.4 92009 92009-1549 8
SCREW,DRAIN,6X0.75 92009A 92009-1551 2
RING-O,FLOAT CHAMBER 92055 92055-1589 2
JET-MAIN,#138 92063 92063-1015 AR (OPTION)
JET-MAIN,#142 92063A 92063-1016 AR (OPTION)
JET-MAIN,#148 92063B 92063-1324 AR (OPTION)
JET-MAIN,#150 92063C 92063-1330 AR (OPTION)
JET-MAIN,#152 92063D 92063-1331 AR (OPTION)
JET-MAIN,#155 92063E 92063-1332 2
JET-MAIN,#158 92063F 92063-1344 AR (OPTION)
JET-MAIN,#160 92063G 92063-1345 AR (OPTION)
JET-PILOT,#38 92064 92064-0011 2
SEAL,"U"RING 92093 92093-1046 2
SPRING 92145 92145-0267 2
SPRING,AIR CUT VALVE 92145A 92145-1450 2
SCREW-PAN-CROS,4X14 220A 220AA0414 8
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 2 US
