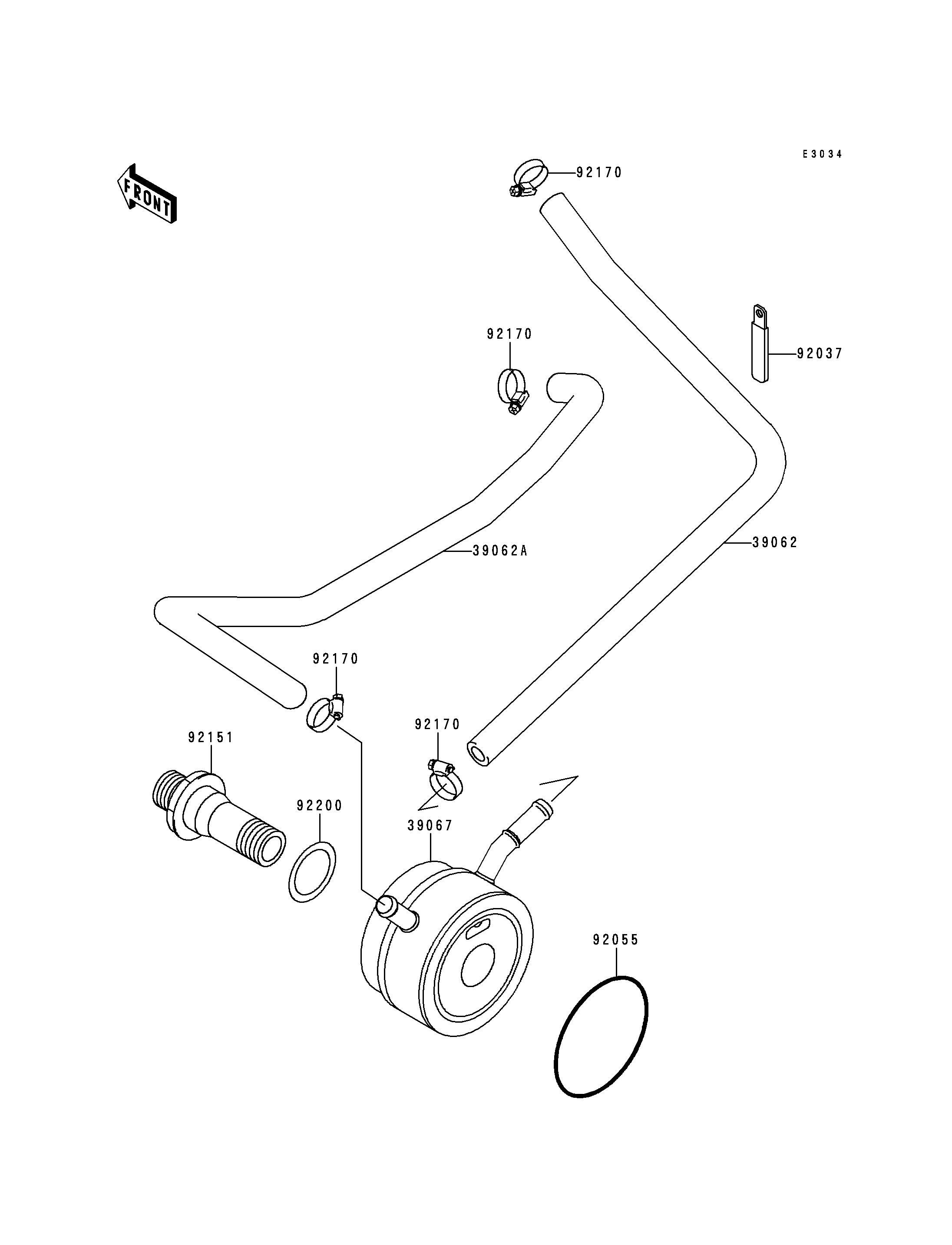

39062
39062A
39067
92037
92055
92151
92170
92170
92170
92170
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOSE-COOLING,COOLER-RADIATOR 39062 39062-1748 1
HOSE-COOLING,COOLER-CYLINDER 39062A 39062-1749 1
COOLER-OIL 39067 39067-1066 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 1
RING-O,OIL COOLER 92055 92055-1581 1
BOLT,OIL COOLER 92151 92151-1366 1
CLAMP,COOLING HOSE 92170 92170-1287 4
WASHER,OIL COOLER 92200 92200-1379 1
