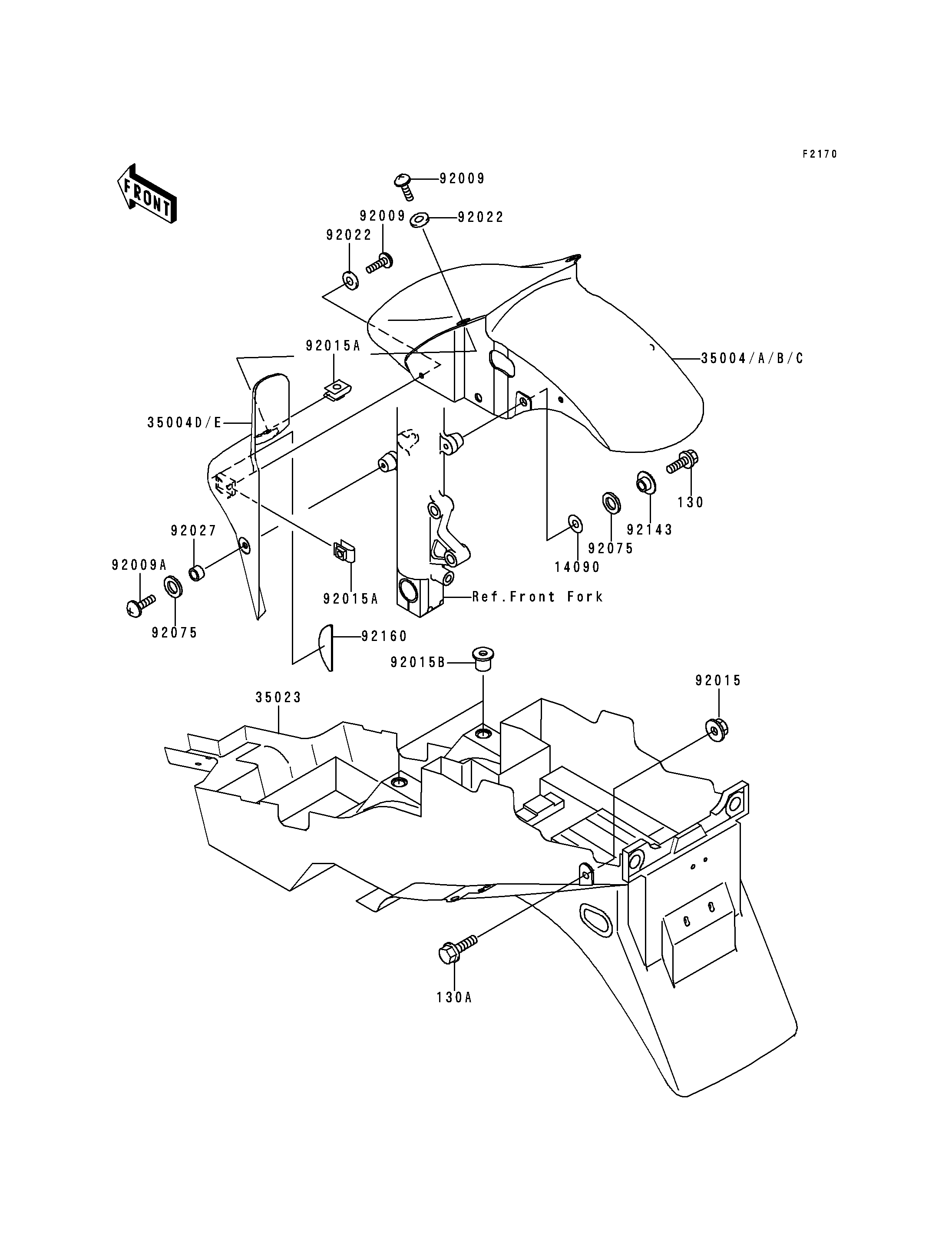

1999 Ninja® ZX™-6R - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
130A
14090
35004B
35004C
35004D
35004E
35023
92009
92009
92009A
92015
92015A
92015A
92015B
92022
92022
92027
92075
92075
92143
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130H0616 4
BOLT-FLANGED 130A 130J0620 4
COVER 14090 14090-1505 4
FENDER-FRONT,CNT,BLACK MICA 35004B 35004-1367-20 1
FENDER-FRONT,CNT,L.GREEN 35004C 35004-1367-7F 1
FENDER-FRONT,SIDE,LH,GRAY 35004D 35004-1390-E4 1
FENDER-FRONT,SIDE,RH,GRAY 35004E 35004-1391-E4 1
FENDER-REAR 35023 35023-1482 1
SCREW,5X16 92009 92009-1654 4
SCREW,6X14 92009A 92009-1662 2
NUT,6MM 92015 92015-1321 2
NUT,5MM 92015A 92015-1573 4
NUT 92015B 92015-1700 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 4
COLLAR,6.8X10X6 92027 92027-103 2
DAMPER 92075 92075-1564 6
COLLAR,L=7.4 92143 92143-1019 4
DAMPER 92160 92160-1961 2
FENDER-FRONT,CNT,F.RED 35004 35004-1367-B1 1
