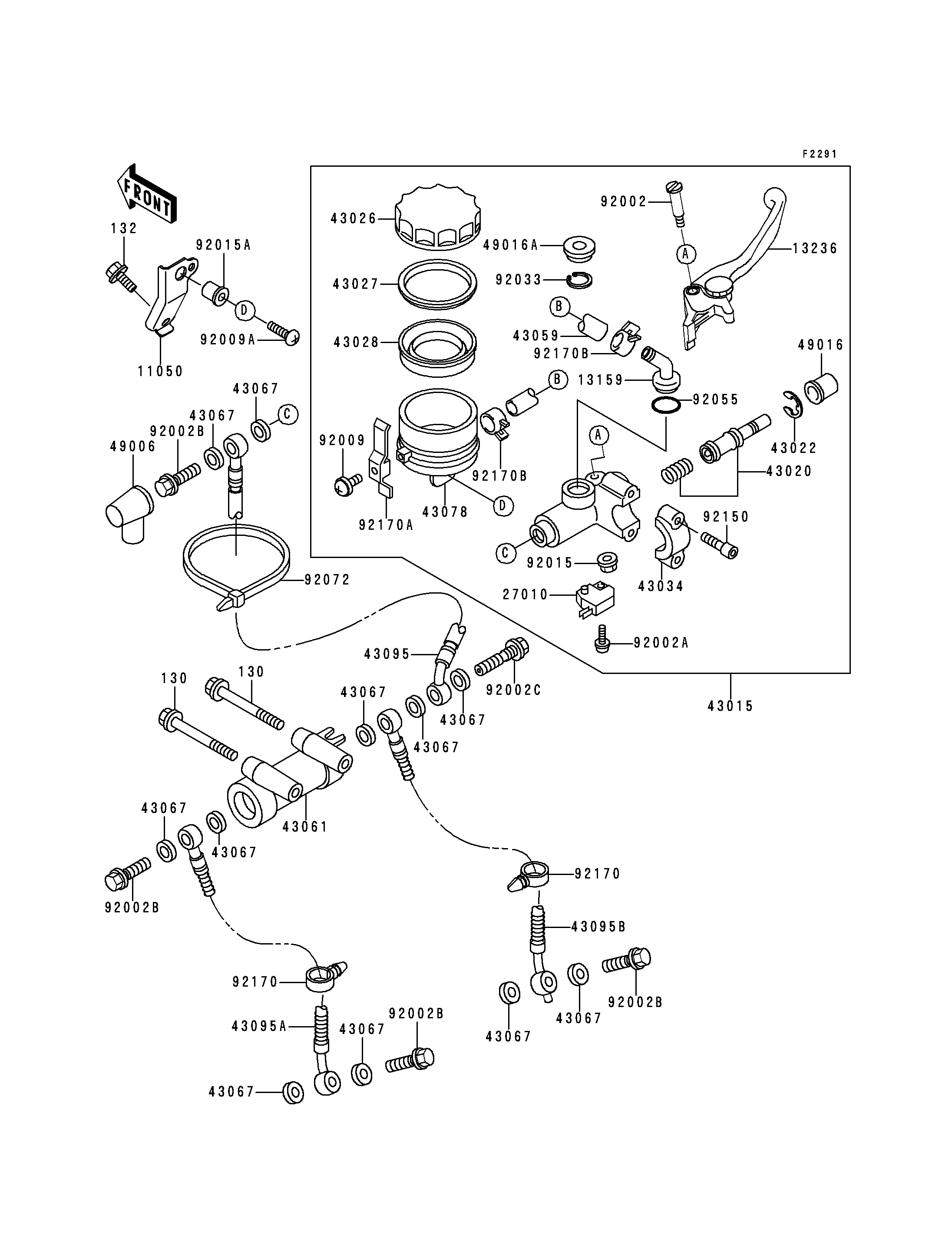

1999 Ninja® ZX™-6R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
11050
13159
13236
27010
43015
43020
43022
43026
43027
43028
43034
43059
43061
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
43078
43095
43095A
43095B
49006
49016
49016A
92002
92002A
92002B
92002B
92002B
92002B
92002C
92009
92009A
92015
92015A
92033
92055
92072
92150
92170
92170
92170A
92170B
92170B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X60 130 130J0660 2
BOLT-FLANGED-SMALL 132 132J0612 1
BRACKET,RESERVE TANK CAP 11050 11050-1767 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-1326 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1633 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR MASTER CYLINDER 43059 43059-1696 1
JOINT-BRAKE 43061 43061-1004 1
WASHER,10.5X15X1.5 43067 43067-001 11
RESERVOIR 43078 43078-1099 1
HOSE-BRAKE,FR,UPP 43095 43095-1092 1
HOSE-BRAKE,FR,LWR,LH 43095A 43095-1093 1
HOSE-BRAKE,FR,LWR,RH 43095B 43095-1094 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
COVER-SEAL 49016A 49016-1147 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
BOLT,OIL,L=23 92002B 92002-1888 4
BOLT,OIL,L=37 92002C 92002-1909 1
SCREW 92009 92009-1570 1
SCREW,5X18 92009A 92009-1655 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
NUT,WELL,5MM 92015A 92015-1757 1
RING-SNAP,20.5MM 92033 92033-1186 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BAND,L=250 92072 92072-1237 1
BOLT 92150 92150-1328 2
CLAMP 92170 92170-1067 2
CLAMP 92170A 92170-1090 1
CLAMP,HOSE 92170B 92170-1091 2
