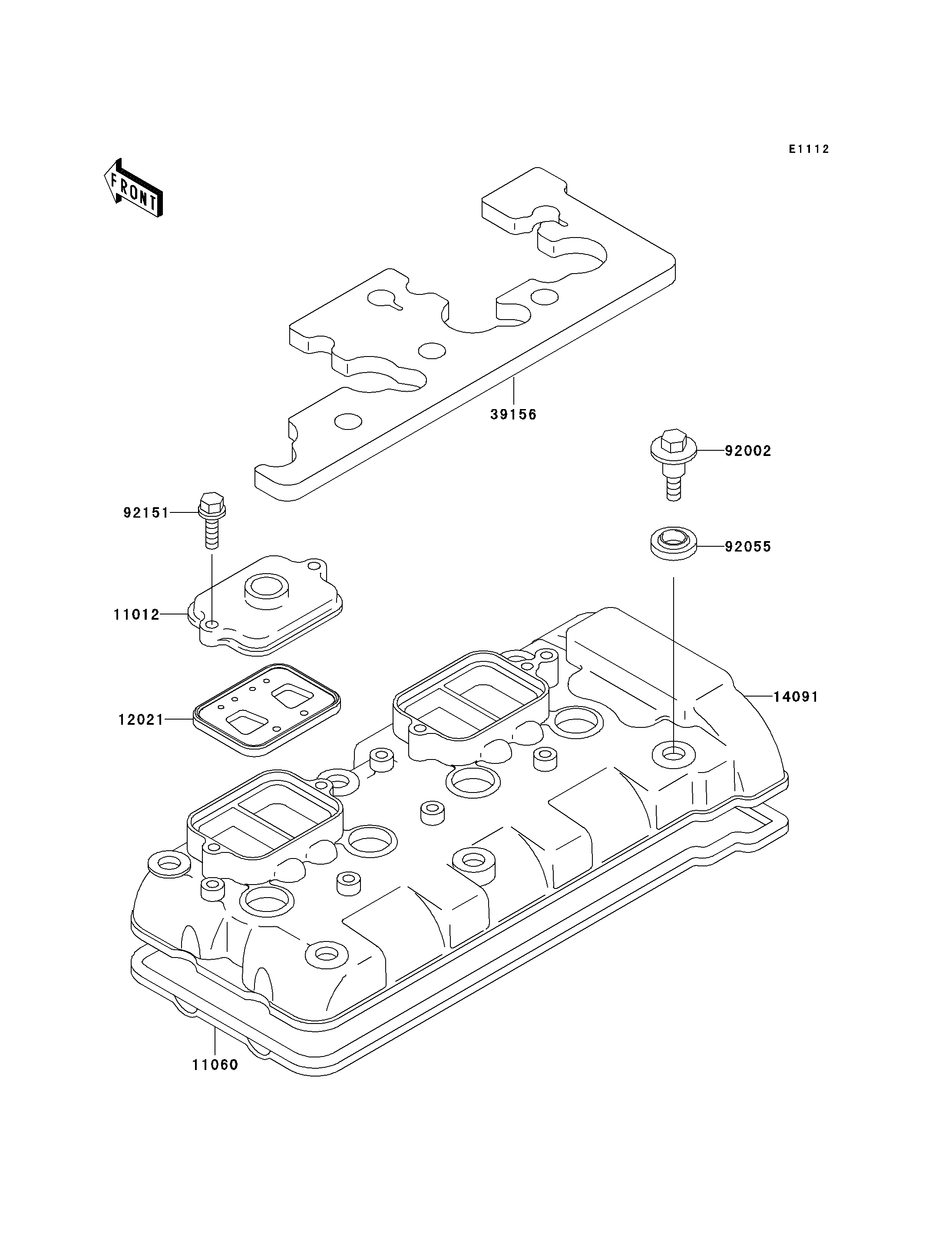

11012
11060
12021
14091
39156
92002
92055
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,REED VALVE 11012 11012-1758 2
GASKET,HEAD COVER 11060 11060-1667 1
VALVE-ASSY-REED 12021 12021-1119 2
COVER,CYLINDER HEAD 14091 14091-1140 1
PAD 39156 39156-1455 1
BOLT,L=20.5 92002 92002-1327 6
RING-O,HEAD COVER BOLT 92055 92055-1352 6
BOLT,6X20 92151 92151-1407 4
