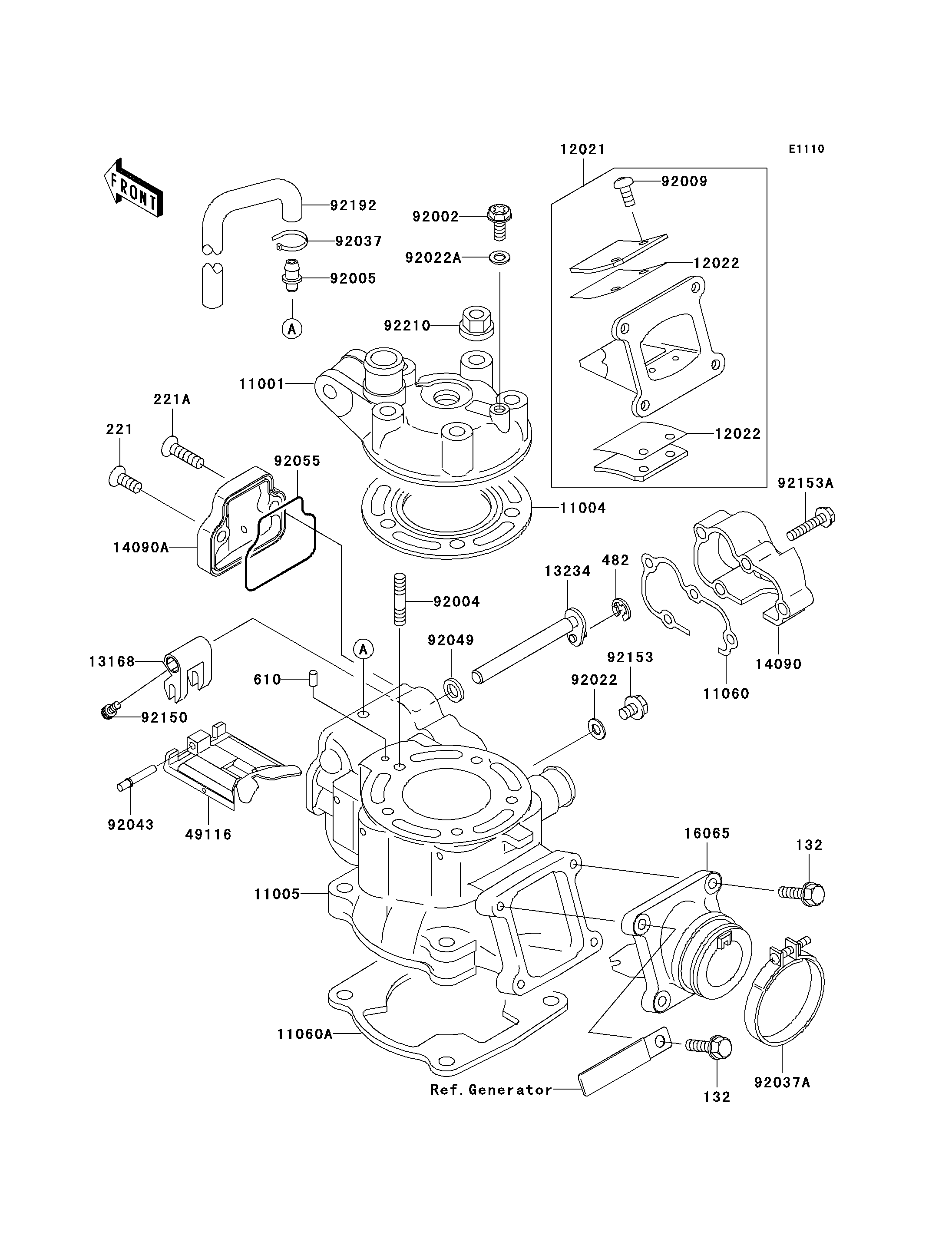

2007 KX85 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
132
221
221A
482
610
11001
11004
11005
11060
11060A
12021
12022
12022
13168
13234
14090
14090A
16065
49116
92002
92004
92005
92009
92022
92022A
92037
92037A
92043
92049
92055
92150
92153
92153A
92192
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132BC0620 4
SCREW-CSK-CROS,6X16 221 221AA0616 1
SCREW-CSK-CROS,6X20 221A 221AA0620 1
CIRCLIP-TYPE-E 482 482J5000 1
ROLLER,4X8 610 610A0408 1
HEAD-CYLINDER 11001 11001-1539 1
GASKET-HEAD 11004 11004-1360 1
CYLINDER-ENGINE 11005 11005-0052 1
GASKET,GOVERNOR COVER 11060 11060-1778 1
GASKET,CYLINDER BASE 11060A 11060-1779 1
VALVE-ASSY-REED 12021 12021-1123 1
VALVE-REED 12022 12022-1084 2
LEVER,MAIN VALVE 13168 13168-1499 1
SHAFT-COMP 13234 13234-1105 1
COVER 14090 14090-1811 1
COVER 14090A 14090-1812 1
HOLDER-CARBURETOR 16065 16065-1372 1
VALVE-ASSY 49116 49116-1181 1
BOLT,6X10 92002 92002-1222 1
STUD,8X33 92004 92004-1253 5
FITTING 92005 92005-0050 1
SCREW,REED VALVE 92009 92009-1014 4
WASHER,6.1X12X1 92022 92022-077 1
WASHER,6.2X11X1 92022A 92022-304 1
CLAMP 92037 92037-1173 1
CLAMP 92037A 92037-1843 1
PIN,MAIN VALVE 92043 92043-1470 1
SEAL-OIL,SD088144 92049 92049-1238 1
RING-O 92055 92055-1566 1
BOLT,SOCKET,4X8 92150 92150-1888 1
BOLT,FLANGED,M6X8 92153 92153-1005 1
BOLT,FLANGED,M5X25 92153A 92153-1006 4
TUBE,L=426.3 92192 92192-0265 1
NUT,8MM 92210 92210-0076 5
