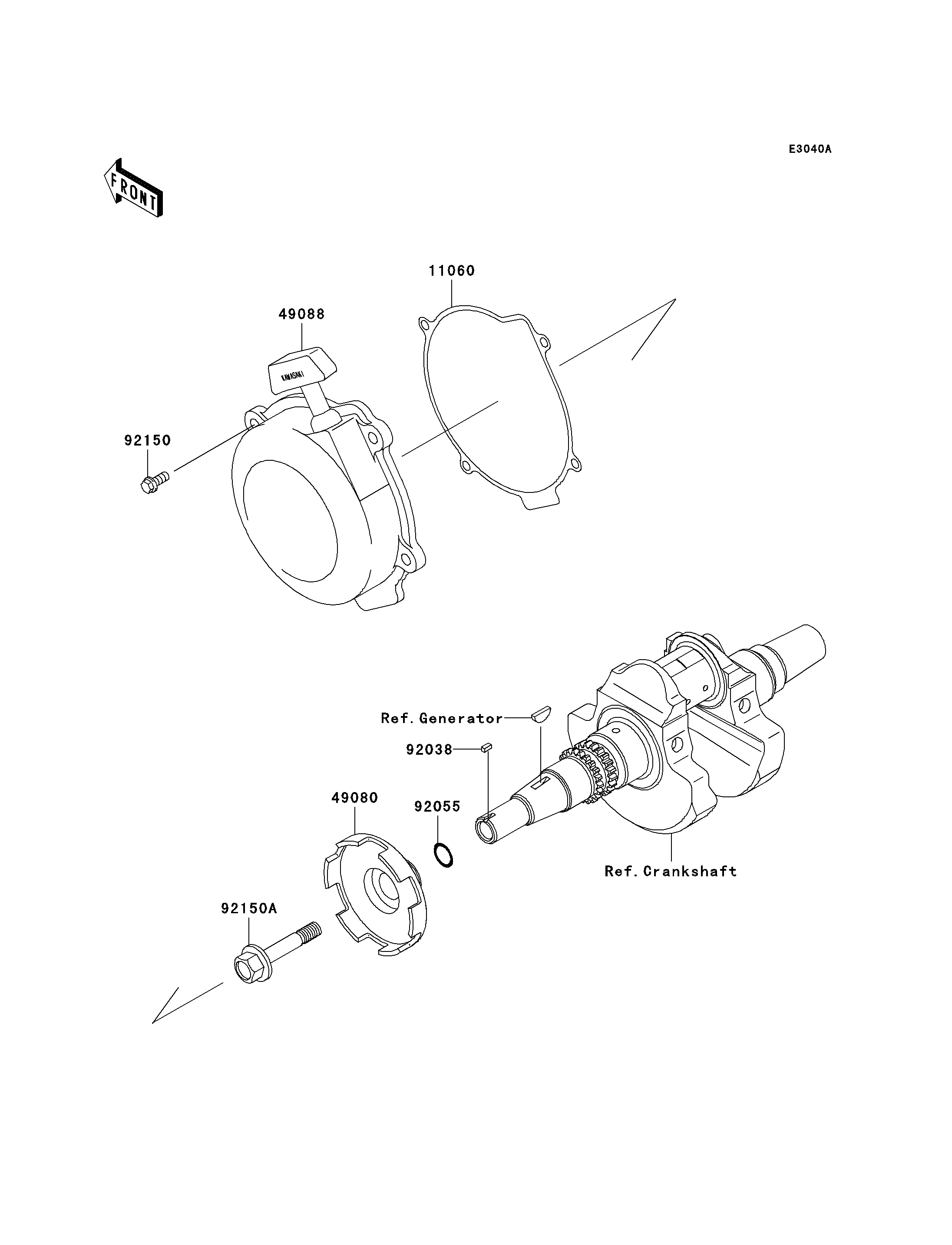

2009 Brute Force® 650 4x4i - Recoil Starter(VF650AE640352-)

11060
49080
49088
92038
92055
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,BLANK 11060 11060-1717 1
PULLEY-STARTING 49080 49080-1057 1
STARTER-RECOIL 49088 49088-1056 1
KEY,SUNK 92038 92038-1051 1
RING-O,19.8X2.2 92055 92055-1215 1
BOLT,6X14 92150 92150-1916 4
BOLT,12X65 92150A 92150-1987 1
