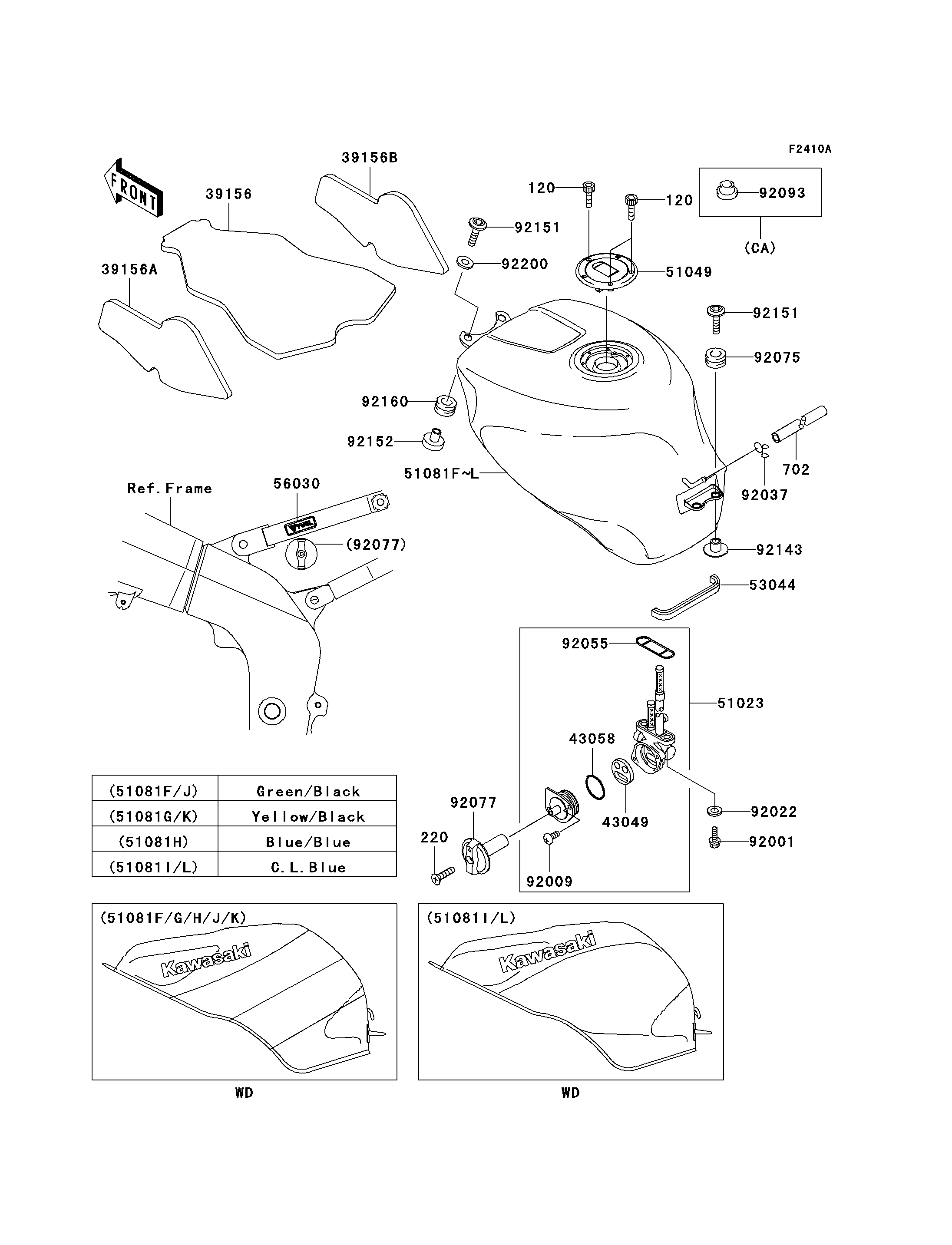

2001 Ninja® ZX™-6R - Fuel Tank(ZX600-J2)

DOWNLOAD PDF
SELECT A NEW PART
39156
39156
39156A
39156A
39156B
39156B
43049
43049
43058
43058
51023
51023
51049
51049
53044
53044
56030
56030
92001
92001
92009
92009
92022
92022
92037
92037
92055
92055
92075
92075
92077
92077
120
120
120
120
220
220
702
702
92143
92143
92151
92151
92151
92151
92152
92152
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,FUEL TANK,CNT 39156 39156-1612 1
PAD,FUEL TANK,LH 39156A 39156-1613 1
PAD,FUEL TANK,RH 39156B 39156-1614 1
PACKING,TAP VALVE 43049 43049-1075 1
RING,TAP LEVER 43058 43058-1083 1
TAP-ASSY,FUEL 51023 51023-1237 1
CAP-TANK,FUEL 51049 51049-1120 1
TRIM 53044 53044-1296 1
LABEL,FUEL TAP 56030 56030-1195 1
BOLT,6X25 92001 92001-1524 2
SCREW,3X8 92009 92009-1386 2
WASHER,6.2X11X1.5 92022 92022-183 2
CLAMP,TUBE 92037 92037-010 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
DAMPER 92075 92075-209 2
KNOB,FUEL TAP 92077 92077-1123 1
BOLT-SOCKET 120 120S0516 3
SCREW-PAN-CROS 220 220C0416 1
TUBE-RUBBER,6X520 702 702A06520 1
COLLAR 92143 92143-1515 2
BOLT,SOCKET,6X35 92151 92151-1835 4
COLLAR 92152 92152-1266 2
DAMPER 92160 92160-1162 2
WASHER,6.5X22X1.6 92200 92200-1087 2
TANK-COMP-FUEL,GREEN/BLACK 51081F 51081-5399-3I 1 CNUS
TANK-COMP-FUEL,YELLOW/BLACK 51081G 51081-5400-4I 1 CNUS
TANK-COMP-FUEL,BLUE/BLUE 51081H 51081-5401-5I 1 CN
TANK-COMP-FUEL,C.L.BLUE 51081I 51081-5402-E1 1 US
TANK-COMP-FUEL,GREEN/BLACK 51081J 51081-5408-3I 1 CA
TANK-COMP-FUEL,YELLOW/BLACK 51081K 51081-5410-4I 1 CA
TANK-COMP-FUEL,C.L.BLUE 51081L 51081-5413-E1 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
