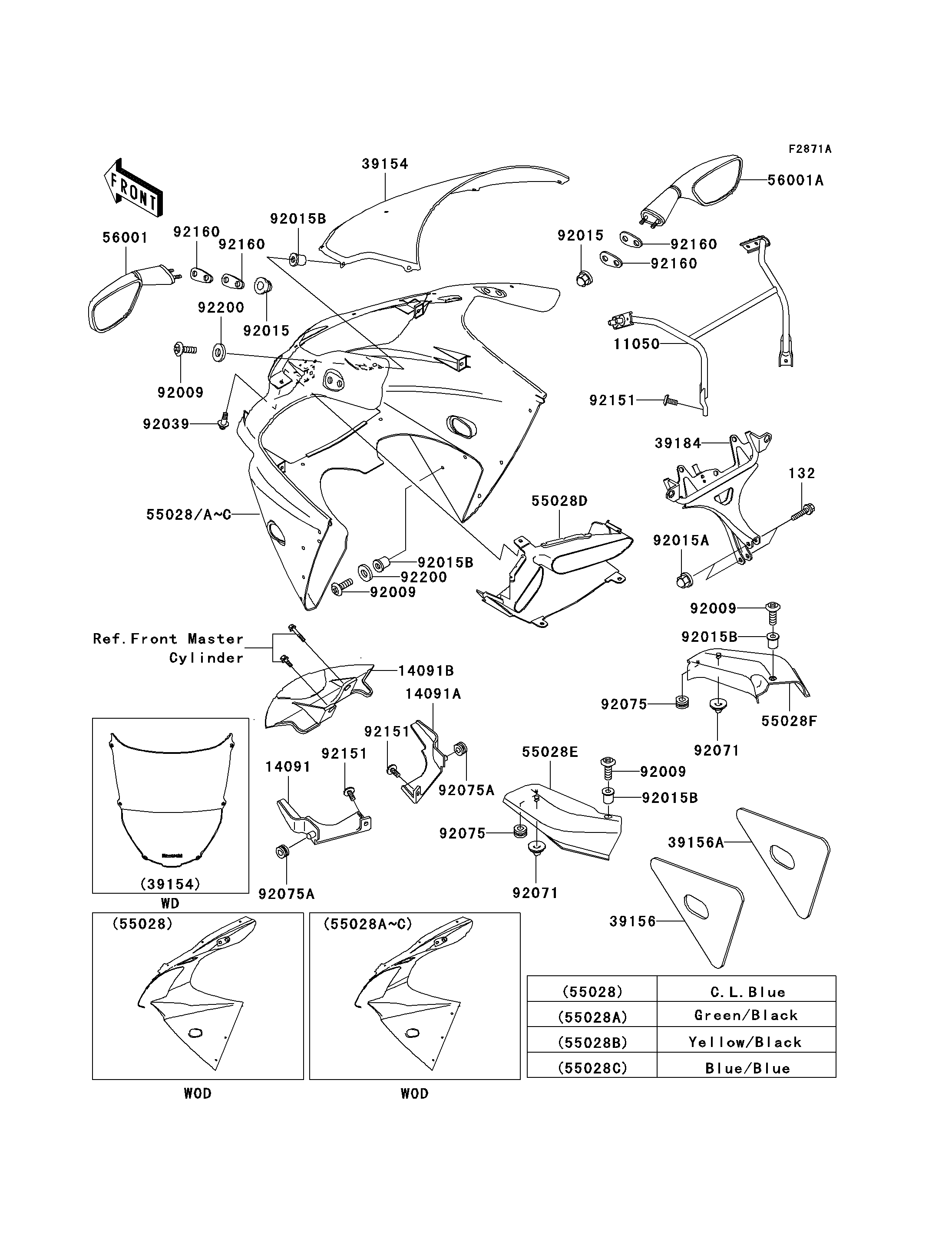

2001 Ninja® ZX™-6R - Cowling(ZX600-J2)

DOWNLOAD PDF
SELECT A NEW PART
132
11050
14091
14091A
14091B
39154
39156
39156A
39184
55028A
55028B
55028D
55028E
55028F
56001
56001A
92009
92009
92009
92009
92015
92015
92015A
92015B
92015B
92015B
92015B
92039
92071
92071
92075
92075
92075A
92075A
92151
92151
92151
92160
92160
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0830 2
BRACKET,MIRROR 11050 11050-1640 1
COVER,RADIATOR,LH 14091 14091-1170 1
COVER,RADIATOR,RH 14091A 14091-1171 1
COVER,UNDER BRACKET 14091B 14091-1271 1
WINDSHIELD 39154 39154-5013 1
PAD,UPP COWLING,LH 39156 39156-1622 1
PAD,UPP COWLING,RH 39156A 39156-1623 1
BRACKET-ASSY,MAIN 39184 39184-1085 1
COWLING,UPP,GREEN/BLACK 55028A 55028-1390-3I 1
COWLING,UPP,YELLOW/BLACK 55028B 55028-1390-4I 1
COWLING,DUCT,M.F.C.GRAY 55028D 55028-1391-3L 1
COWLING,INNER,LH 55028E 55028-1394 1
COWLING,INNER,RH 55028F 55028-1395 1
MIRROR-ASSY,LH 56001 56001-1483 1
MIRROR-ASSY,RH 56001A 56001-1484 1
SCREW,5X16 92009 92009-1909 10
NUT,CAP,6MM,BLACK 92015 92015-1170 4
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,WELL,5MM 92015B 92015-1757 10
RIVET 92039 92039-1227 1
GROMMET 92071 92071-1222 2
DAMPER 92075 92075-1067 2
DAMPER 92075A 92075-1912 2
BOLT,SOCKET,6X14 92151 92151-1654 4
DAMPER,MIRROR 92160 92160-1089 4
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 8
COWLING,UPP,C.L.BLUE 55028 55028-1390-E1 1 CAUS
COWLING,UPP,BLUE/BLUE 55028C 55028-1390-5I 1 CN
