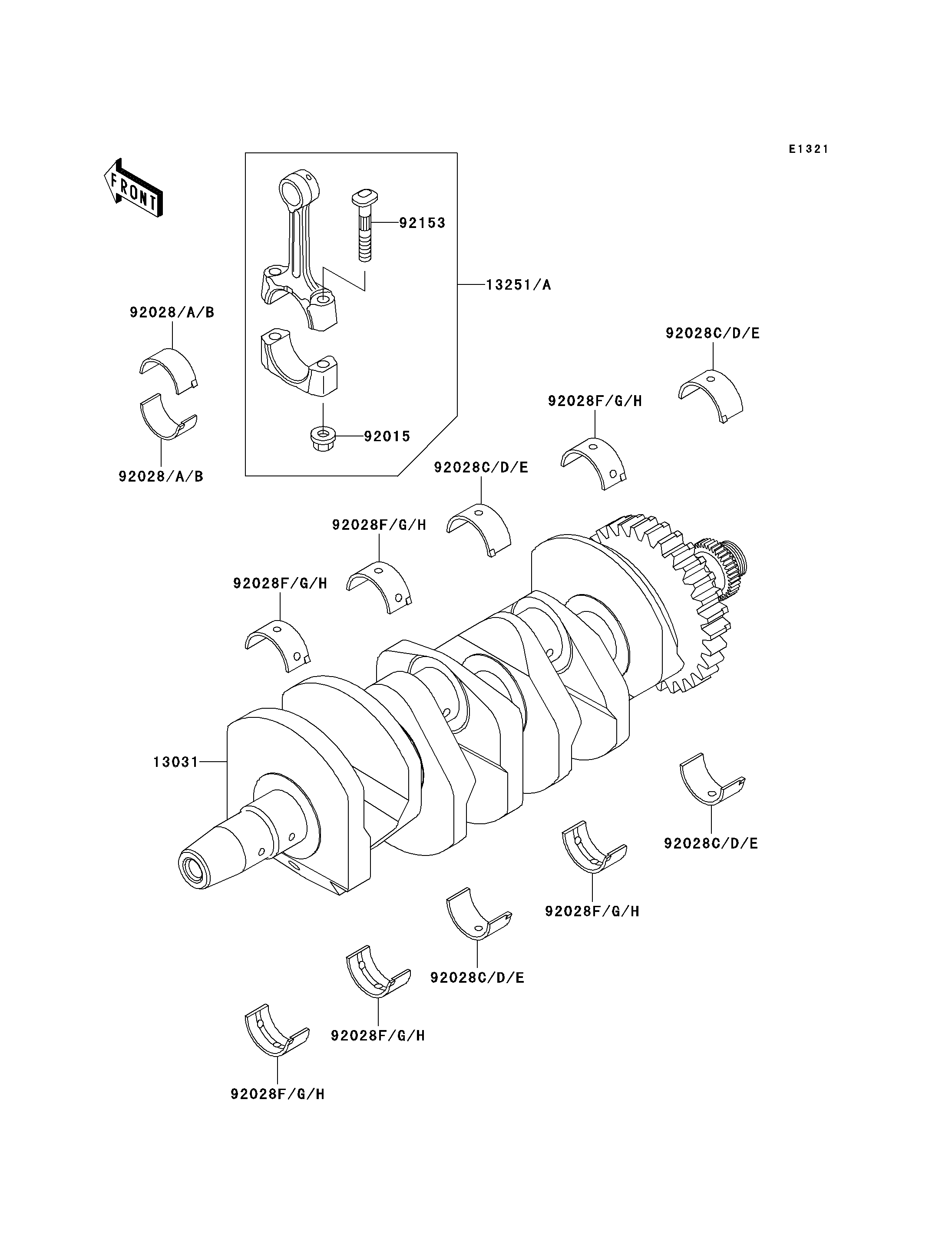

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13031
13251
13251A
92015
92028
92028
92028A
92028A
92028B
92028B
92028C
92028C
92028C
92028C
92028D
92028D
92028D
92028D
92028E
92028E
92028E
92028E
92028F
92028F
92028F
92028F
92028F
92028F
92028G
92028G
92028G
92028G
92028G
92028G
92028H
92028H
92028H
92028H
92028H
92028H
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-1469 | 1 | ||
| ROD-ASSY-CONNECTING,J | 13251 | 13251-1141-JJ | 4 | ||
| ROD-ASSY-CONNECTING,K | 13251A | 13251-1141-KK | AR | ||
| NUT,CONNECTING ROD,7MM | 92015 | 92015-1527 | 8 | ||
| BUSHING,CONNECTING ROD,BLACK | 92028 | 92028-1878 | AR | ||
| BUSHING,CONNECTING ROD,BROWN | 92028A | 92028-1879 | 8 | ||
| BUSHING,CONNECTING ROD,PINK | 92028B | 92028-1880 | AR | ||
| BUSHING,CRANKSHAFT,BLUE | 92028C | 92028-1881 | 4 | ||
| BUSHING,CRANKSHAFT,BLACK | 92028D | 92028-1882 | AR | ||
| BUSHING,CRANKSHAFT,BROWN | 92028E | 92028-1883 | AR | ||
| BUSHING,CRANKSHAFT,BLUE | 92028F | 92028-1884 | 6 | ||
| BUSHING,CRANKSHAFT,BLACK | 92028G | 92028-1885 | AR | ||
| BUSHING,CRANKSHAFT,BROWN | 92028H | 92028-1886 | AR | ||
| BOLT,7MM | 92153 | 92153-1172 | 8 |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,K | |
| REF # | 13251A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| NUT,CONNECTING ROD,7MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BLACK | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BROWN | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,PINK | |
| REF # | 92028B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLUE | |
| REF # | 92028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLACK | |
| REF # | 92028D |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BROWN | |
| REF # | 92028E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLUE | |
| REF # | 92028F |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLACK | |
| REF # | 92028G |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BROWN | |
| REF # | 92028H |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BOLT,7MM | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
