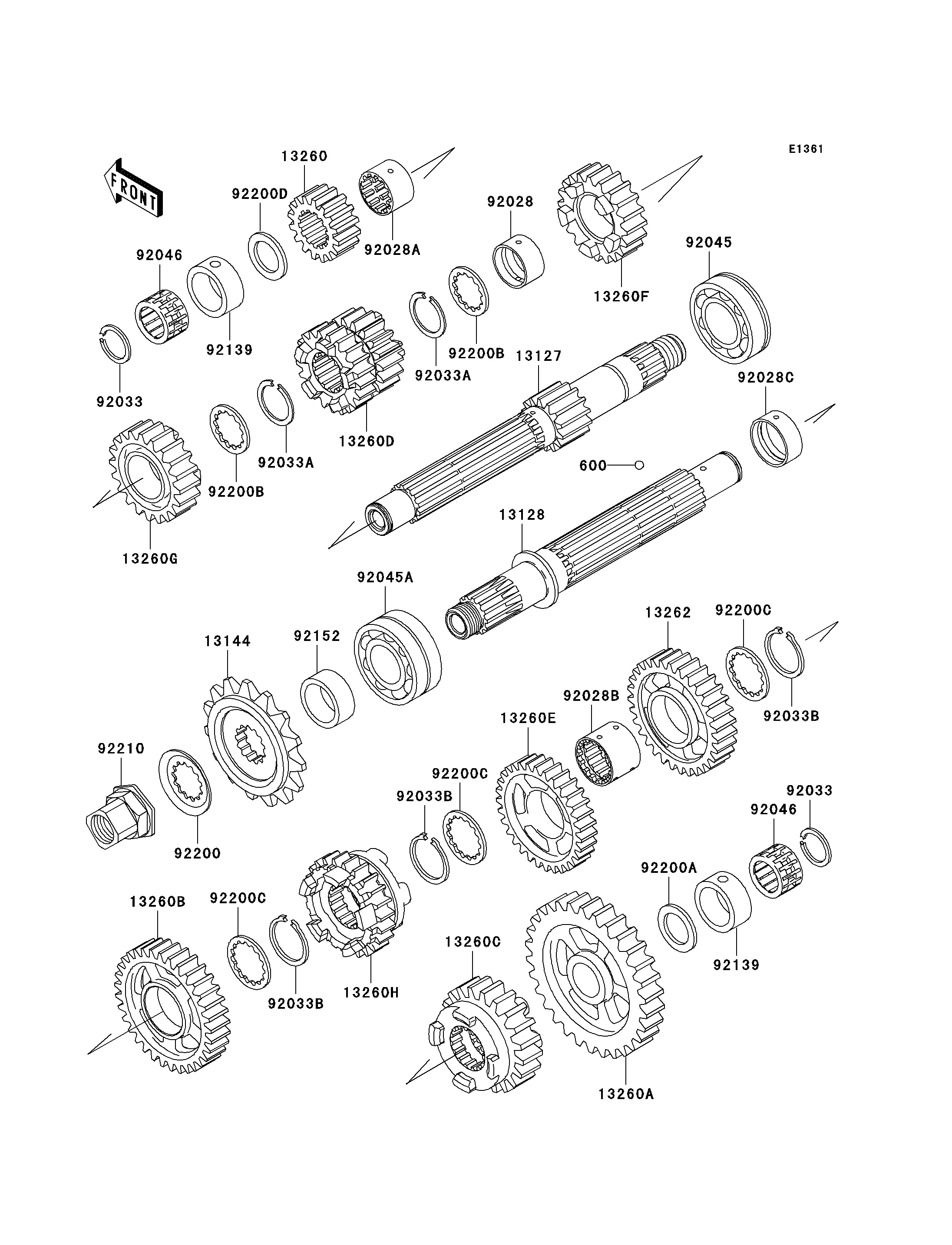

Parts Diagrams |
600
13127
13128
13144
13260
13260A
13260B
13260C
13260D
13260E
13260F
13260G
13260H
13262
92028
92028A
92028B
92028C
92033
92033
92033A
92033A
92033B
92033B
92033B
92045
92045A
92046
92046
92139
92139
92152
92200
92200A
92200B
92200B
92200C
92200C
92200C
92200D
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BALL-STEEL,5/32" | 600 | 600A0500 | 3 | ||
SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-1298 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1264 | 1 | ||
SPROCKET-OUTPUT,15T | 13144 | 13144-1288 | 1 | ||
GEAR,INPUT 2ND,16T | 13260 | 13260-1452 | 1 | ||
GEAR,OUTPUT LOW,38T | 13260A | 13260-1456 | 1 | ||
GEAR,OUTPUT 2ND,33T | 13260B | 13260-1568 | 1 | ||
GEAR,OUTPUT 5TH,28T | 13260C | 13260-1979 | 1 | ||
GEAR,INPUT 3RD&4TH,19T&21T | 13260D | 13260-1980 | 1 | ||
GEAR,OUTPUT 4TH,29T | 13260E | 13260-1981 | 1 | ||
GEAR,INPUT 5TH,32T | 13260F | 13260-1982 | 1 | ||
GEAR,INPUT TOP,24T | 13260G | 13260-1983 | 1 | ||
GEAR,OUTPUT TOP,26T | 13260H | 13260-1984 | 1 | ||
GEAR,OUTPUT 3RD,31T | 13262 | 13262-1058 | 1 | ||
BUSHING,INPUT 5TH GEAR | 92028 | 92028-1735 | 1 | ||
BUSHING,INPUT TOP GEAR | 92028A | 92028-1736 | 1 | ||
BUSHING,OUTPUT,3RD&4TH | 92028B | 92028-1738 | 1 | ||
BUSHING,OUTPUT,2ND | 92028C | 92028-1739 | 1 | ||
RING-SNAP,20MM | 92033 | 92033-015 | 2 | ||
RING-SNAP,24MM | 92033A | 92033-026 | 2 | ||
RING-SNAP,T=1.2 | 92033B | 92033-1037 | 3 | ||
BEARING-BALL,HR6205C3 | 92045 | 92045-0009 | 1 | ||
BEARING-BALL,83993SH2-CS | 92045A | 92045-035 | 1 | ||
BEARING-NEEDLE,PK20X27X17X3 | 92046 | 92046-1303 | 2 | ||
BUSHING,27X34X18.6 | 92139 | 92139-1090 | 2 | ||
COLLAR,25X32X13 | 92152 | 92152-0192 | 1 | ||
WASHER | 92200 | 92200-1065 | 1 | ||
WASHER,20.3X30X2.3 | 92200A | 92200-1238 | 1 | ||
WASHER,INPUT TOP&5TH | 92200B | 92200-1239 | 2 | ||
WASHER,T=1.5 | 92200C | 92200-1240 | 3 | ||
WASHER,20.3X33X1.0 | 92200D | 92200-1613 | 1 | ||
NUT,SPROCKET | 92210 | 92210-1098 | 1 |
BALL-STEEL,5/32" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SHAFT-TRANSMISSION INPUT,13T | |
REF # | 13127 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-TRANSMISSION OUTPUT | |
REF # | 13128 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-OUTPUT,15T | |
REF # | 13144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 2ND,16T | |
REF # | 13260 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT LOW,38T | |
REF # | 13260A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 2ND,33T | |
REF # | 13260B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 5TH,28T | |
REF # | 13260C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 3RD&4TH,19T&21T | |
REF # | 13260D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 4TH,29T | |
REF # | 13260E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 5TH,32T | |
REF # | 13260F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT TOP,24T | |
REF # | 13260G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT TOP,26T | |
REF # | 13260H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 3RD,31T | |
REF # | 13262 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,INPUT 5TH GEAR | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,INPUT TOP GEAR | |
REF # | 92028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,OUTPUT,3RD&4TH | |
REF # | 92028B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,OUTPUT,2ND | |
REF # | 92028C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,20MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,24MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,T=1.2 | |
REF # | 92033B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BEARING-BALL,HR6205C3 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,83993SH2-CS | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,PK20X27X17X3 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING,27X34X18.6 | |
REF # | 92139 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,25X32X13 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,20.3X30X2.3 | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,INPUT TOP&5TH | |
REF # | 92200B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,T=1.5 | |
REF # | 92200C |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER,20.3X33X1.0 | |
REF # | 92200D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,SPROCKET | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
