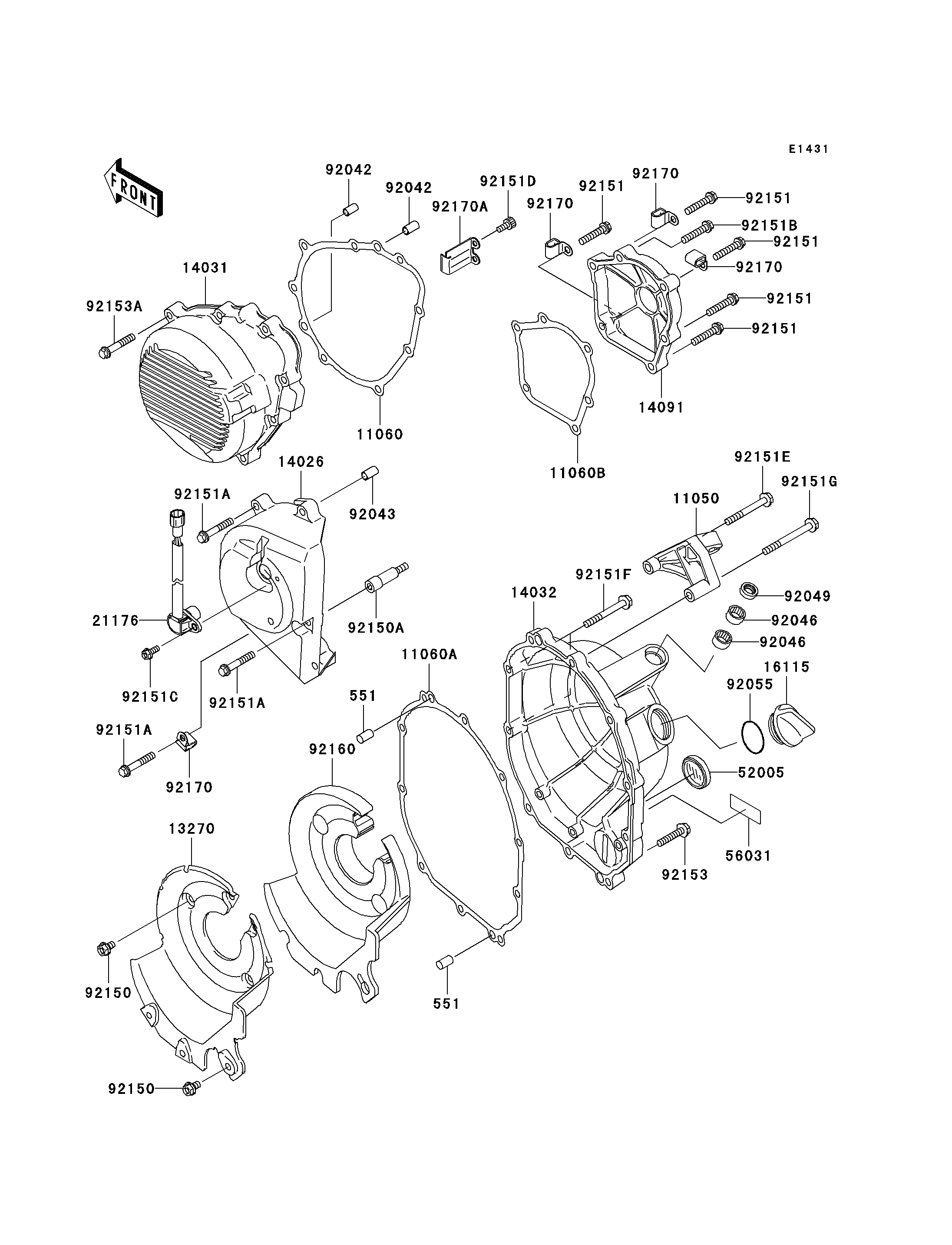

2005 ZZR600 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
551
551
11050
11060
11060A
11060B
13270
14026
14031
14032
14091
16115
21176
52005
56031
92042
92042
92043
92046
92046
92049
92055
92150
92150
92150A
92151
92151
92151
92151
92151
92151A
92151A
92151A
92151B
92151C
92151D
92151E
92151F
92151G
92153
92153A
92160
92170
92170
92170
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-DOWEL,8X14 551 551A0814 2
BRACKET,CLUTCH CABLE 11050 11050-1864 1
GASKET,GENERATOR COVER 11060 11060-1851 1
GASKET,CLUTCH COVER 11060A 11060-1853 1
GASKET,PULSING COVER 11060B 11060-1867 1
PLATE,CLUTCH COVER 13270 13270-1350 1
COVER-CHAIN 14026 14026-1277 1
COVER-GENERATOR 14031 14031-1373 1
COVER-CLUTCH 14032 14032-1500 1
COVER,PULSING 14091 14091-0319 1
CAP-OIL FILLER 16115 16115-1009 1
SENSOR,SPEED 21176 21176-0032 1
GAUGE,OIL LEVEL 52005 52005-1057 1
LABEL-MANUAL,OIL CAPACITY 56031 56031-1895 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,6.2X8X14 92043 92043-1263 1
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,TB12205.5 92049 92049-1271 1
RING-O,31.7X2.4 92055 92055-049 1
BOLT,5X8 92150 92150-1406 7
BOLT 92150A 92150-1889 1
BOLT,6X30 92151 92151-1134 5
BOLT,6X35 92151A 92151-1135 5
BOLT,6X30 92151B 92151-1201 1
BOLT,5X12 92151C 92151-1305 1
BOLT,SOCKET,5X12 92151D 92151-1365 2
BOLT,6X50 92151E 92151-1545 1
BOLT,6X50 92151F 92151-1790 2
BOLT,6X60 92151G 92151-1791 1
BOLT,6X30 92153 92153-0608 6
BOLT,6X35 92153A 92153-0634 8
DAMPER,CLUTCH COVER 92160 92160-1554 1
CLAMP 92170 92170-1577 4
CLAMP 92170A 92170-1843 1
