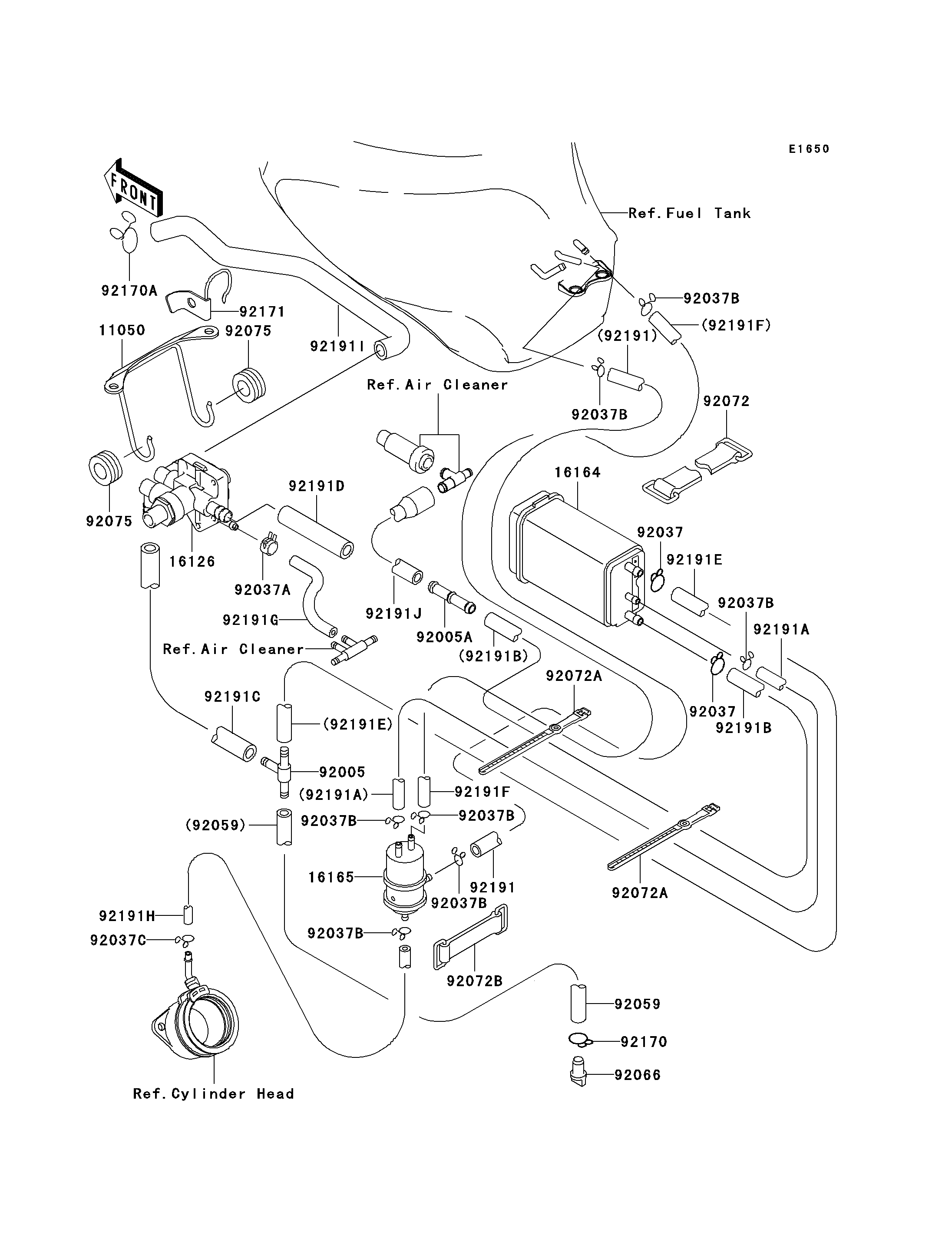

2005 ZZR600 - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11050 11050-1729 1 CA
VALVE 16126 16126-1354 1 CA
CANISTER 16164 16164-1052 1 CA
SEPARATOR 16165 16165-1001 1 CA
FITTING 92005 92005-1304 1 CA
FITTING 92005A 92005-1377 1 CA
CLAMP,HOSE 92037 92037-1104 2 CA
CLAMP,TUBE 92037A 92037-1461 1 CA
CLAMP,TUBE 92037B 92037-147 7 CA
CLAMP 92037C 92037-1712 1 CA
TUBE,7X12X440,YELLOW 92059 92059-1440 1 CA
PLUG,DRAIN 92066 92066-1211 1 CA
BAND,L=90 92072 92072-045 1 CA
BAND,L=202 92072A 92072-1195 2 CA
BAND,L=50 92072B 92072-1419 1 CA
DAMPER,MUFFLER 92075 92075-1621 2 CA
CLAMP 92170 92170-1529 1 CA
CLAMP 92170A 92170-1997 1 CA
CLAMP 92171 92171-1236 1 CA
TUBE,SEPARATOR-TANK,RED 92191 92191-1234 1 CA
TUBE,SEPARATOR-CANIST,BLUE 92191A 92191-1236 1 CA
TUBE,CANISTER-FILTER,GREEN 92191B 92191-1237 1 CA
TUBE,VALVE-FITTING,YELLOW 92191C 92191-1238 1 CA
TUBE,CARB-VALVE 92191D 92191-1240 1 CA
TUBE,FITTING-CANIST,YELLOW 92191E 92191-1250 1 CA
TUBE,SEPARATOR-TANK,BLUE 92191F 92191-1268 1 CA
TUBE,FITTING-VALVE 92191G 92191-1275 1 CA
TUBE,SEPARATOR-CARB,WHITE 92191H 92191-1276 1 CA
TUBE,AIR VENT-VALVE 92191I 92191-1503 1 CA
TUBE 92191J 92191-1514 1 CA
