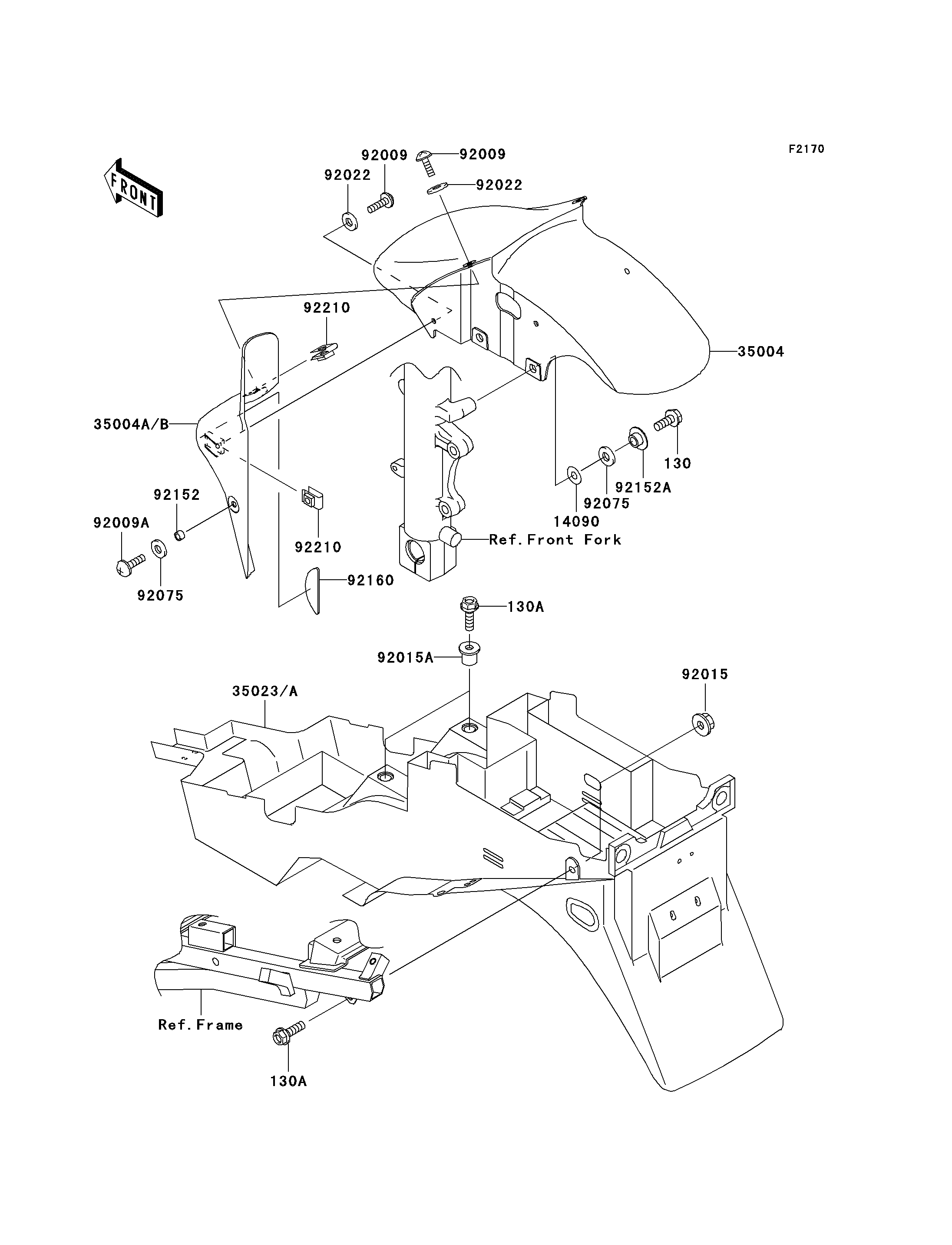

2005 ZZR600 - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
14090
35004
35004A
35004B
92009
92009
92009A
92015
92015A
92022
92022
92075
92075
92152
92152A
92160
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130H0616 4
BOLT-FLANGED 130A 130J0620 4
COVER 14090 14090-1505 4
FENDER-FRONT,CNT,M.O.BLUE 35004 35004-1421-726 1
FENDER-FRONT,SIDE,LH,C.GRAY 35004A 35004-1422-3L 1
FENDER-FRONT,SIDE,RH,C.GRAY 35004B 35004-1423-3L 1
SCREW,5X16,BLACK 92009 92009-1654 4
SCREW,6X14 92009A 92009-1662 2
NUT,6MM 92015 92015-1321 2
NUT 92015A 92015-1700 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 4
DAMPER 92075 92075-1564 6
COLLAR,6.8X10X6 92152 92152-1256 2
COLLAR 92152A 92152-1269 4
DAMPER 92160 92160-1961 2
NUT,5MM 92210 92210-1266 4
FENDER-REAR 35023 35023-1538 1 CA
FENDER-REAR 35023A 35023-1540 1 US
