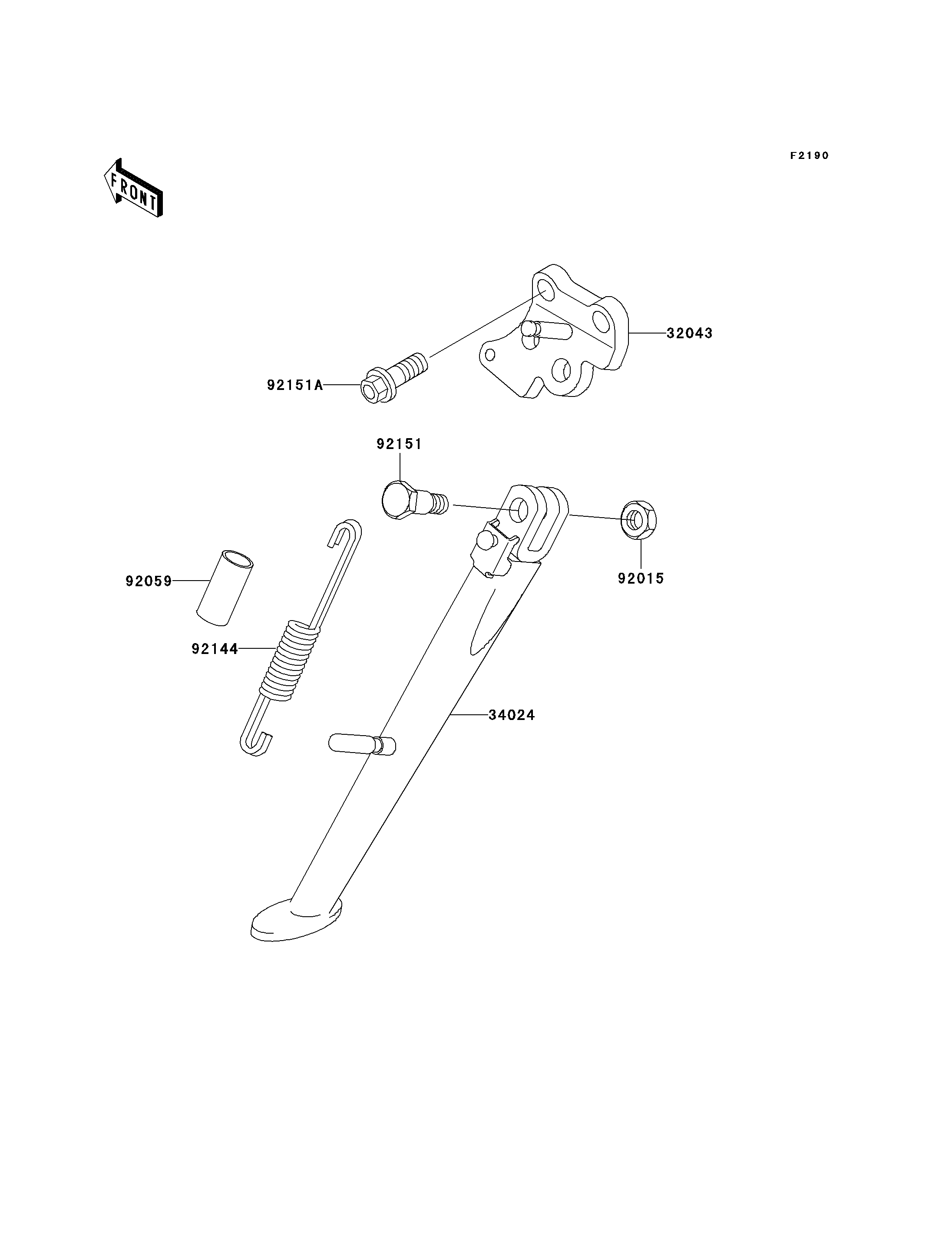

32043
34024
92015
92059
92144
92151
92151A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE,BLACK 32043 32043-1435-10 1
STAND-SIDE 34024 34024-1345 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
TUBE,14X17X50 92059 92059-1961 1
SPRING,SIDE STAND 92144 92144-1818 1
BOLT,SIDE STAND 92151 92151-1797 1
BOLT,FLANGED,10X25 92151A 92151-1802 2
