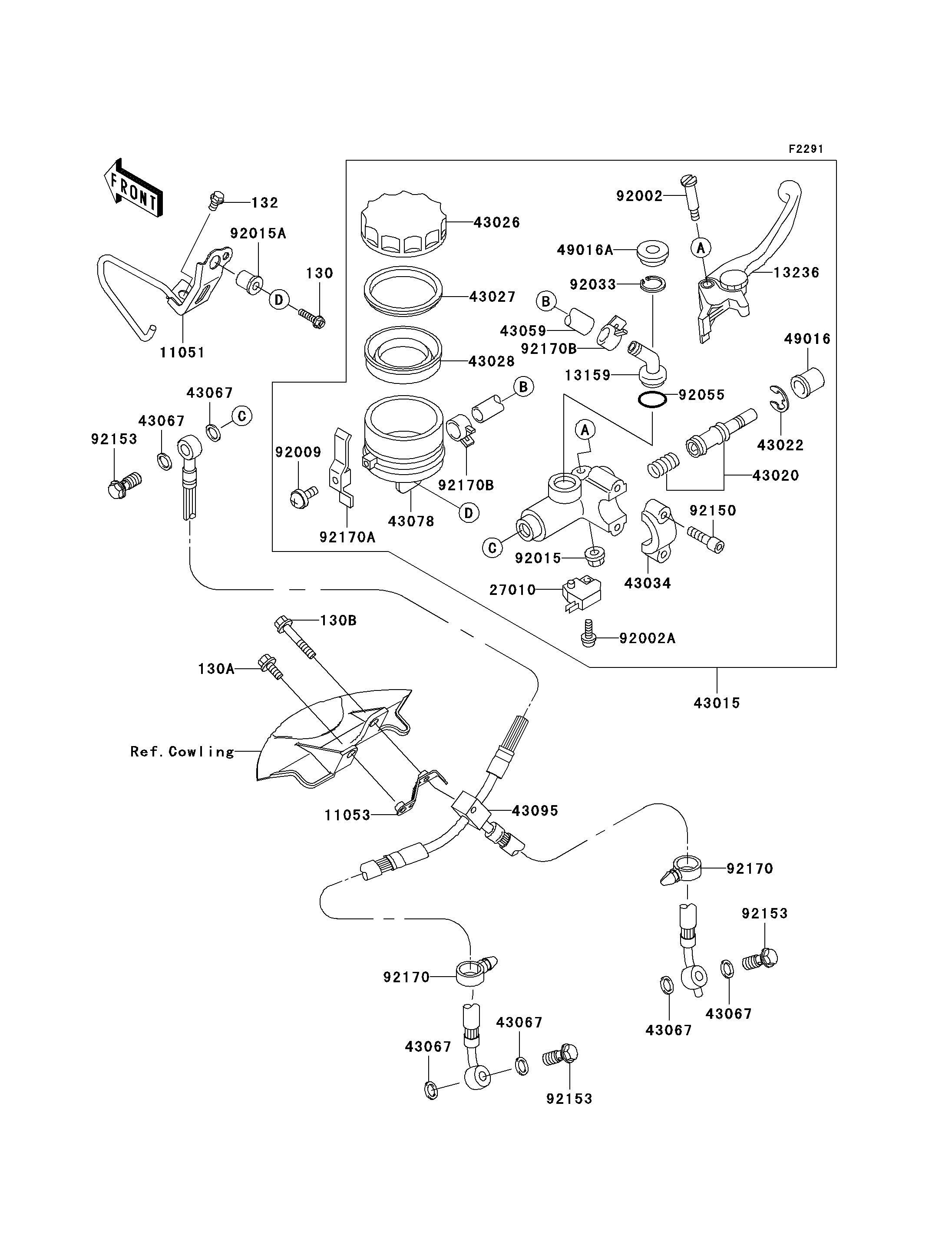

Parts Diagrams |
130
130A
130B
132
11051
11053
13159
13236
27010
43015
43020
43022
43026
43027
43028
43034
43059
43067
43067
43067
43067
43067
43067
43078
43095
49016
49016A
92002
92002A
92009
92015
92015A
92033
92055
92150
92153
92153
92153
92170
92170
92170A
92170B
92170B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0520 | 1 | ||
BOLT-FLANGED,6X14,BLACK | 130A | 130J0614 | 1 | ||
BOLT-FLANGED | 130B | 130L0635 | 1 | ||
BOLT-FLANGED-SMALL,6X10 | 132 | 132J0610 | 1 | ||
BRACKET,RESERVOIR TANK | 11051 | 11051-1951 | 1 | ||
BRACKET,BRAKE HOSE | 11053 | 11053-0068 | 1 | ||
CONNECTOR | 13159 | 13159-1061 | 1 | ||
LEVER-COMP,FRONT BRAKE | 13236 | 13236-1326 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-0025 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1633 | 1 | ||
PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1016 | 1 | ||
HOSE-BRAKE,FR MASTER CYLINDER | 43059 | 43059-1696 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 6 | ||
RESERVOIR | 43078 | 43078-1099 | 1 | ||
HOSE-BRAKE,FR | 43095 | 43095-1376 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
COVER-SEAL | 49016A | 49016-1147 | 1 | ||
BOLT,LEVER SET,BLACK | 92002 | 92002-1322 | 1 | ||
BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | ||
SCREW | 92009 | 92009-1570 | 1 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | ||
NUT,WELL,5MM | 92015A | 92015-1757 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
BOLT | 92150 | 92150-1328 | 2 | ||
BOLT,OIL,L=23 | 92153 | 92153-0627 | 3 | ||
CLAMP | 92170 | 92170-1067 | 2 | ||
CLAMP | 92170A | 92170-1090 | 1 | ||
CLAMP,HOSE | 92170B | 92170-1091 | 2 |
