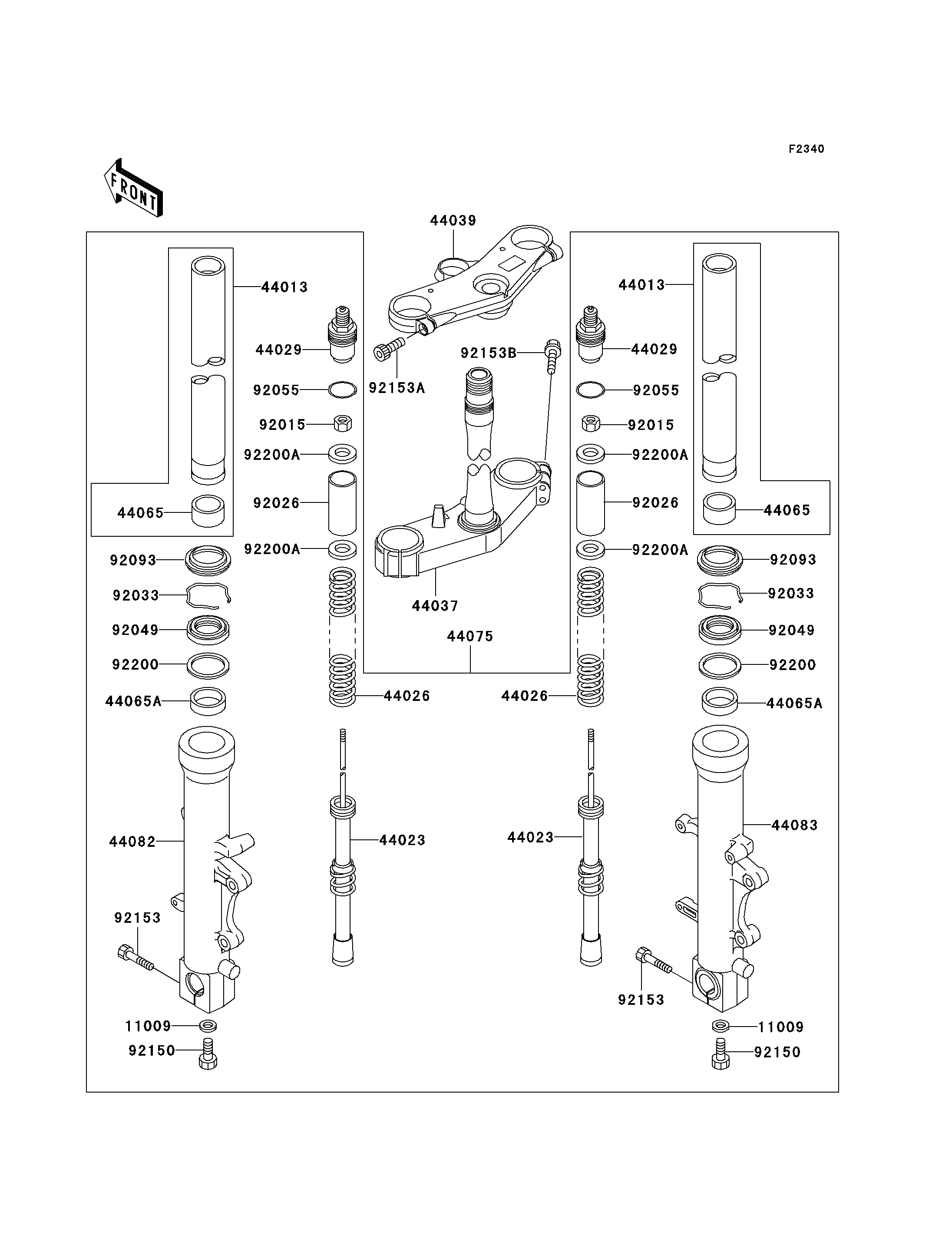

2005 ZZR600 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
44013
44013
44023
44023
44026
44026
44029
44029
44037
44039
44065
44065
44065A
44065A
44075
44082
44083
92015
92015
92026
92026
92033
92033
92049
92049
92055
92055
92093
92093
92150
92150
92153
92153
92153A
92153B
92200
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
PIPE-FORK INNER 44013 44013-1473 2
CYLINDER-SET-FORK 44023 44023-1149 2
SPRING-FRONT FORK 44026 44026-1765 2
SEAT-FORK SPRING 44029 44029-1173 2
HOLDER-FORK UNDER 44037 44037-1438 1
HOLDER-FORK UPPER 44039 44039-1329 1
BUSHING-FRONT FORK 44065 44065-1129 2
BUSHING-FRONT FORK 44065A 44065-1130 2
DAMPER-SET-FORK 44075 44075-1174 1
PIPE-COMP-LEFT FORK OUT 44082 44082-1069 1
PIPE-COMP-RIGHT FORK OUT 44083 44083-1066 1
NUT 92015 92015-1905 2
SPACER,FORK,L=125 92026 92026-1578 2
RING-SNAP 92033 92033-1264 2
SEAL-OIL 92049 92049-1508 2
RING-O 92055 92055-1140 2
SEAL,FORK OUTER TUBE 92093 92093-1473 2
BOLT,12X22 92150 92150-1398 2
BOLT,SOCKET,8X40 92153 92153-1178 4
BOLT,SOCKET,8X25 92153A 92153-1179 2
BOLT,FLANGED,8X40 92153B 92153-1193 4
WASHER 92200 92200-1006 2
WASHER 92200A 92200-1420 4
