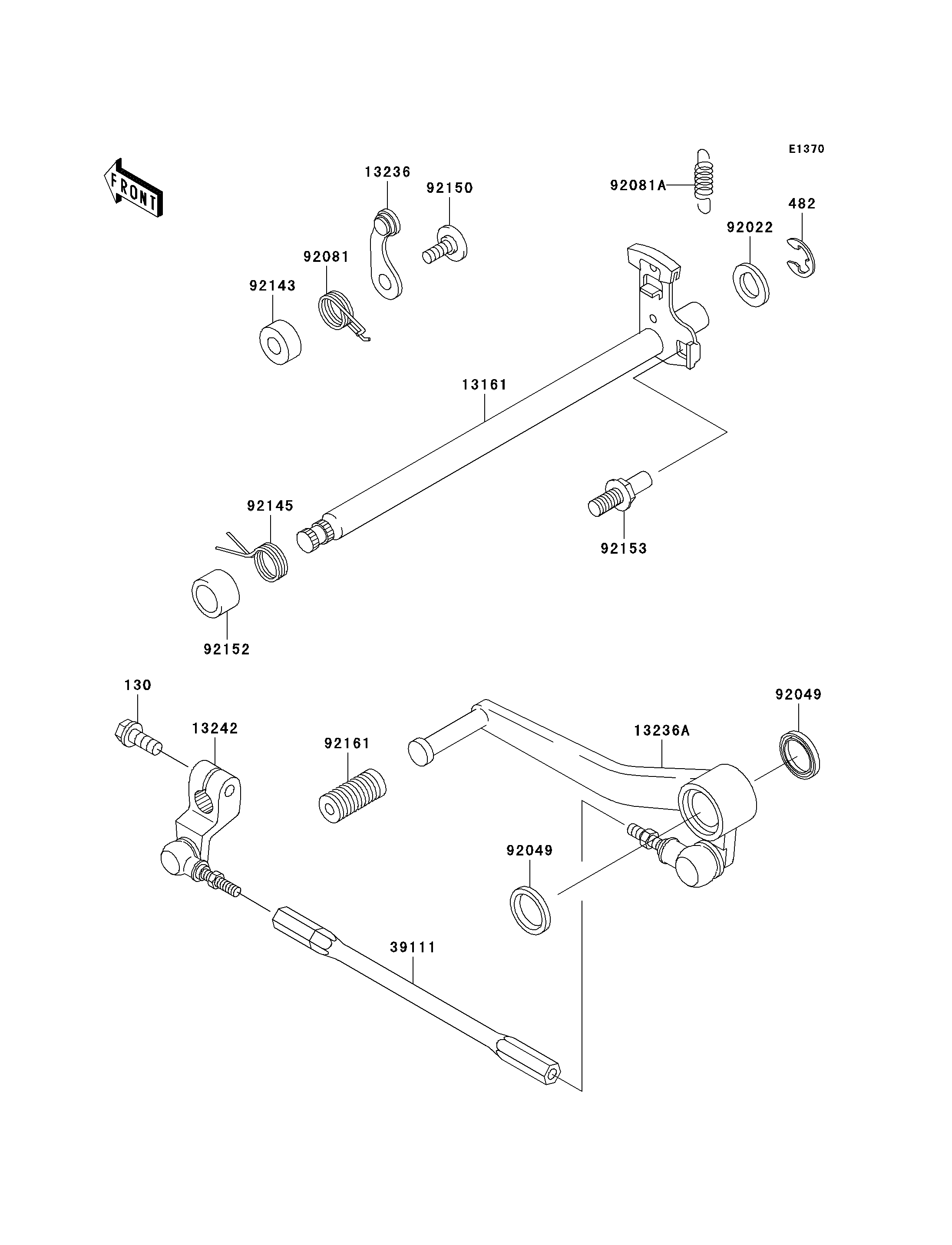

2003 Ninja® ZX™-6RR - Gear Change Mechanism
130
482
13161
13236
13236A
13242
39111
92022
92049
92049
92081
92081A
92143
92145
92150
92152
92153
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130Z0620 | 1 | ||
| CIRCLIP-TYPE-E,12MM | 482 | 482J0200 | 1 | ||
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1284 | 1 | ||
| LEVER-COMP | 13236 | 13236-1243 | 1 | ||
| LEVER-COMP,CHANGE PEDAL | 13236A | 13236-1317 | 1 | ||
| LEVER-ASSY-CHANGE,BOSS | 13242 | 13242-1348 | 1 | ||
| ROD-TIE | 39111 | 39111-1181 | 1 | ||
| WASHER,CHANGE SHAFT | 92022 | 92022-1628 | 1 | ||
| SEAL-OIL | 92049 | 92049-1492 | 2 | ||
| SPRING | 92081 | 92081-1645 | 1 | ||
| SPRING,PAWL RETURN | 92081A | 92081-1708 | 1 | ||
| COLLAR | 92143 | 92143-1595 | 1 | ||
| SPRING | 92145 | 92145-1122 | 1 | ||
| BOLT,SOCKET,6X16 | 92150 | 92150-1737 | 1 | ||
| COLLAR | 92152 | 92152-1383 | 1 | ||
| BOLT,RETURN SPRING | 92153 | 92153-0421 | 1 | ||
| DAMPER,CHANGE LEVER | 92161 | 92161-1300 | 1 |
