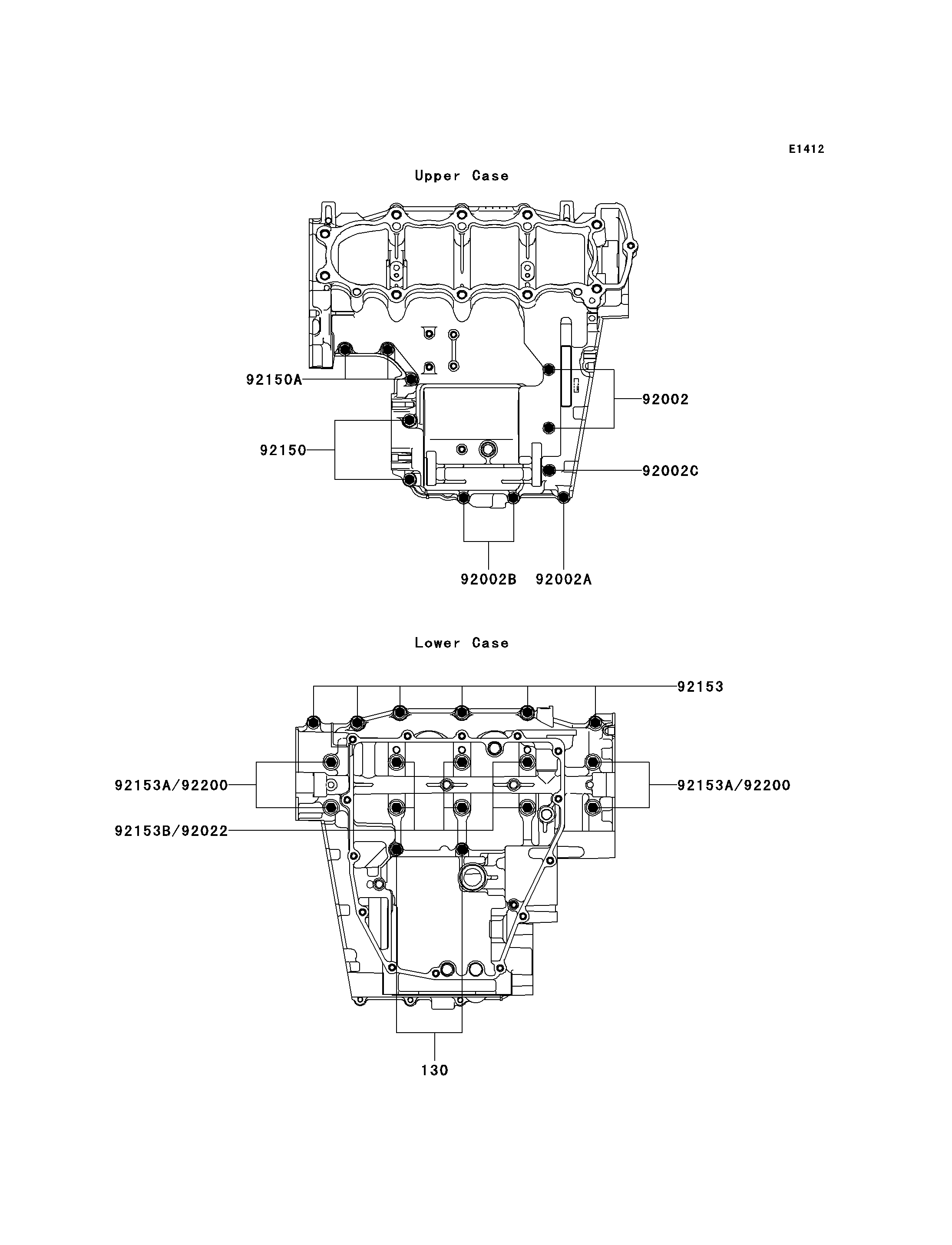

2003 Ninja® ZX-6RR - Crankcase Bolt Pattern

130
92002
92002A
92002B
92002C
92022
92150
92150A
92153
92153A
92153A
92153B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0675 2
BOLT,6X95 92002 92002-1078 2
BOLT,6X50 92002A 92002-1079 1
BOLT,6X65 92002B 92002-1140 2
BOLT,6X85 92002C 92002-1306 1
WASHER 92022 92022-2144 6
BOLT,7X70 92150 92150-1250 2
BOLT,6X35 92150A 92150-1862 3
BOLT,7X38 92153 92153-1109 6
BOLT,7X94 92153A 92153-1233 4
BOLT,7X71 92153B 92153-1234 6
WASHER,7.2X17X2.0 92200 92200-1244 4
