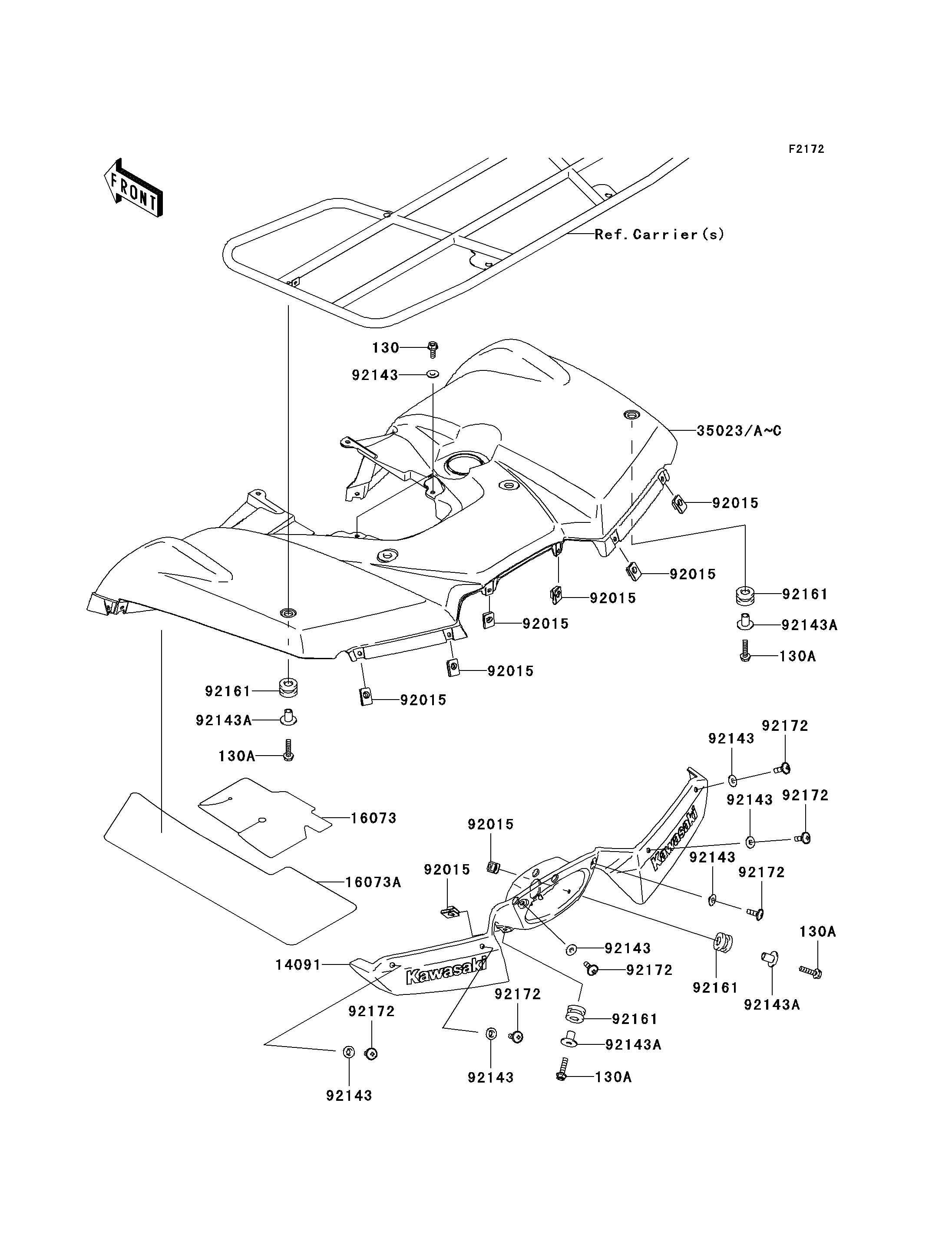

2006 Brute Force 650 4x4i - Rear Fender(s)(F6F-F8F)
130
130A
130A
130A
130A
14091
16073
16073A
35023
35023A
92015
92015
92015
92015
92015
92015
92015
92015
92143
92143
92143
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92161
92161
92161
92161
92172
92172
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130J0616 | 2 | ||
| BOLT-FLANGED,6X25 | 130A | 130J0625 | 4 | ||
| COVER,TAIL LAMP,F.BLACK | 14091 | 14091-0252-6Z | 1 | ||
| INSULATOR,REAR FENDER,INNER | 16073 | 16073-0031 | 1 | ||
| INSULATOR,REAR FENDER,OUTER | 16073A | 16073-0032 | 1 | ||
| FENDER-REAR,A.RED | 35023 | 35023-0050-260 | 1 | ||
| FENDER-REAR,W.GREEN | 35023A | 35023-0050-286 | 1 | ||
| NUT,6MM | 92015 | 92015-1602 | 8 | ||
| COLLAR | 92143 | 92143-1087 | 8 | ||
| COLLAR | 92143A | 92143-1960 | 4 | ||
| DAMPER | 92161 | 92161-0106 | 4 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 6 |
