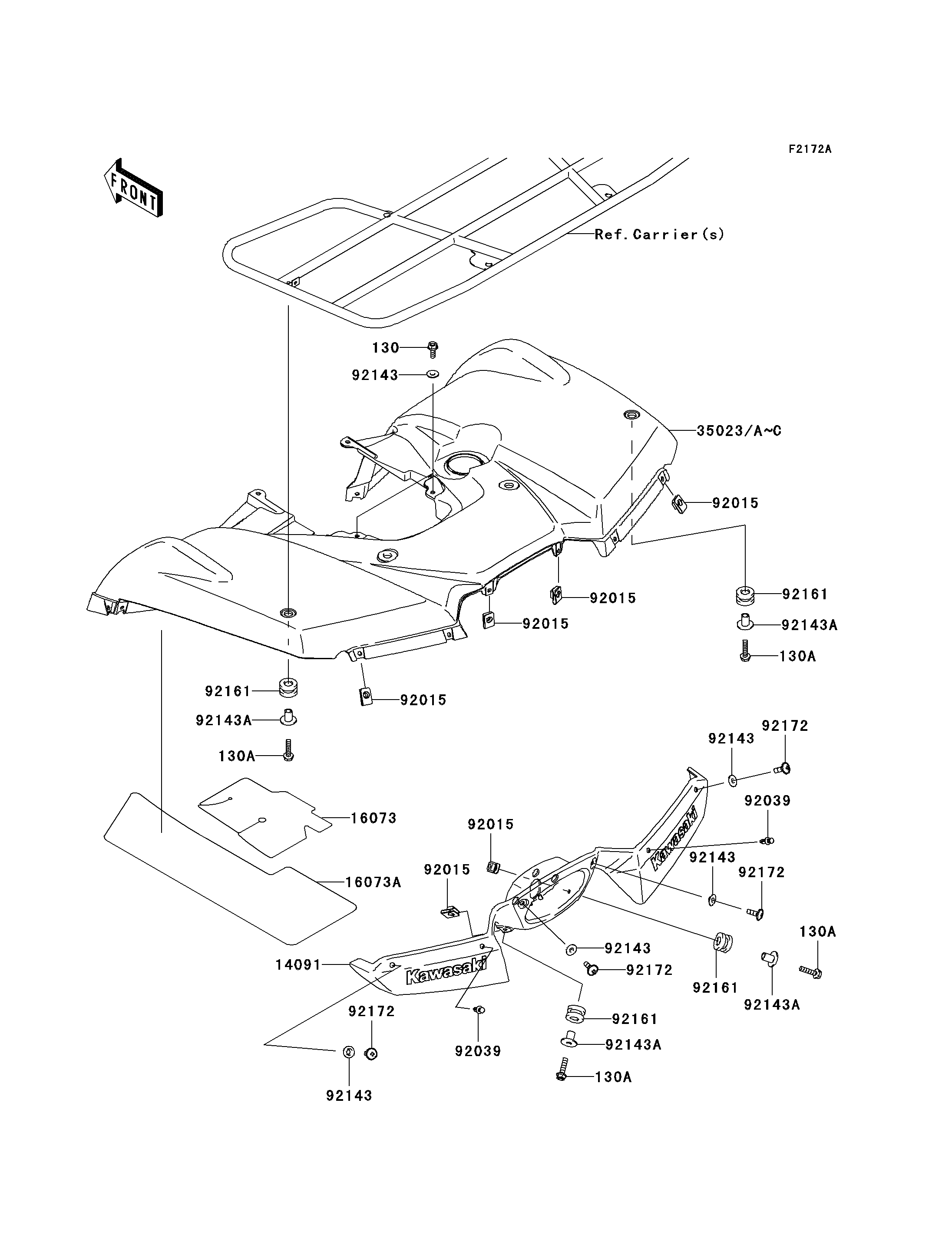

2009 Brute Force® 650 4x4i - Rear Fender(s)(F9F/FAF)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130A
130A
14091
16073
16073A
35023A
35023B
35023C
92015
92015
92015
92015
92015
92015
92039
92039
92143
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92161
92161
92161
92161
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 2
BOLT-FLANGED,6X25 130A 130BB0625 4
COVER,TAIL LAMP,F.BLACK 14091 14091-0252-6Z 1
INSULATOR,REAR FENDER,INNER 16073 16073-0031 1
INSULATOR,REAR FENDER,OUTER 16073A 16073-0032 1
FENDER-REAR,W.GREEN 35023A 35023-0050-286 1
FENDER-REAR,S.RED 35023B 35023-0050-6B 1
FENDER-REAR,BLACK 35023C 35023-0050-839 1
NUT,6MM 92015 92015-1602 6
RIVET 92039 92039-1229 2
COLLAR 92143 92143-1087 6
COLLAR 92143A 92143-1960 4
DAMPER 92161 92161-0106 4
SCREW,6X18 92172 92172-0002 4
