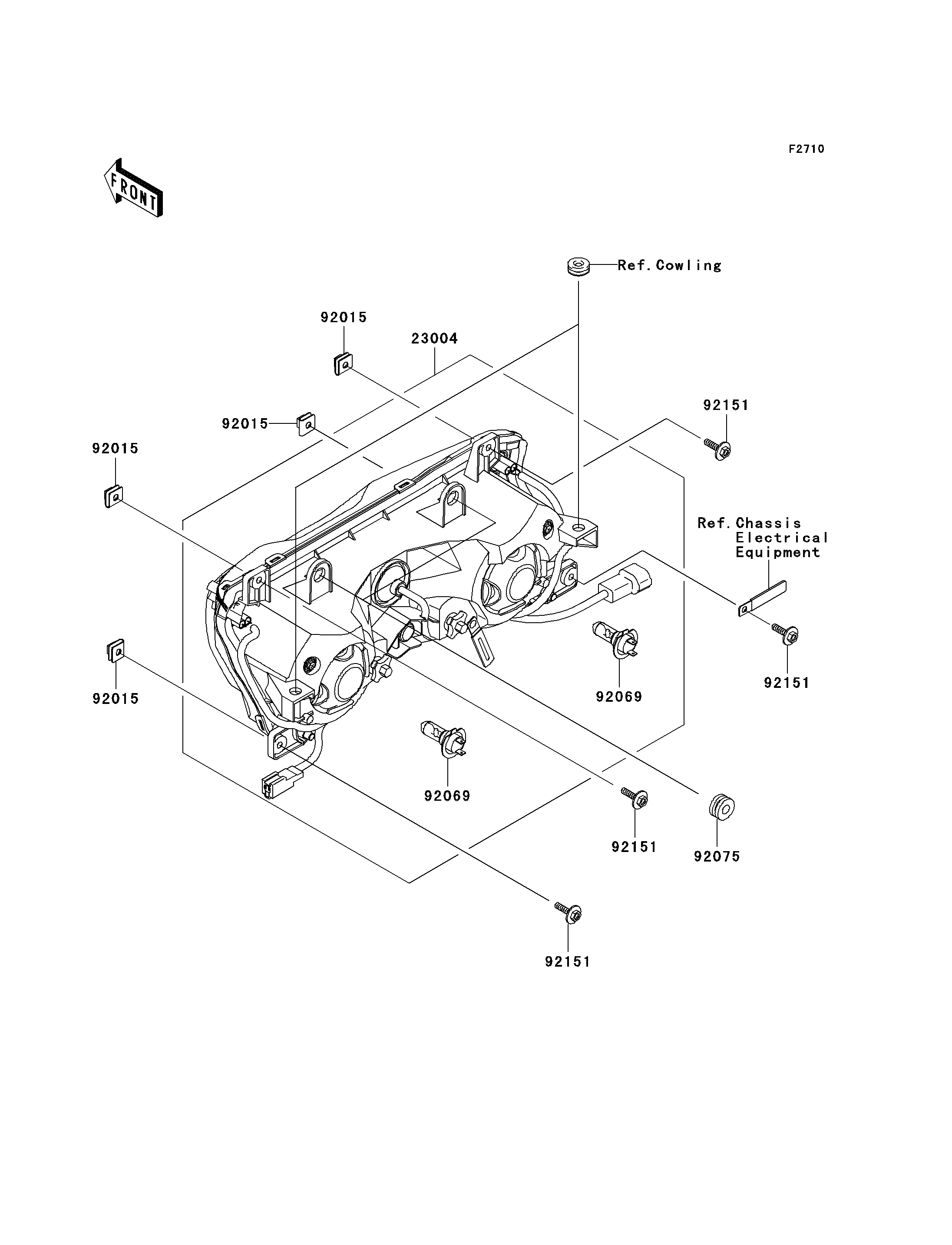

23004
92015
92015
92015
92015
92069
92069
92075
92151
92151
92151
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-HEAD 23004 23004-1510 1
NUT,6MM 92015 92015-1094 4
BULB,12V 55W,H7 92069 92069-1126 2
DAMPER 92075 92075-1690 2
BOLT,6X25 92151 92151-1241 4
