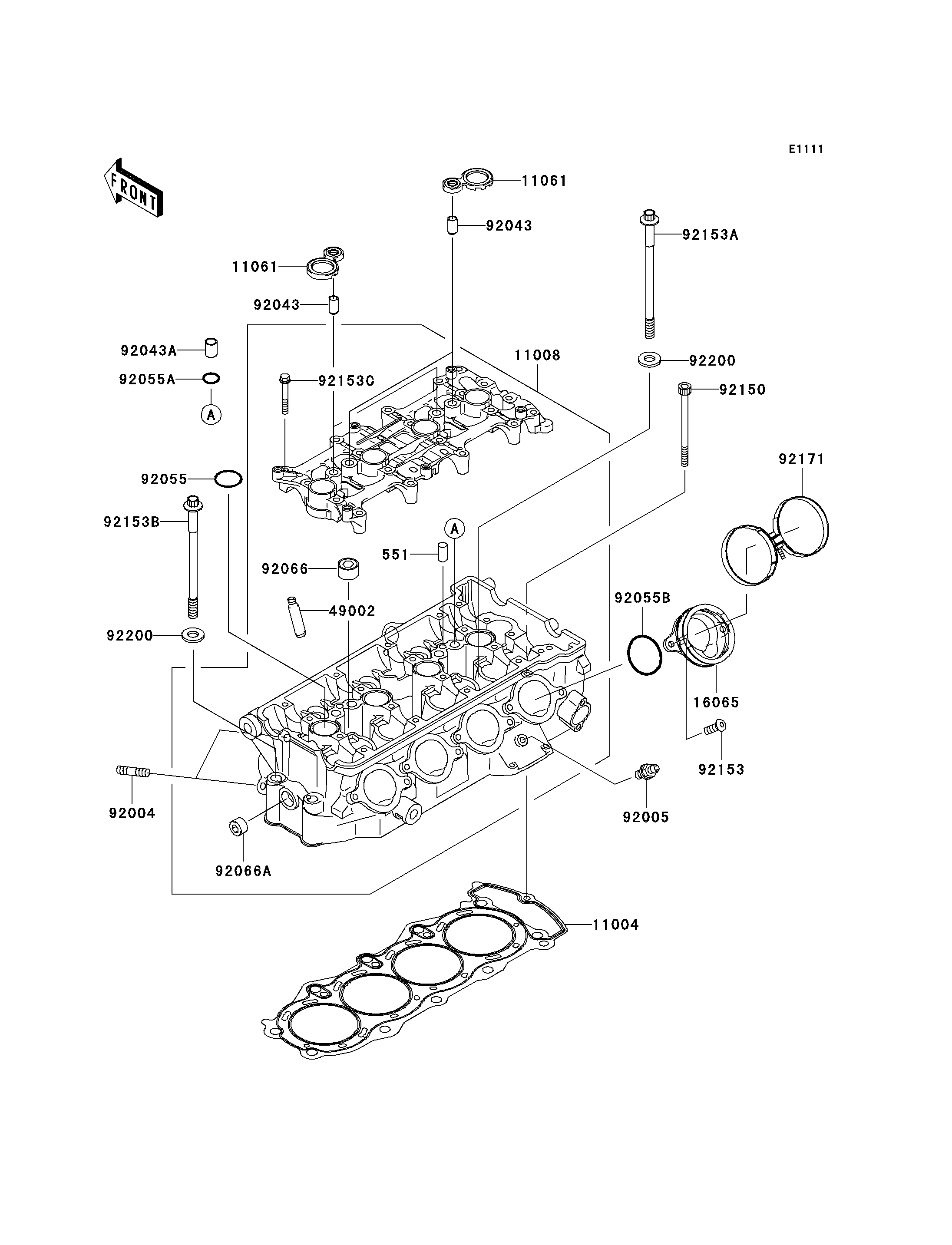

2004 Ninja® ZX™-6RR - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
551
11004
11008
11061
11061
16065
49002
92004
92005
92043
92043
92043A
92055
92055A
92055B
92066
92066A
92150
92153
92153A
92153B
92153C
92171
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-DOWEL,6X12 551 551A0612 2
GASKET-HEAD 11004 11004-0017 1
HEAD-COMP-CYLINDER 11008 11008-0024 1
GASKET,BEARING CAP 11061 11061-0042 4
HOLDER-CARBURETOR 16065 16065-0015 4
GUIDE-VALVE 49002 49002-1152 AR (OPTION)
STUD,8X22 92004 92004-1249 8
FITTING 92005 92005-1273 1
PIN,6.2X8X14 92043 92043-1263 4
PIN,8.2X10X14 92043A 92043-1264 4
RING-O,25.5X2 92055 92055-1403 4
RING-O,11.5X1.5 92055A 92055-1469 4
RING-O,42X1.9 92055B 92055-1536 4
PLUG,PT1/2X12.5 92066 92066-0002 4
PLUG,PT3/8X10 92066A 92066-1420 1
BOLT,SOCKET,6X92 92150 92150-1928 1
BOLT,6X14 92153 92153-0406 8
BOLT,9X146 92153A 92153-1250 8
BOLT,9X138 92153B 92153-1251 2
BOLT,6X40 92153C 92153-1258 20
CLAMP,CARBURETOR HOLDER 92171 92171-0173 2
WASHER,9.2X19X2.3 92200 92200-1673 10
