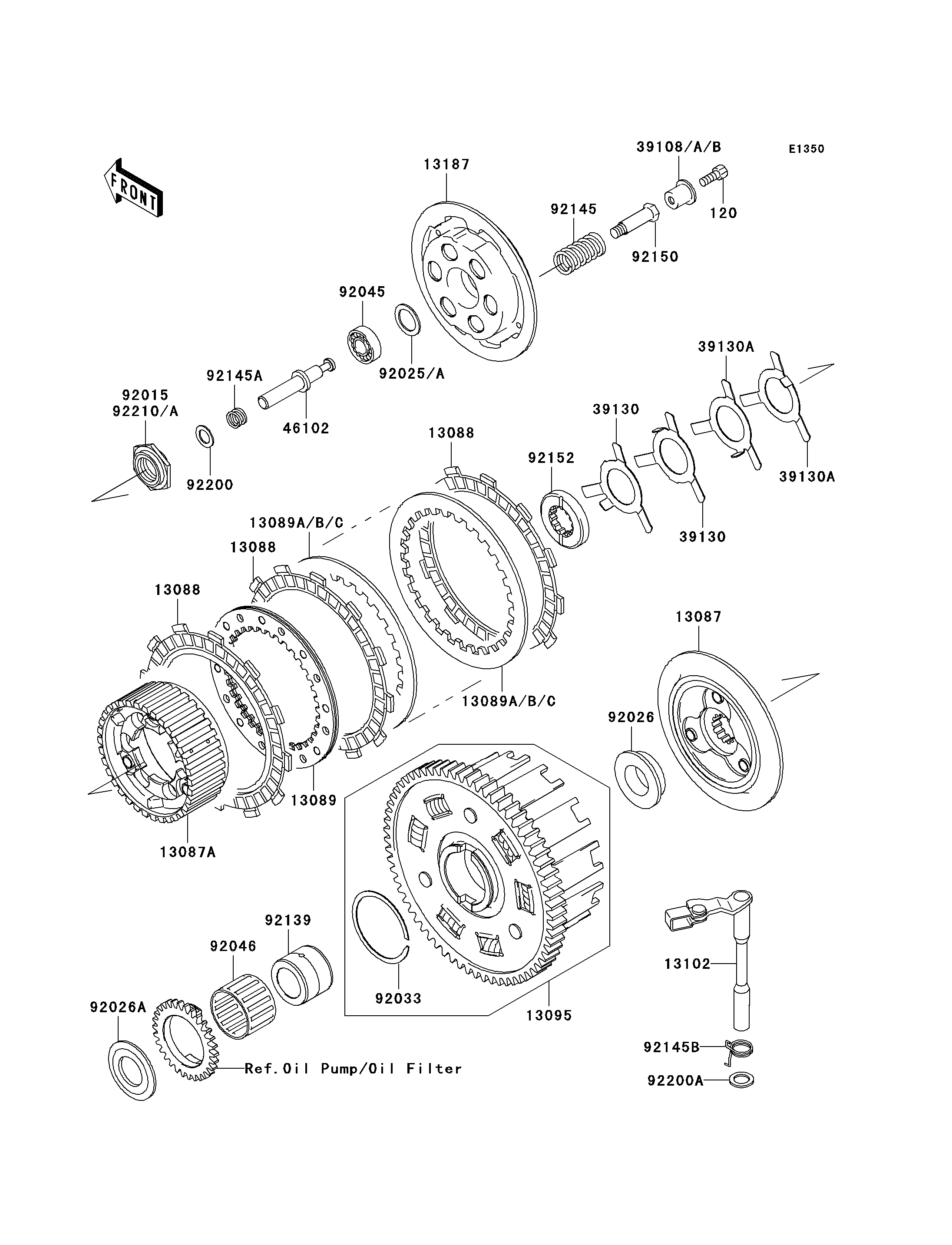

2004 Ninja® ZX™-6RR - Clutch

DOWNLOAD PDF
SELECT A NEW PART
120
13087
13087A
13088
13088
13088
13089
13089A
13089A
13089B
13089B
13089C
13089C
13095
13102
13187
39108
39108A
39108B
39130
39130
39130A
39130A
46102
92015
92025
92025A
92026
92026A
92033
92045
92046
92139
92145
92145A
92145B
92150
92152
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120P0616 6
HUB-CLUTCH 13087 13087-0001 1
HUB-CLUTCH 13087A 13087-0002 1
PLATE-FRICTION 13088 13088-1124 8
PLATE-CLUTCH 13089 13089-0003 1
PLATE-CLUTCH,T=1.6 13089A 13089-013 1
PLATE-CLUTCH,T=2.0 13089B 13089-1073 5
PLATE-CLUTCH,T=2.3 13089C 13089-1084 AR
HOUSING-COMP-CLUTCH 13095 13095-0017 1
RELEASE-COMP-CLUTCH 13102 13102-1159 1
PLATE-CLUTCH OPERATING 13187 13187-0001 1
RETAINER-SPRING,14MM 39108 39108-0001 6 (OPTION)
RETAINER-SPRING,13MM 39108A 39108-0003 6 (OPTION)
RETAINER-SPRING,15MM 39108B 39108-1152 6
SPRING-LEAF 39130 39130-1078 2
SPRING-LEAF 39130A 39130-1079 2
ROD 46102 46102-1449 1
NUT,2 LEAF-SPRING 92015 92015-1929 1 (OPTION)
SHIM,T=0.6 92025 92025-1755 1
SHIM,T=0.4 92025A 92025-1756 1 (OPTION)
SPACER 92026 92026-0022 1
SPACER 92026A 92026-1356 1
RING-SNAP 92033 92033-0021 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
BEARING-NEEDLE,K38X43X28.8X 92046 92046-1263 1
BUSHING 92139 92139-0067 1
SPRING 92145 92145-0023 6
SPRING,ROD 92145A 92145-0044 1
SPRING 92145B 92145-1339 1
BOLT,CLUTCH 92150 92150-1477 6
COLLAR 92152 92152-1277 1
WASHER,11.2X18X0.5 92200 92200-1423 1
WASHER,12X18.5X0.5 92200A 92200-1487 1
NUT 92210 92210-0053 1
NUT,3 LEAF-SPRING 92210A 92210-0088 1 (OPTION)
