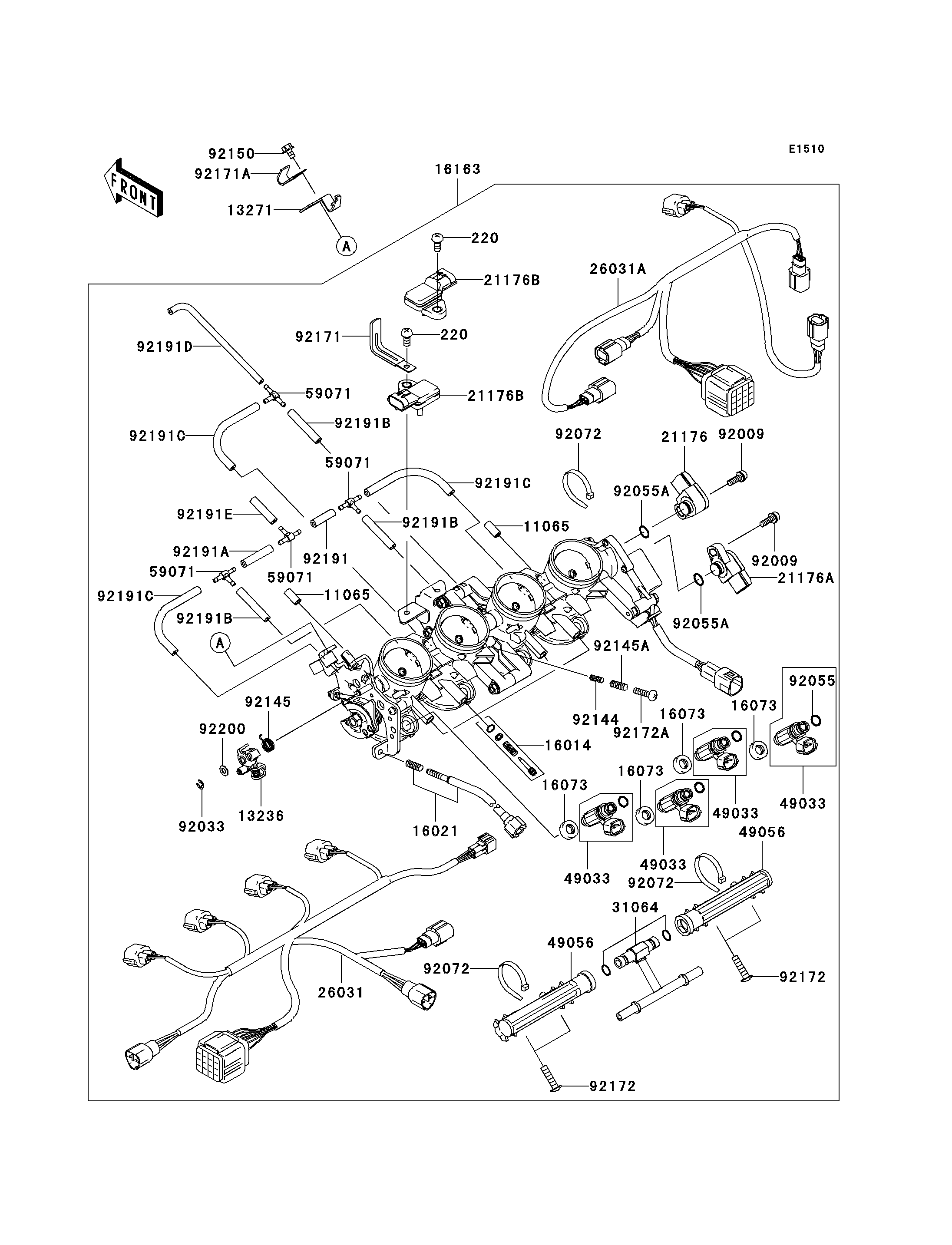

2004 Ninja® ZX™-6RR - Throttle

DOWNLOAD PDF
SELECT A NEW PART
220
220
11065
11065
13236
13271
16014
16021
16073
16073
16073
16073
16163
21176
21176A
21176B
21176B
26031
26031A
31064
49033
49033
49033
49033
49056
49056
59071
59071
59071
59071
92009
92009
92033
92055
92055A
92055A
92072
92072
92072
92144
92145
92145A
92150
92171
92171A
92172
92172
92172A
92191
92191A
92191B
92191B
92191B
92191C
92191C
92191C
92191D
92191E
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X12 220 220C0612 2
CAP 11065 11065-0018 2
LEVER-COMP,FAST IDLE 13236 13236-0014 1
PLATE 13271 13271-0098 1
SCREW-PILOT AIR 16014 16014-0002 4
SCREW-THROTTLE STOP 16021 16021-0001 1
INSULATOR 16073 16073-3707 4
THROTTLE-ASSY 16163 16163-0036 1
SENSOR,TPS 21176 21176-0001 1
SENSOR,TPS 21176A 21176-0002 1
SENSOR 21176B 21176-1118 2
HARNESS 26031 26031-0146 1
HARNESS 26031A 26031-1081 1
PIPE-COMP,FUEL 31064 31064-0018 1
NOZZLE-INJECTION 49033 49033-0006 4
PIPE-INJECTION 49056 49056-0001 2
JOINT,3WAY,T 59071 59071-3752 4
SCREW,THROTTLE SENSOR 92009 92009-1981 2
RING-SNAP,FAST IDLE 92033 92033-0004 1
RING-O,INJECTION NOZZLE 92055 92055-1622 4
RING-O 92055A 92055-1671 2
BAND,SUB-HARNESS 92072 92072-0012 3
SPRING,THROTTLE ADJUST LWR 92144 92144-1451 1
SPRING,FAST IDLE 92145 92145-0054 1
SPRING,THROTTLE SYNCRO 92145A 92145-0055 1
BOLT,5X8 92150 92150-1406 1
CLAMP 92171 92171-0112 1
CLAMP 92171A 92171-1539 1
SCREW,PIPE INJECTION 92172 92172-0064 4
SCREW,THROTTLE SYNCRO 92172A 92172-0065 1
TUBE,3X7X25 92191 92191-0020 1
TUBE,3X7X35 92191A 92191-0021 1
TUBE,3X7X40 92191B 92191-0022 3
TUBE,3X7X100 92191C 92191-0023 3
TUBE,3X7X153 92191D 92191-0024 1
TUBE,3X7X30 92191E 92191-0025 1
WASHER,FAST IDLE 92200 92200-0033 1
