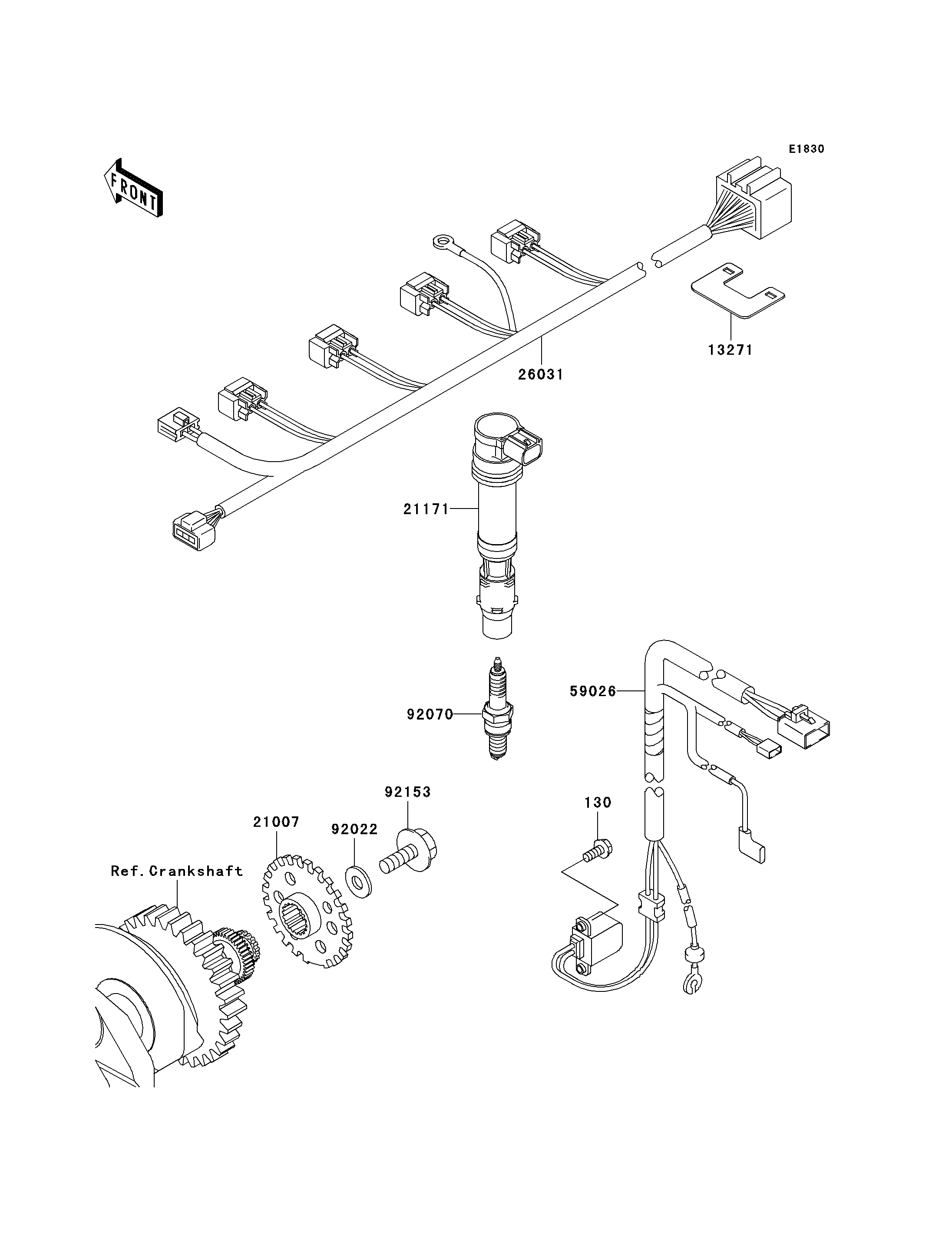

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 2
PLATE 13271 13271-0055 1
ROTOR,PULSING 21007 21007-0009 1
COIL-ASSY-IGNITION 21171 21171-1282 4
HARNESS 26031 26031-0007 1
COIL-PULSING 59026 59026-1161 1
WASHER,8.2X19X2 92022 92022-1533 1
PLUG-SPARK,CR9E(NGK) 92070 92070-1266 4
BOLT,8X23 92153 92153-0549 1
