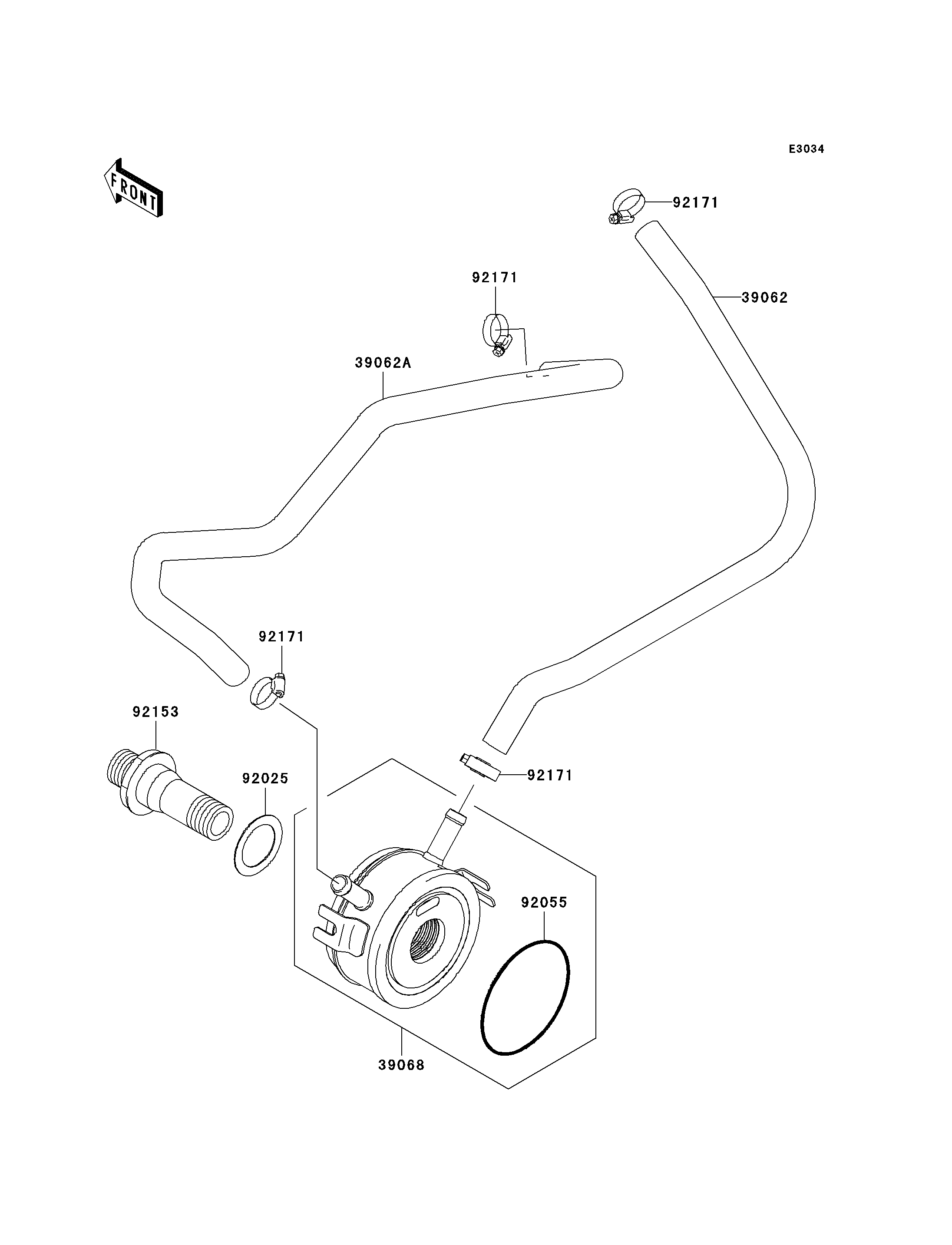

39062
39062A
39068
92025
92055
92153
92171
92171
92171
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOSE-COOLING,COOLER-RADIATOR 39062 39062-0014 1
HOSE-COOLING,COOLER-CYLINDER 39062A 39062-1912 1
COOLER-ASSY-OIL 39068 39068-0006 1
SHIM 92025 92025-1681 1
RING-O,OIL COOLER 92055 92055-1581 1
BOLT,OIL COOLER 92153 92153-0430 1
CLAMP,COOLING HOSE 92171 92171-0142 4
