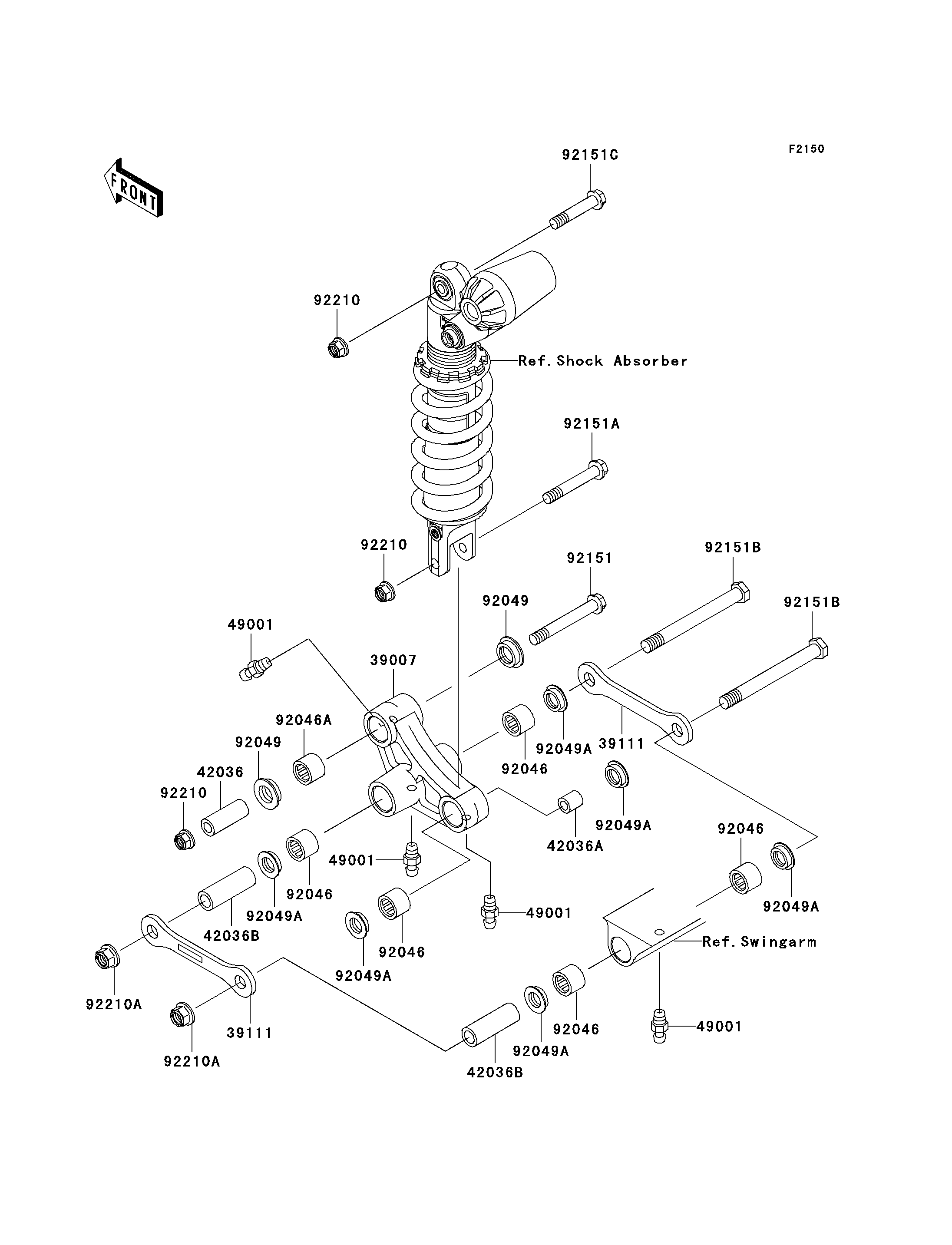

2004 Ninja® ZX™-6RR - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
39111
42036
42036A
42036B
42036B
49001
49001
49001
49001
92046
92046
92046
92046
92046
92046A
92049
92049
92049A
92049A
92049A
92049A
92049A
92049A
92151
92151A
92151B
92151B
92151C
92210
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1287 1
ROD-TIE,SUSPENSION 39111 39111-1163 2
SLEEVE,10.1X17X44.5 42036 42036-1342 1
SLEEVE,10.1X18X32 42036A 42036-1344 1
SLEEVE,12.1X18X90 42036B 42036-1360 2
NIPPLE-GREASE 49001 49001-0001 4
BEARING-NEEDLE,SFYZM182417 92046 92046-1272 5
BEARING-NEEDLE,SFYZM172425 92046A 92046-1273 1
SEAL-OIL,MHA17245.7F 92049 92049-1223 2
SEAL-OIL,KCR MF018N1 92049A 92049-1493 6
BOLT,FLANGED,10X77 92151 92151-1600 1
BOLT,FLANGED,10X62 92151A 92151-1601 1
BOLT,12X117 92151B 92151-1684 2
BOLT,FLANGED,10X51 92151C 92151-1798 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 3
NUT,LOCK,FLANGED,12MM 92210A 92210-1150 2
