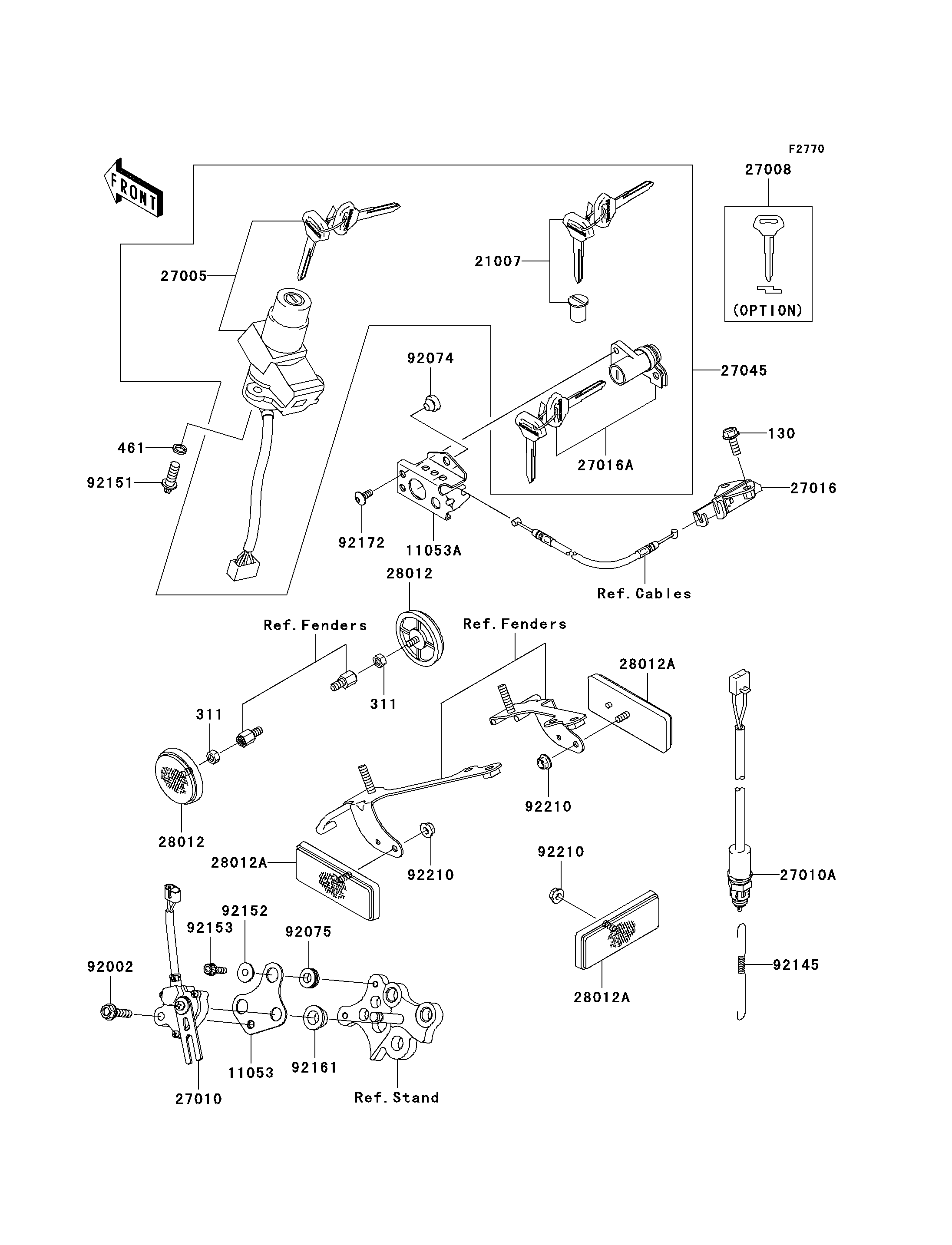

2004 Ninja® ZX™-6RR - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
311
311
461
11053
11053A
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
28012
28012A
28012A
28012A
92002
92074
92075
92145
92151
92152
92153
92161
92172
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0616 2
NUT-HEX 311 311L0500 2
WASHER-SPRING 461 461L0600 2
BRACKET,SIDE STAND SWITCH 11053 11053-0056 1
BRACKET,SEAT LOCK 11053A 11053-1132 1
ROTOR,LOCK,TANK CAP 21007 21007-5042 1
SWITCH-ASSY-IGNITION 27005 27005-5126 1
KEY-LOCK,BLANK 27008 27008-1189 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1463 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5261 1
SWITCH-ASSY 27045 27045-5199 1
REFLECTOR-REFLEX,FR 28012 28012-016 2
REFLECTOR-REFLEX 28012A 28012-1077 3
BOLT,6X25 92002 92002-1582 1
PLUG,7X2 92074 92074-028 1
DAMPER 92075 92075-161 2
SPRING,REAR BRAKE SWITCH 92145 92145-0185 1
BOLT,TORX,6X16 92151 92151-1911 2
COLLAR 92152 92152-0017 2
BOLT,SOCKET,5X18 92153 92153-0414 2
DAMPER 92161 92161-0016 1
SCREW,5X12 92172 92172-1084 2
NUT,FLANGED,5MM 92210 92210-0007 3
