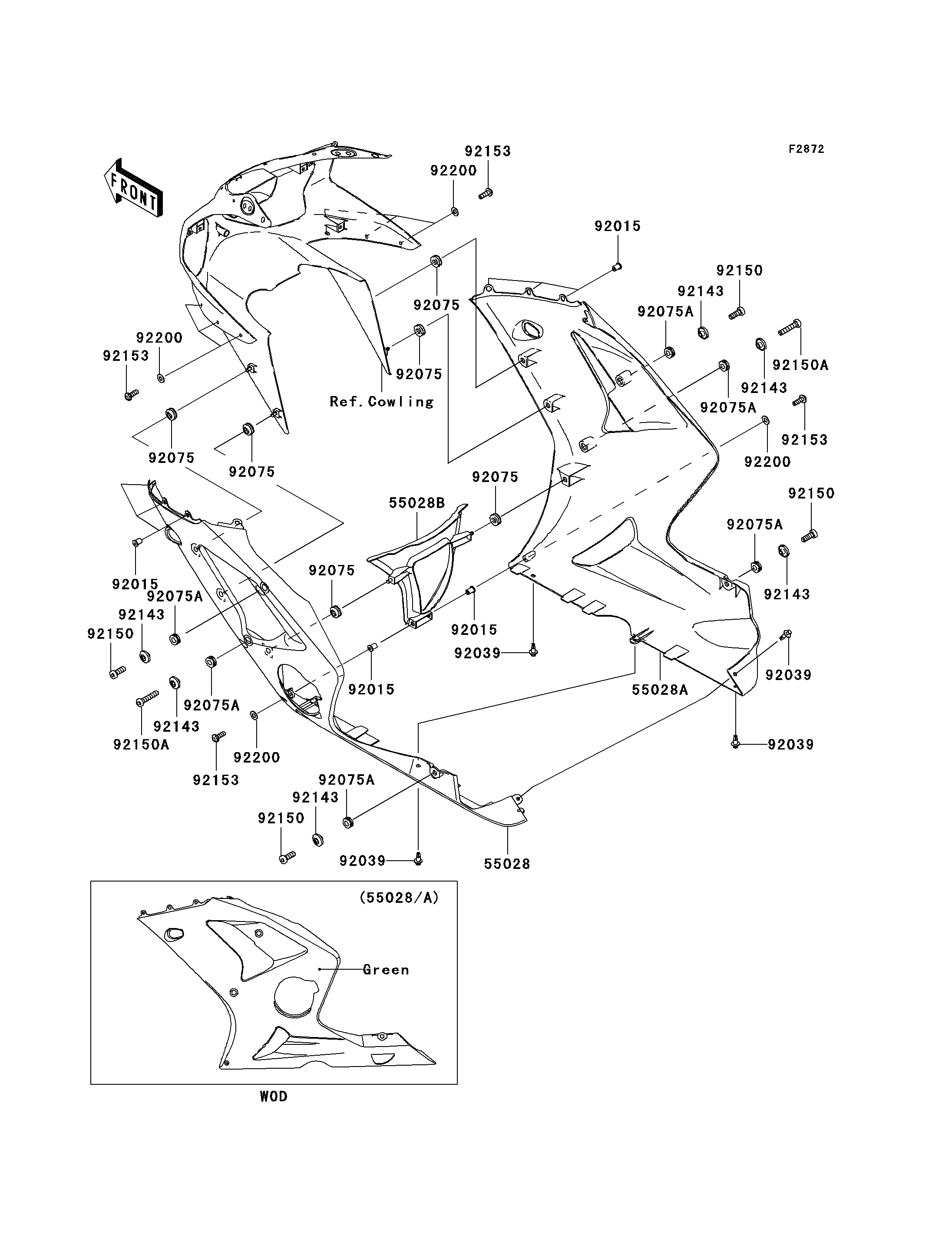

Parts Diagrams |
55028
55028A
55028B
92015
92015
92015
92015
92039
92039
92039
92039
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150A
92150A
92153
92153
92153
92153
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COWLING,LWR,LH,L.GREEN | 55028 | 55028-1454-7F | 1 | ||
| COWLING,LWR,RH,L.GREEN | 55028A | 55028-1455-7F | 1 | ||
| COWLING,FR | 55028B | 55028-1456 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 8 | ||
| RIVET | 92039 | 92039-1289 | 4 | ||
| DAMPER | 92075 | 92075-1067 | 6 | ||
| DAMPER | 92075A | 92075-1634 | 6 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 4 | ||
| BOLT,SOCKET,6X30 | 92150A | 92150-1554 | 2 | ||
| BOLT,SOCKET,5X16 | 92153 | 92153-1244 | 8 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 8 |
