14037
16181
39045
92071
92093
92153
92153
92153
92153
92172
92172
92210
92210
92210
92210

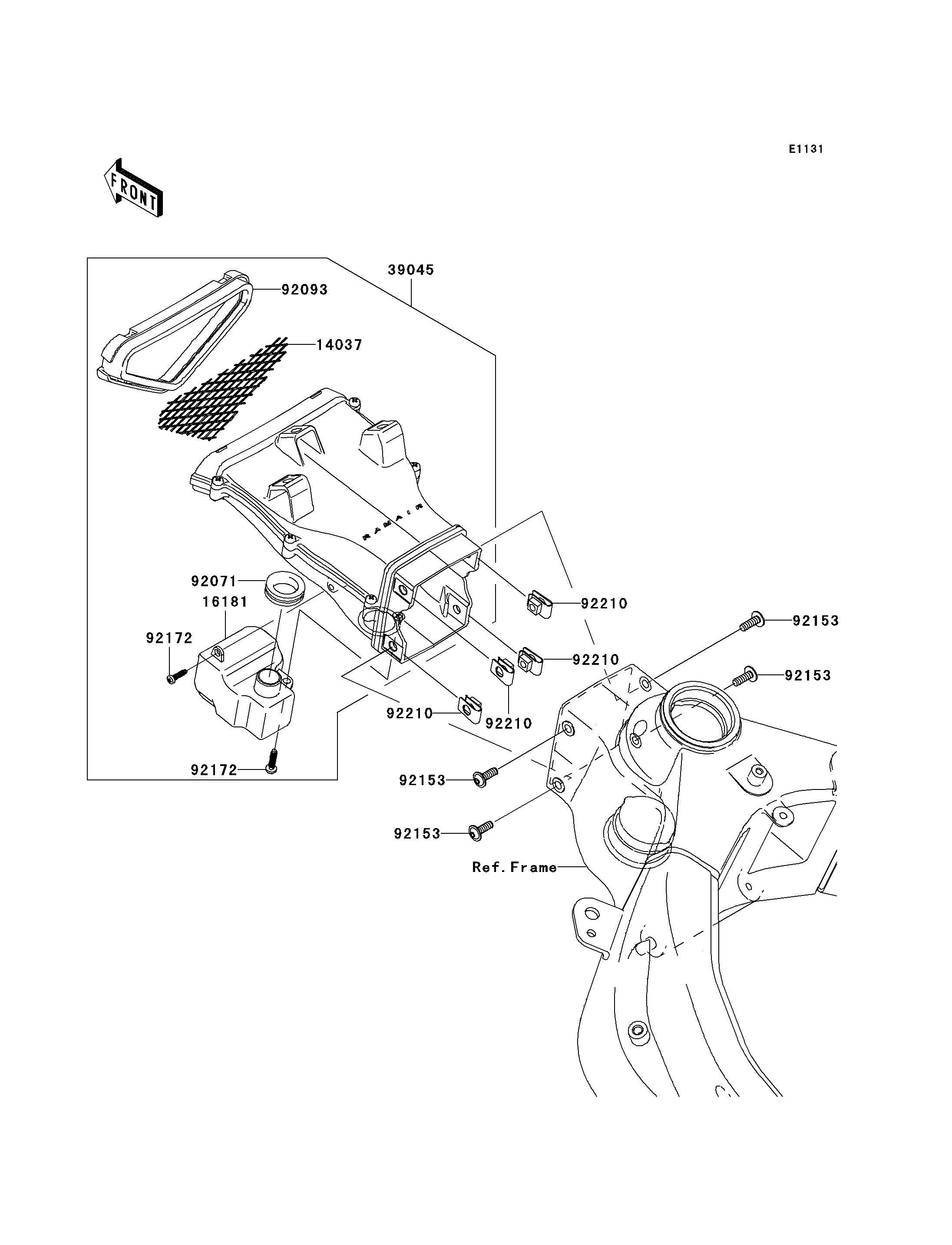

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREEN,INTAKE 14037 14037-0026 1
TANK-RESONATOR 16181 16181-0002 1
DUCT-ASSY,RAM 39045 39045-0011 1
GROMMET 92071 92071-3704 1
SEAL,RAMDUCT 92093 92093-0030 1
BOLT,6X18 92153 92153-0875 4
SCREW,TAPPING,5X20 92172 92172-0009 2
NUT 92210 92210-0130 4
