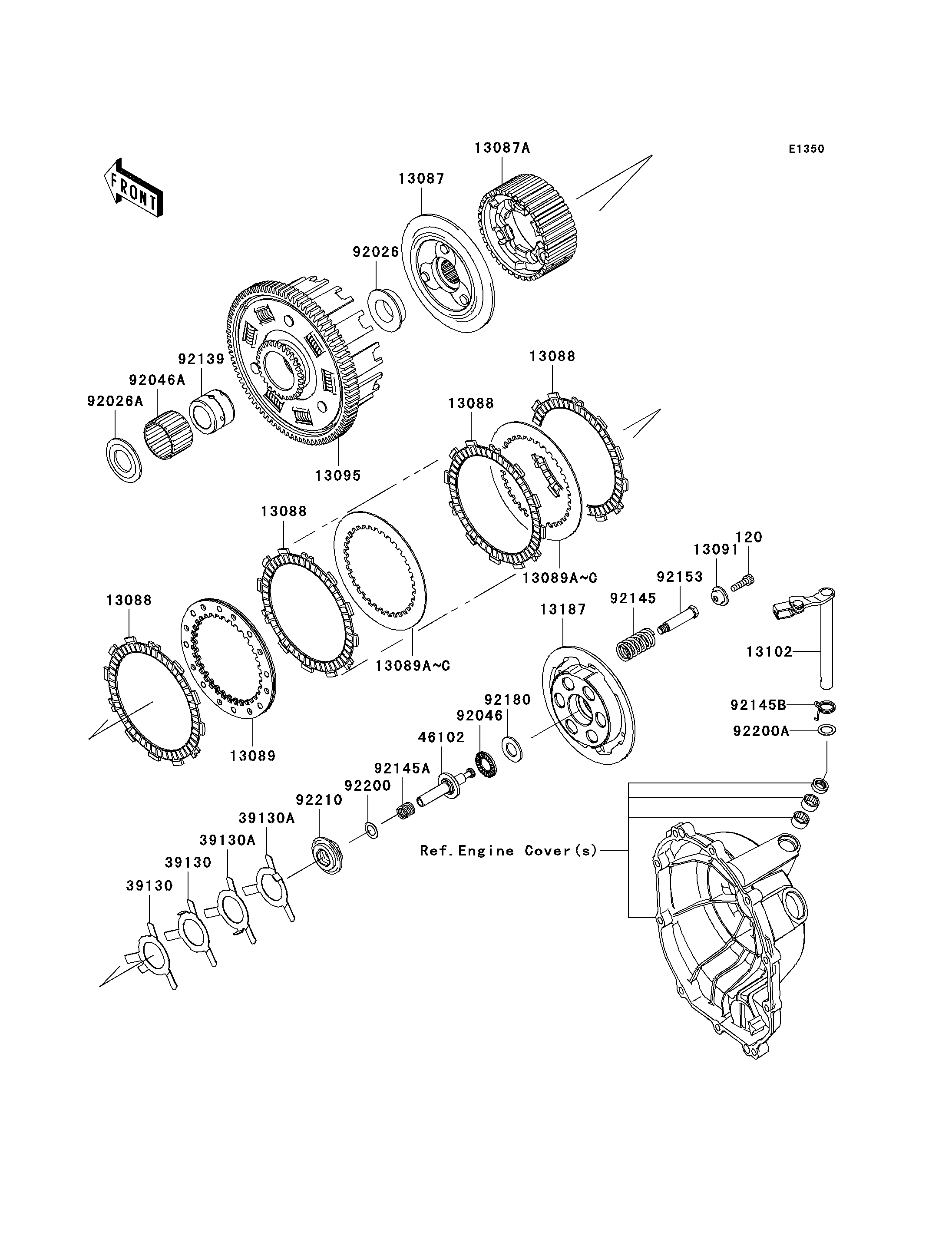

2005 Ninja® ZX™-6RR - Clutch

DOWNLOAD PDF
SELECT A NEW PART
120
13087
13087A
13088
13088
13088
13088
13089
13089A
13089A
13089B
13089B
13089C
13089C
13091
13095
13102
13187
39130
39130
39130A
39130A
46102
92026
92026A
92046
92046A
92139
92145
92145A
92145B
92153
92180
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120Q0620 6
HUB-CLUTCH 13087 13087-0019 1
HUB-CLUTCH 13087A 13087-0020 1
PLATE-FRICTION 13088 13088-1124 8
PLATE-CLUTCH,SPG COMP 13089 13089-0003 1
PLATE-CLUTCH,T=1.6 13089A 13089-0005 AR
PLATE-CLUTCH,T=2.0 13089B 13089-0007 AR
PLATE-CLUTCH,T=2.3 13089C 13089-0008 AR
HOLDER,CLUTCH SPRING 13091 13091-1041 6
HOUSING-COMP-CLUTCH 13095 13095-0042 1
RELEASE-COMP-CLUTCH 13102 13102-0015 1
PLATE-CLUTCH OPERATING 13187 13187-0008 1
SPRING-LEAF 39130 39130-1078 2
SPRING-LEAF 39130A 39130-1079 2
ROD 46102 46102-0051 1
SPACER 92026 92026-0022 1
SPACER 92026A 92026-1356 1
BEARING-NEEDLE,AXK1102 92046 92046-1052 1
BEARING-NEEDLE,K38X43X28.8X 92046A 92046-1263 1
BUSHING,25X38X29.05 92139 92139-0067 1
SPRING 92145 92145-0293 6
SPRING,ROD 92145A 92145-1159 1
SPRING 92145B 92145-1339 1
BOLT 92153 92153-0797 6
SHIM,15.3X27.5X2.0 92180 92180-0149 1
WASHER,11.2X18X0.5 92200 92200-1423 1
WASHER,12X18.5X0.5 92200A 92200-1487 1
NUT 92210 92210-0152 1
