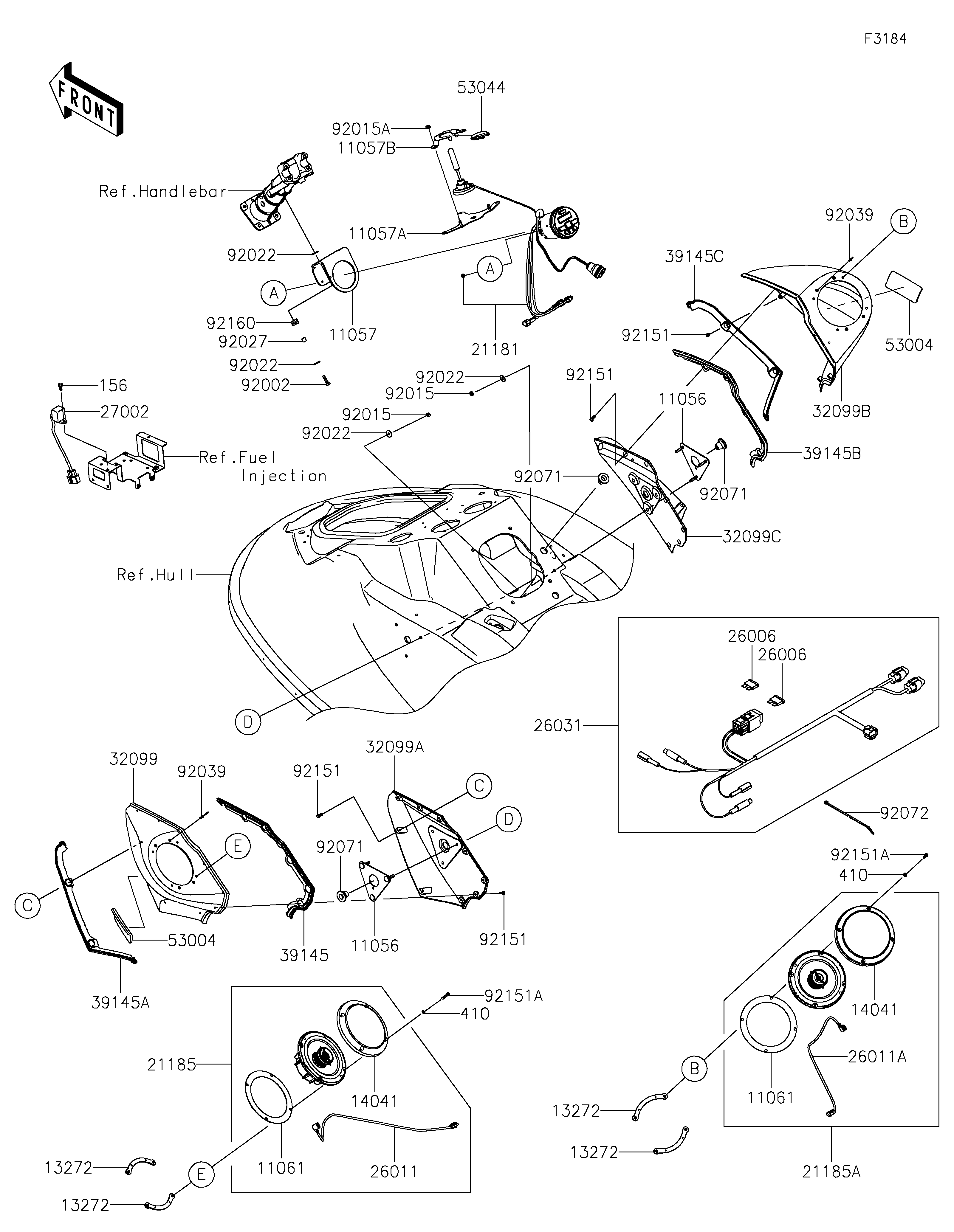

2024 JET SKI® STX® 160LX - Other

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11057
11057A
11057B
11061
11061
13272
13272
13272
13272
14041
14041
21181
21185
21185A
26006
26006
26011
26011A
26031
27002
32099
32099A
32099B
32099C
39145
39145A
39145B
39145C
53004
53004
53044
92002
92015
92015
92015A
92022
92022
92022
92022
92027
92039
92039
92071
92071
92071
92072
92151
92151
92151
92151
92151A
92151A
92160
156
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SPEAKER 11056 11056-2493 2
BRACKET,AMP 11057 11057-2591 1
BRACKET 11057A 11057-4154 1
BRACKET 11057B 11057-4155 1
GASKET 11061 11061-0901 2
PLATE,SPEAKER 13272 13272-2961 4
COVER-COMP 14041 14041-0617 2
AMPLIFIER 21181 21181-0024 1
SPEAKER,LH 21185 21185-0012 1
SPEAKER,RH 21185A 21185-0013 1
FUSE,MINI BLADE,10A,RED 26006 26006-0009 2
WIRE-LEAD,YELLOW 26011 26011-0849 1
WIRE-LEAD,L.GRAY 26011A 26011-0850 1
HARNESS,AUDIO 26031 26031-2617 1
RELAY-ASSY 27002 27002-3703 1
CASE,SPEAKER,OUTER,LH,S.BLACK 32099 32099-0801-839 1
CASE,SPEAKER,INNER,LH,S.BLACK 32099A 32099-0802-839 1
CASE,SPEAKER,OUTER,RH,S.BLACK 32099B 32099-0803-839 1
CASE,SPEAKER,INNER,RH,S.BLACK 32099C 32099-0804-839 1
TRIM-SEAL,UPP 39145 39145-0721 1
TRIM-SEAL,LWR 39145A 39145-0722 1
TRIM-SEAL,UPP 39145B 39145-0723 1
TRIM-SEAL,LWR 39145C 39145-0724 1
MAT 53004 53004-0614 2
TRIM,L=120 53044 53044-1171 1
BOLT,6X25 92002 92002-3714 2
NUT,LOCK,6MM 92015 92015-3766 6
NUT,6MM 92015A 92015-3767 2
WASHER,6.5X20X1.5 92022 92022-3710 10
COLLAR,6.2X10X10 92027 92027-3705 2
RIVET,3.2X8 92039 92039-3763 8
GROMMET 92071 92071-3826 3
BAND,L=372.24 92072 92072-3883 1
BOLT,SOCKET,5X14 92151 92151-1581 18
BOLT,SOCKET,5X25 92151A 92151-3709 8
DAMPER,10X20X12 92160 92160-1167 2
BOLT-WP,6X16 156 156R0616 1
W-PLAIN-S,5MM 410 410S0500 8
