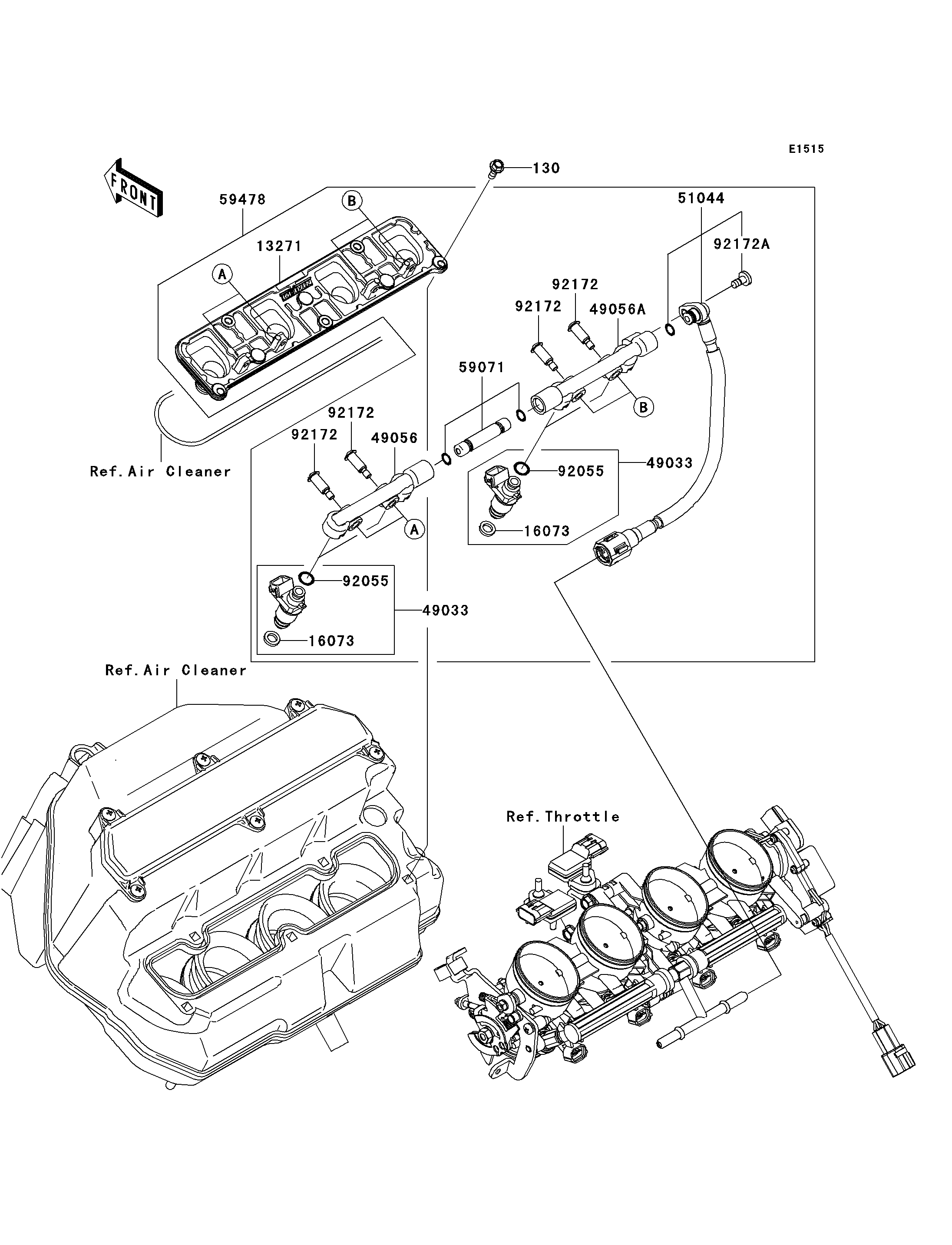

2005 Ninja® ZX™-6RR - Top Feed Injecter
130
13271
16073
16073
49033
49033
49056
49056A
51044
59071
59478
92055
92055
92172
92172
92172
92172
92172A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,M5X14 | 130 | 130J0514 | 5 | ||
PLATE | 13271 | 13271-0418 | 1 | ||
INSULATOR | 16073 | 16073-0010 | 4 | ||
NOZZLE-INJECTION,SEAL&RING SET | 49033 | 49033-0009 | 4 | ||
PIPE-INJECTION | 49056 | 49056-0009 | 1 | ||
PIPE-INJECTION | 49056A | 49056-0010 | 1 | ||
TUBE-ASSY | 51044 | 51044-0020 | 1 | ||
JOINT | 59071 | 59071-0030 | 1 | ||
NOZZLE-ASSY | 59478 | 59478-0003 | 1 | ||
RING-O | 92055 | 92055-0077 | 4 | ||
SCREW,PIPE INJECTION | 92172 | 92172-0064 | 4 | ||
SCREW | 92172A | 92172-0204 | 1 |
BOLT-FLANGED,M5X14 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INSULATOR | |
REF # | 16073 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NOZZLE-INJECTION,SEAL&RING SET | |
REF # | 49033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIPE-INJECTION | |
REF # | 49056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-INJECTION | |
REF # | 49056A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-ASSY | |
REF # | 51044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT | |
REF # | 59071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE-ASSY | |
REF # | 59478 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,PIPE INJECTION | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92172A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
