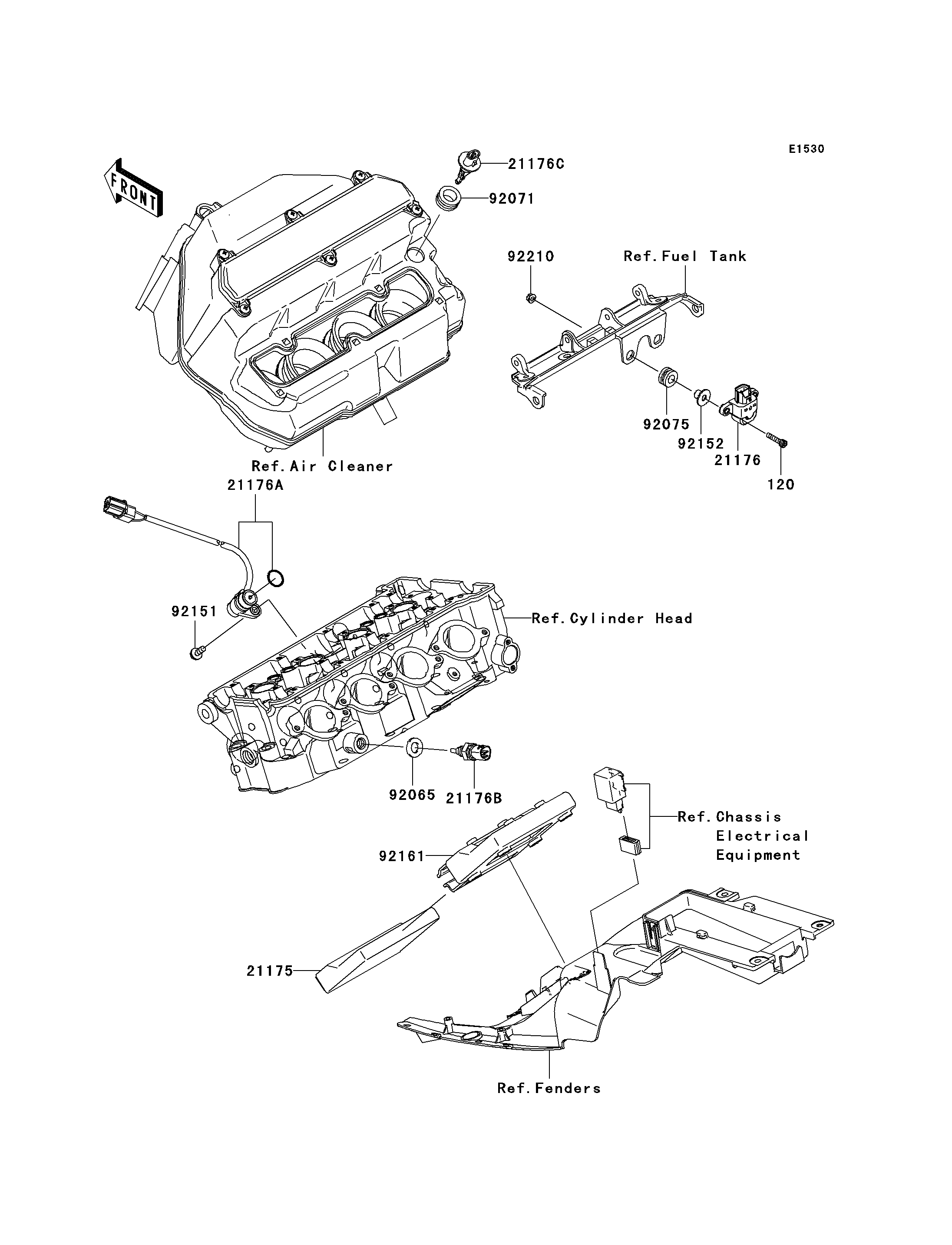

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

120
21175
21176
21176A
21176B
21176C
92065
92071
92075
92151
92152
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,M5X22 120 120W0522 2
CONTROL UNIT-ELECTRONIC 21175 21175-0066 1
SENSOR,VEHICLE-DOWN 21176 21176-0026 1
SENSOR,CAM 21176A 21176-0034 1
SENSOR,WATER TEMP 21176B 21176-1120 1
SENSOR,AIR TEMP 21176C 21176-2106 1
GASKET,12X22X2 92065 92065-097 1
GROMMET 92071 92071-2140 1
DAMPER 92075 92075-1912 2
BOLT,6X16 92151 92151-1774 1
COLLAR 92152 92152-0134 2
DAMPER 92161 92161-0179 1
NUT,FLANGED,5MM 92210 92210-0007 2
