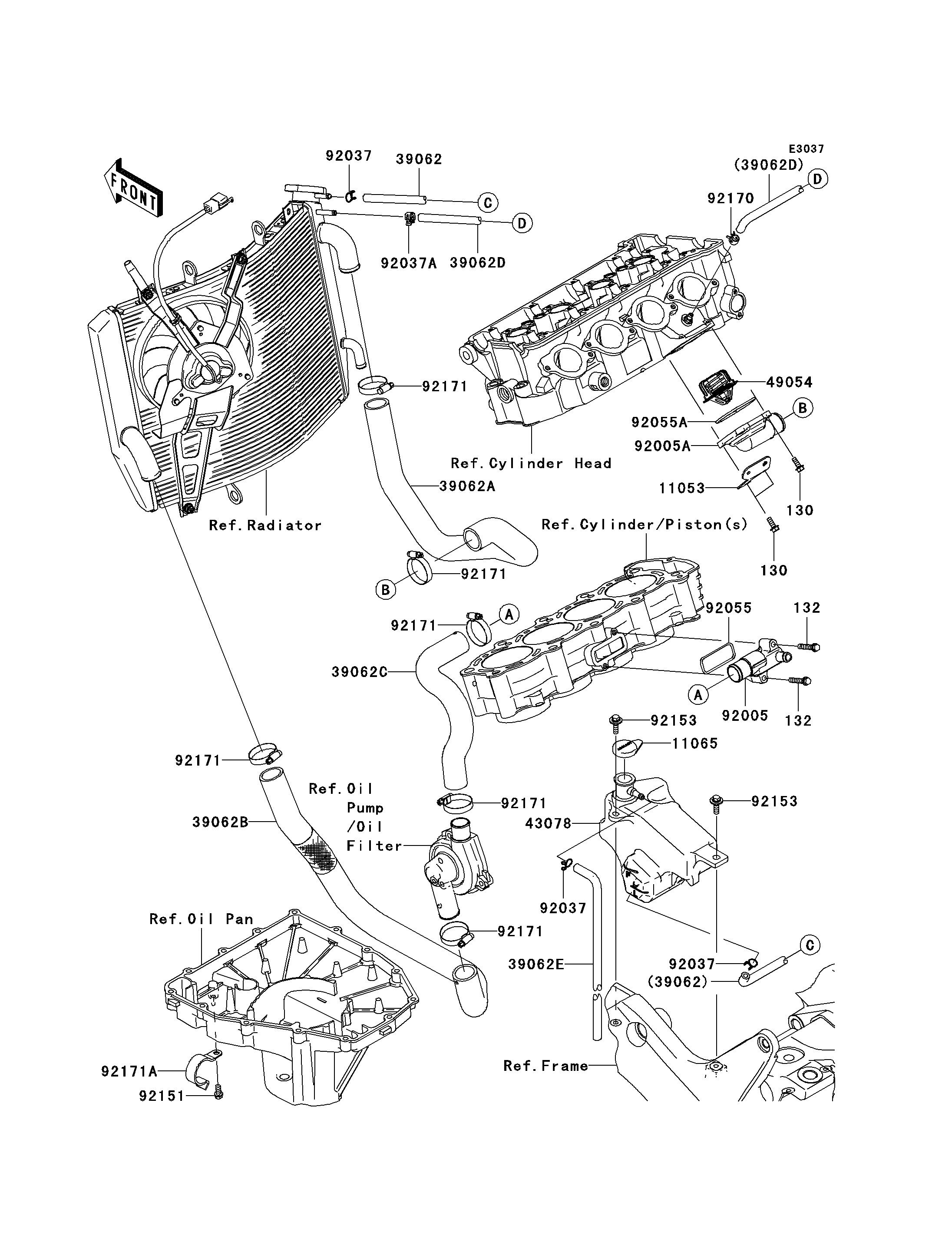

2005 Ninja® ZX™-6RR - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
11053
11065
39062
39062A
39062B
39062C
39062D
39062E
43078
49054
92005
92005A
92037
92037
92037
92037A
92055
92055A
92151
92153
92153
92170
92171
92171
92171
92171
92171
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,M5X14 130 130J0514 4
BOLT-FLANGED-SMALL,M6X30 132 132J0630 2
BRACKET 11053 11053-1712 1
CAP,COOLANT 11065 11065-1093 1
HOSE-COOLING,5.5X10.5X717 39062 39062-0015 1
HOSE-COOLING,THERMO-RAD 39062A 39062-0070 1
HOSE-COOLING,RAD-W.PUMP 39062B 39062-0071 1
HOSE-COOLING,W.PUMP-CYLINDER 39062C 39062-0072 1
HOSE-COOLING,RAD-HEAD 39062D 39062-0078 1
HOSE-COOLING,5.5X10.5X550 39062E 39062-1208 1
RESERVOIR 43078 43078-0022 1
THERMOSTAT 49054 49054-1067 1
FITTING 92005 92005-0028 1
FITTING,THERMO CAP 92005A 92005-1275 1
CLAMP,TUBE 92037 92037-147 3
CLAMP,TUBE 92037A 92037-1505 1
RING-O 92055 92055-1402 1
RING-O,THERMOSTAT CAP 92055A 92055-1699 1
BOLT,6X12 92151 92151-1133 1
BOLT,6X20 92153 92153-0502 2
CLAMP 92170 92170-1493 1
CLAMP 92171 92171-0179 6
CLAMP 92171A 92171-0421 1
