92015
92015
92152
92152
92152A
92153
92153A
92153B
92153C
92153D
92210
92210
92210A

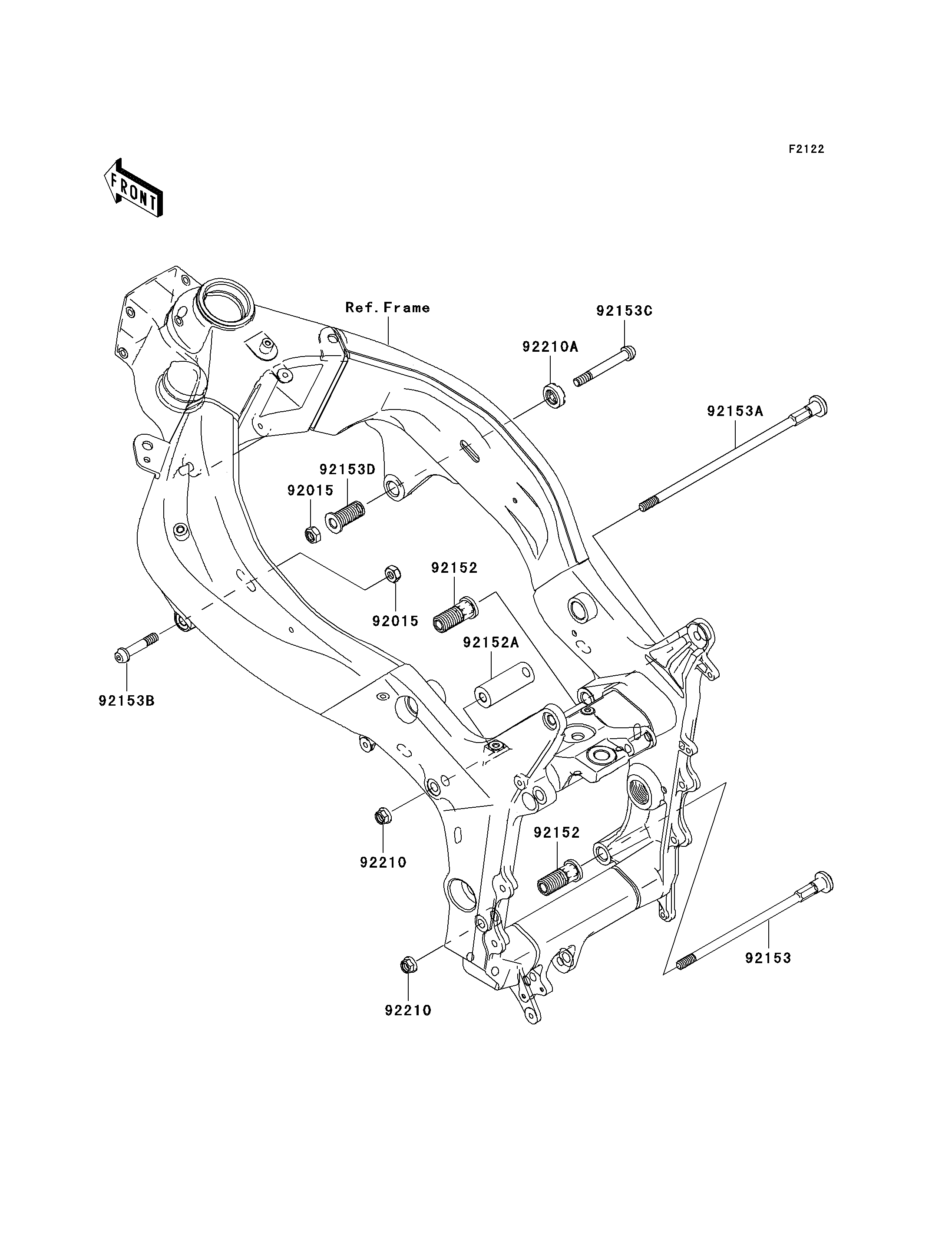

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
COLLAR,ENGINE MOUNT 92152 92152-0076 2
COLLAR,10.5X26X70 92152A 92152-1062 1
BOLT,SOCKET,10X233 92153 92153-0814 1
BOLT,SOCKET,10X285.5 92153A 92153-0815 1
BOLT,SOCKET,10X50 92153B 92153-0858 1
BOLT,SOCKET,10X80 92153C 92153-0924 1
BOLT,ENGINE MOUNT,18MM 92153D 92153-1098 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 2
NUT,CASTLE,18MM 92210A 92210-1390 1
