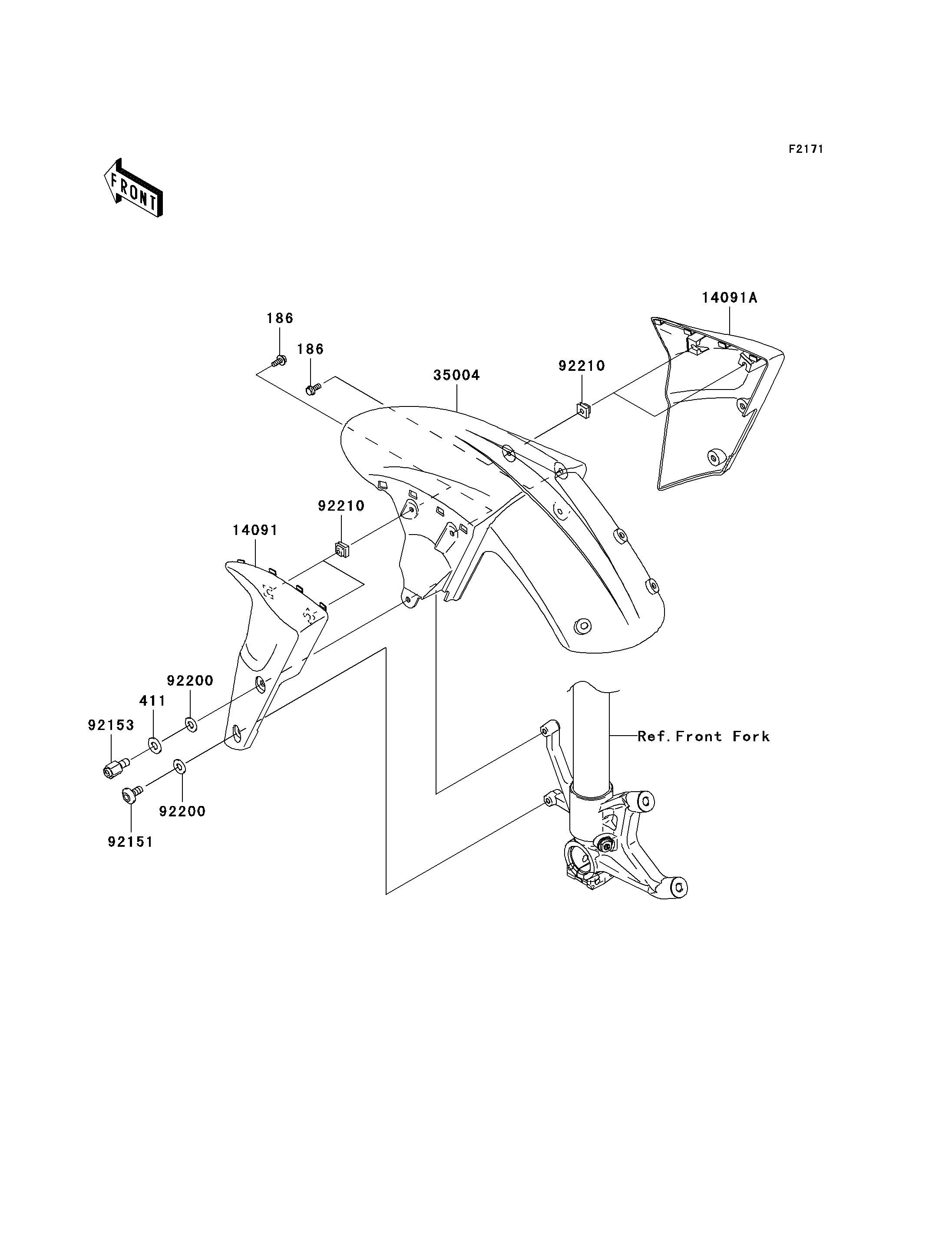

186
186
411
14091
14091A
35004
92151
92153
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WP 186 186L0514 4
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
COVER,FRONT FENDER,LH,F.BLACK 14091 14091-0103-6Z 1
COVER,FRONT FENDER,RH,F.BLACK 14091A 14091-0104-6Z 1
FENDER-FRONT,L.GREEN 35004 35004-0034-777 1
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,6MM 92153 92153-0335 2
WASHER,6.5X14X1 92200 92200-1388 4
NUT,5MM 92210 92210-1266 4
