Parts Diagrams |
224
224
224
224
23007
23007
23007A
23007A
23037
23037A
23037B
23037C
92009
92009
92009
92009
92069
92069
92069
92069
92200
92200
92200
92200
92200A
92200A
92200A
92200A

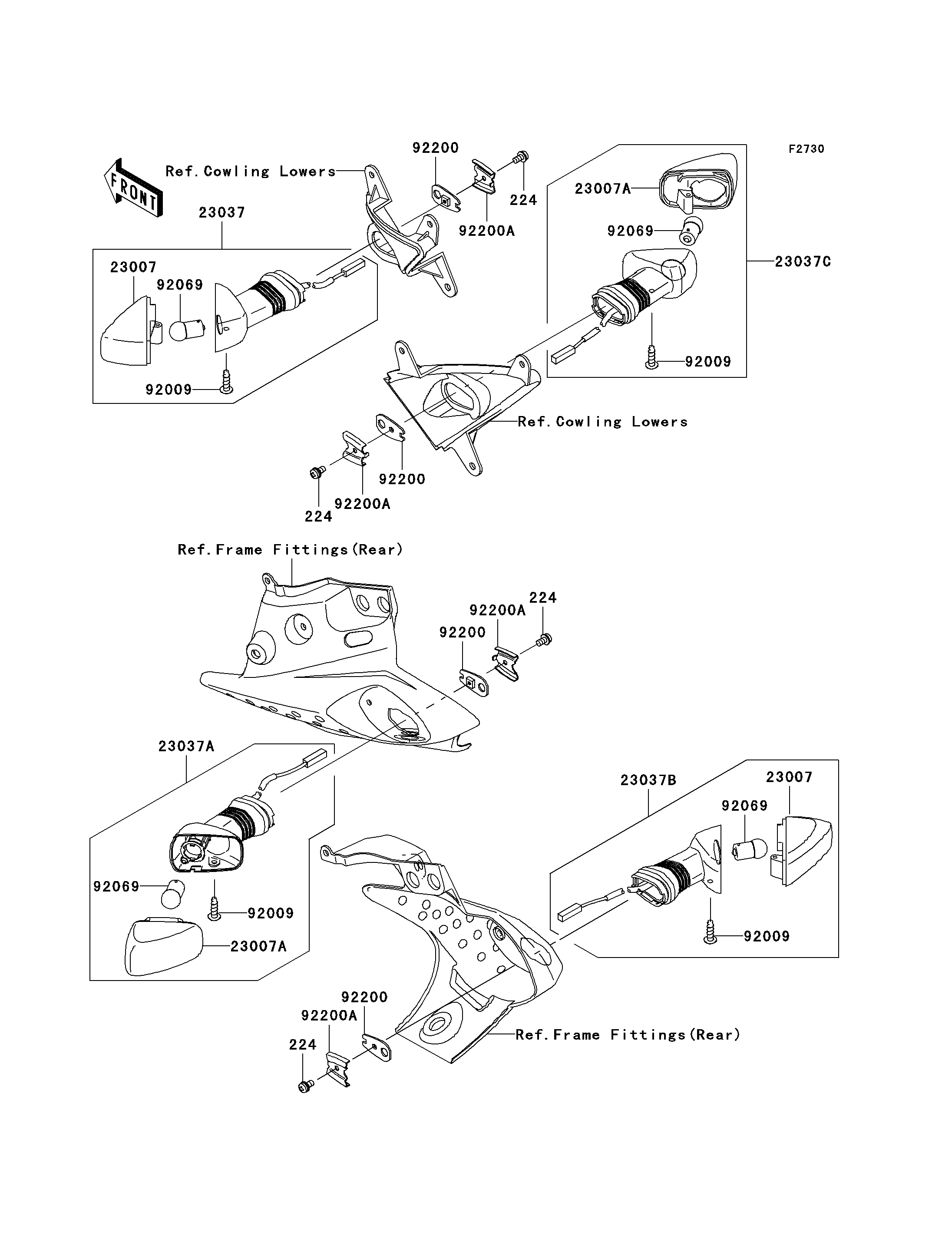

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-WP-CROS,4X8 | 224 | 224C0408 | 4 | ||
LENS-COMP,SIGNAL LAMP | 23007 | 23007-0039 | 2 | ||
LENS-COMP,SIGNAL LAMP | 23007A | 23007-0040 | 2 | ||
LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-0058 | 1 | ||
LAMP-ASSY-SIGNAL,RR,LH | 23037A | 23037-0060 | 1 | ||
LAMP-ASSY-SIGNAL,RR,RH | 23037B | 23037-0061 | 1 | ||
LAMP-ASSY-SIGNAL,FR,RH | 23037C | 23037-0069 | 1 | ||
SCREW,4X16,BLACK | 92009 | 92009-1158 | 4 | ||
BULB,12V 10W | 92069 | 92069-0003 | 4 | ||
WASHER,SIGNAL LAMP | 92200 | 92200-0164 | 4 | ||
WASHER,SIGNAL LAMP | 92200A | 92200-0165 | 4 |
SCREW-PAN-WP-CROS,4X8 | |
REF # | 224 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
LENS-COMP,SIGNAL LAMP | |
REF # | 23007 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LENS-COMP,SIGNAL LAMP | |
REF # | 23007A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,FR,LH | |
REF # | 23037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,RR,LH | |
REF # | 23037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,RR,RH | |
REF # | 23037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,FR,RH | |
REF # | 23037C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,4X16,BLACK | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V 10W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,SIGNAL LAMP | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,SIGNAL LAMP | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
